Model# MVW18CSBWW0

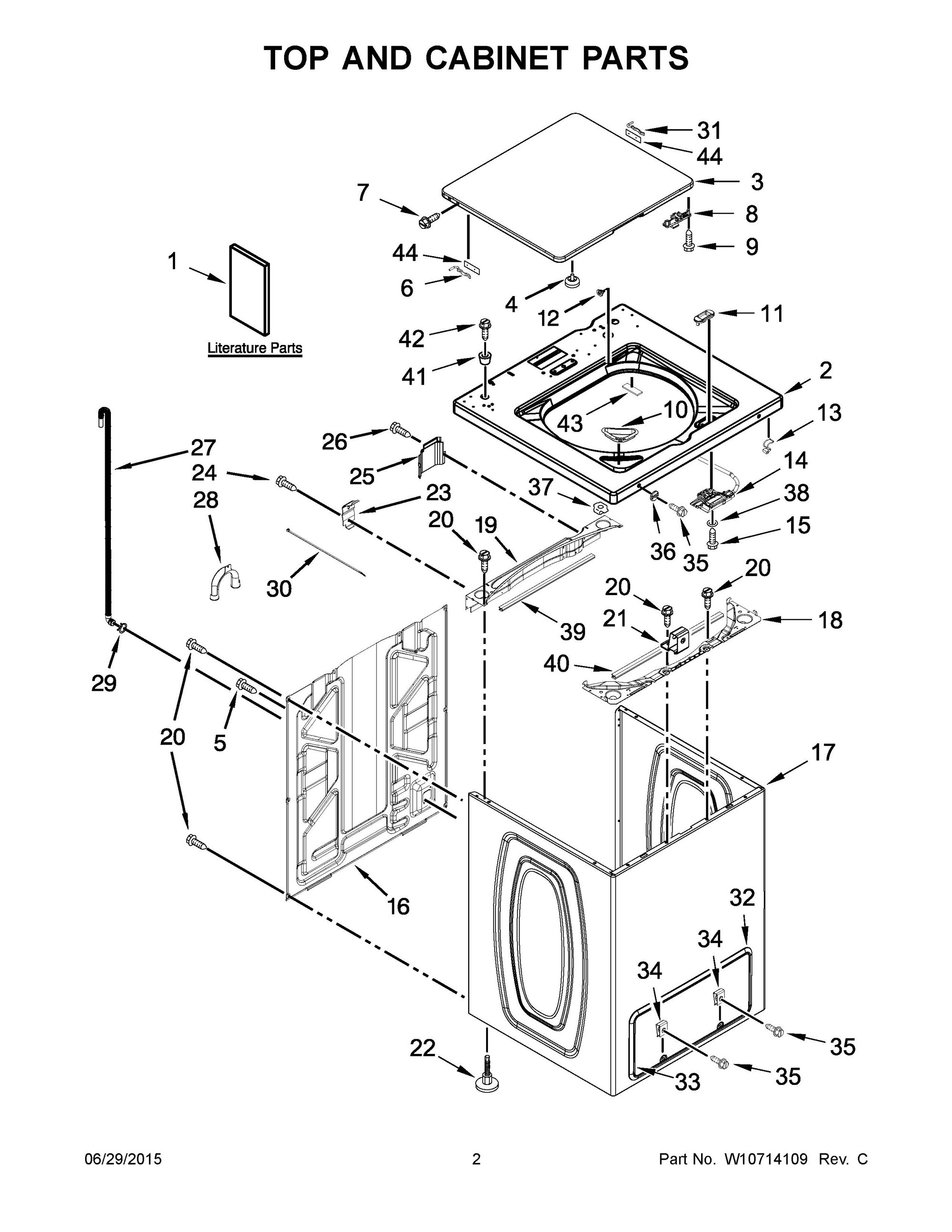

The image and part list below are associated with the component: 02 - TOP AND CABINET PARTS:
For Support or Ordering By Phone,
Call (800) 816-0715 Mon–Fri 8 am to 9 pm, Sat 8 am to 3 pm EST
| Description | Part# | Substitution# | Diagram Reference | ETA | ||
|---|---|---|---|---|---|---|
|
INSTALLATION INSTRUCTIONS | W10474266 | 1 | 11 days | ||
|
DISPENSER, BLEACH | W10515627 | 10 | 5 days | ||
|
BEZEL, LID LOCK (WHITE) | W10392041 | WPW10392041 | 11 | 5 days | |
|
BEARING, LID HINGE | 21258 | WP21258 | 12 | 5 days | |
|
Clip, Harness | 90016 | WP90016 | 13 | 5 days | |
|
LATCH, LID LOCK ASSEMBLY | W10482836 | WPW10482836 | 14 | 5 days | |
|
SCREW | W10588613 | W11679611 | 15 | 11 days | |
|
PANEL, REAR | W10250884 | W11486091 | 16 | 11 days | |
|
CABINET (WHITE) | W10464748 | W10464751 | 17 | 5 days | |
|
BRACE, CABINET TOP - FRONT | W10215098 | W11661767 | 18 | 11 days | |
|
BRACE, CABINET TOP - REAR | W10512626 | W11712680 | 19 | 11 days | |
|
WIRING DIAGRAM | W10531642 | 1A | 11 days | ||
|
TECH SHEET | W10554748 | 1B | 11 days | ||
|
TOP (WHITE) | W10461168 | 2 | 5 days | ||
|
Screw | 1157158 | 20 | 11 days | ||
|
LOCK, TOP | W10461182 | 21 | 5 days | ||
|
FOOT ASSEMBLY, LEVELING | W10397767 | W10739673 | 22 | 5 days | |
|
HINGE, TOP | W10461176 | 23 | 5 days | ||
|
SCREW | W10142728 | WP489128 | 24 | 5 days | |
|
COVER, HARNESS | W10461180 | 25 | 5 days | ||
|
SCREW | 3400076 | W10846509 | 26 | 5 days | |
|
HOSE, OUTER DRAIN ASSEMBLY | W10221546 | W11244231 | 27 | 11 days | |
|
U-BEND, DRAIN HOSE | W10280024 | WPW10280024 | 28 | 5 days | |
|
Clamp, Hose | 356138 | WP356138 | 29 | 5 days | |
|
ASSEMBLY, LID AND BUMPER (WHITE) | W10461179 | W10839384 | 3 | 5 days | |
|
TIE, CABLE | W10339879 | WPW10339879 | 30 | 5 days | |
|
HINGE, LID (RIGHT) | 54583 | WP54583 | 31 | 5 days | |
|
FRAME, FRONT ACCESS | W10464746 | W10464749 | 32 | 5 days | |
|
DOOR, FRONT ACCESS | W10464747 | W10464750 | 33 | 5 days | |
|
NUT, | 3400915 | WP3400915 | 34 | 5 days | |
|
SCREW | W10486616 | W11170603 | 35 | 11 days | |
|
BUSHING-TOP, SCREW | W10461181 | 36 | 5 days | ||
|
NUT, CAGE | 90406 | WP90406 | 37 | 5 days | |
|
O-RING | W10318627 | 38 | - |
|
|
|
BRACE-GUARD, CABINET REAR TOP | W10521454 | 39 | 11 days | ||
|
BUMPER, LID | W10525268 | W11252488 | 4 | 11 days | |
|
BRACE-GUARD, CABINET FRONT TOP | W10521453 | 40 | 11 days | ||
|
Cone, Wedge | 356674 | 41 | 5 days | ||
|
BOLT | 3353994 | 42 | 5 days | ||
|
PAD | W10684257 | W11312189 | 43 | 11 days | |
|
Pad, Lid Hinge | 21097 | WP21097 | 44 | 5 days | |
|
SCREW | 9740848 | WP9740848 | 5 | 5 days | |
|
HINGE, LID (LEFT) | 91770 | WP91770 | 6 | 5 days | |
|
SCREW | W10119872 | WPW10119828 | 7 | 5 days | |
|
STRIKE, LID LOCK (WHITE) | W10240513 | WPW10240513 | 8 | 5 days | |
|
SCREW | W10273971 | WPW10273971 | 9 | 5 days |
