Model# MSD2559XEM01

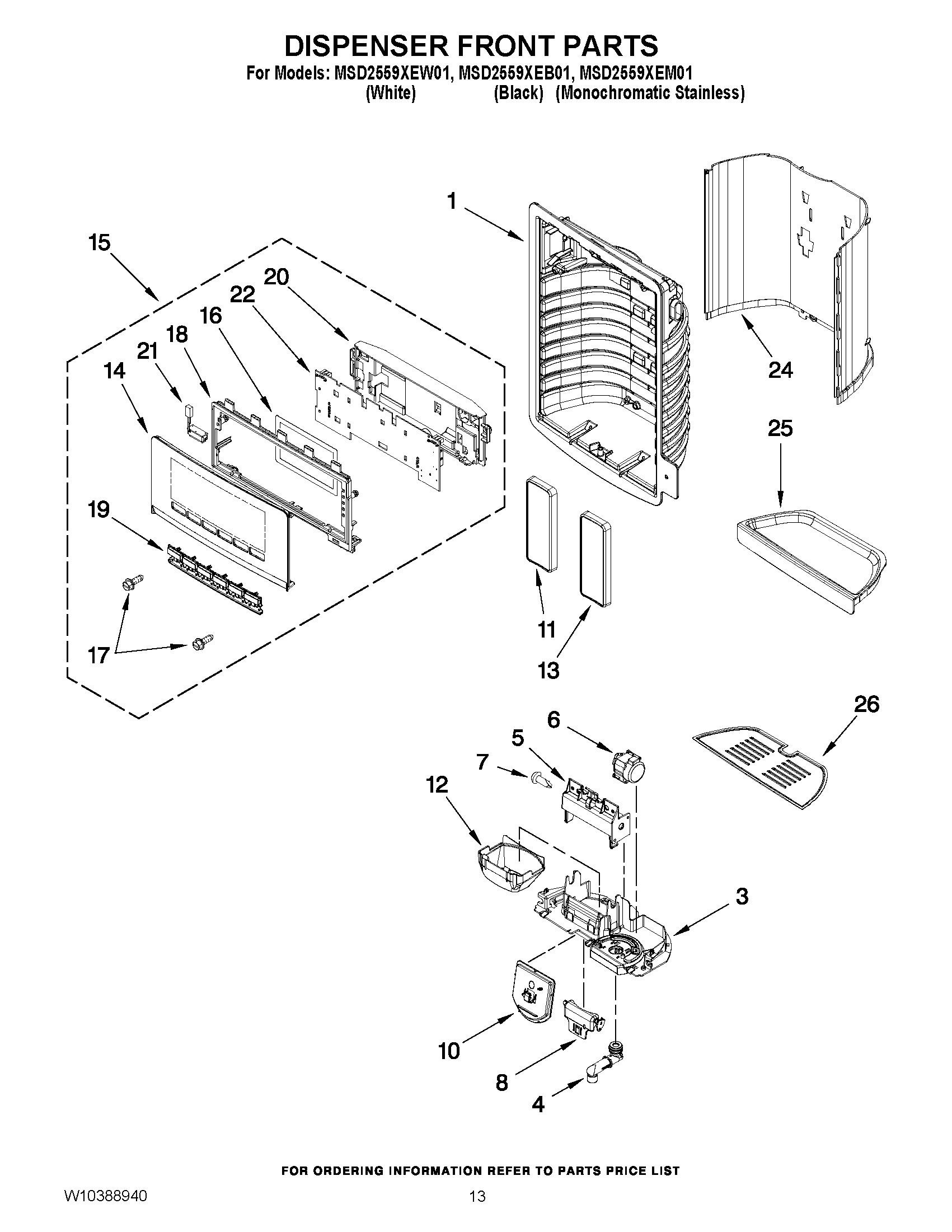

The image and part list below are associated with the component: 08 - DISPENSER FRONT PARTS:
For Support or Ordering By Phone,
Call (800) 816-0715 Mon–Fri 8 am to 9 pm, Sat 8 am to 3 pm EST
| Description | Part# | Substitution# | Diagram Reference | ETA | ||
|---|---|---|---|---|---|---|
|
HOUSING, DISPENSER (NOT SERVICED) | N/P | 1 | 11 days | ||
|
DOOR, ICE | W10317279 | WPW10317279 | 10 | 3 days | |
|
PAD, ICE DISPENSER (WHITE) | W10334789 | 11 | 11 days | ||
|
PAD, ICE DISPENSER (BLACK) | W10334790 | WPW10368730 | 11 | 3 days | |
|
GUIDE, ICE | W10339578 | WPW10435760 | 12 | 3 days | |
|
PAD, WATER DISPENSER (WHITE) | W10334813 | 13 | 11 days | ||
|
|
PAD, WATER DISPENSER (BLACK) | W10334814 | WPW10368730 | 13 | 3 days | |
|
FASCIA ASSY (WHITE) | W10286927 | 14 | 3 days | ||
|
FASCIA ASSY (BLACK) | W10286928 | 14 | 11 days | ||
|
UI ASSY, STEALTH | W10291367 | WPW10286929 | 15 | 3 days | |
|
BARRIER, MOISTURE | W10254293 | 16 | 11 days | ||
|
SCREW | W10141632 | 17 | 11 days | ||
|
FRAME, FASCIA | W10286907 | 18 | 3 days | ||
|
TREE, BUTTON | W10286910 | 19 | 11 days | ||
|
COVER, BOARD | W10254277 | 20 | 3 days | ||
|
LED ASSY | W10238083 | W11290115 | 21 | 11 days | |
|
|
CTRL-ELEK, STEALTH | W10291367 | WPW10286929 | 22 | 3 days | |
|
FALSE WALL (BLACK) | W10286899 | 24 | 11 days | ||
|
FALSE WALL (WHITE) | W10286898 | 24 | 11 days | ||
|
FALSE WALL (STAINLESS) | W10286900 | 24 | 11 days | ||
|
DRIP TRAY (WHITE) | W10286894 | 25 | 3 days | ||
|
DRIP TRAY (BLACK) | W10286895 | 25 | 3 days | ||
|
DRIP TRAY (STAINLESS) | W10286896 | 25 | 3 days | ||
|
GRATE, DRIP TRAY (BLACK) | W10286921 | 26 | 3 days | ||
|
GRATE, DRIP TRAY (STAINLESS) | W10286922 | 26 | 3 days | ||
|
GRATE, DRIP TRAY (WHITE) | W10286920 | 26 | 3 days | ||
|
SEPARATOR, FIXED | W10286902 | 3 | 3 days | ||
|
SPIGOT-BODY ASSY | W10317267 | WP2305235 | 4 | - |
|
|
BRACKET, ICE DOOR | W10174827 | 5 | 3 days | ||
|
MOTOR, ICE DOOR | W10205978 | WPW10205978 | 6 | 3 days | |
|
CLIP, MTR COUP | W10174818 | 7 | 3 days | ||
|
SUPPORT, ICE DOOR | W10346124 | WPW10346124 | 8 | 3 days |
