Model# MRSC22DRAAD

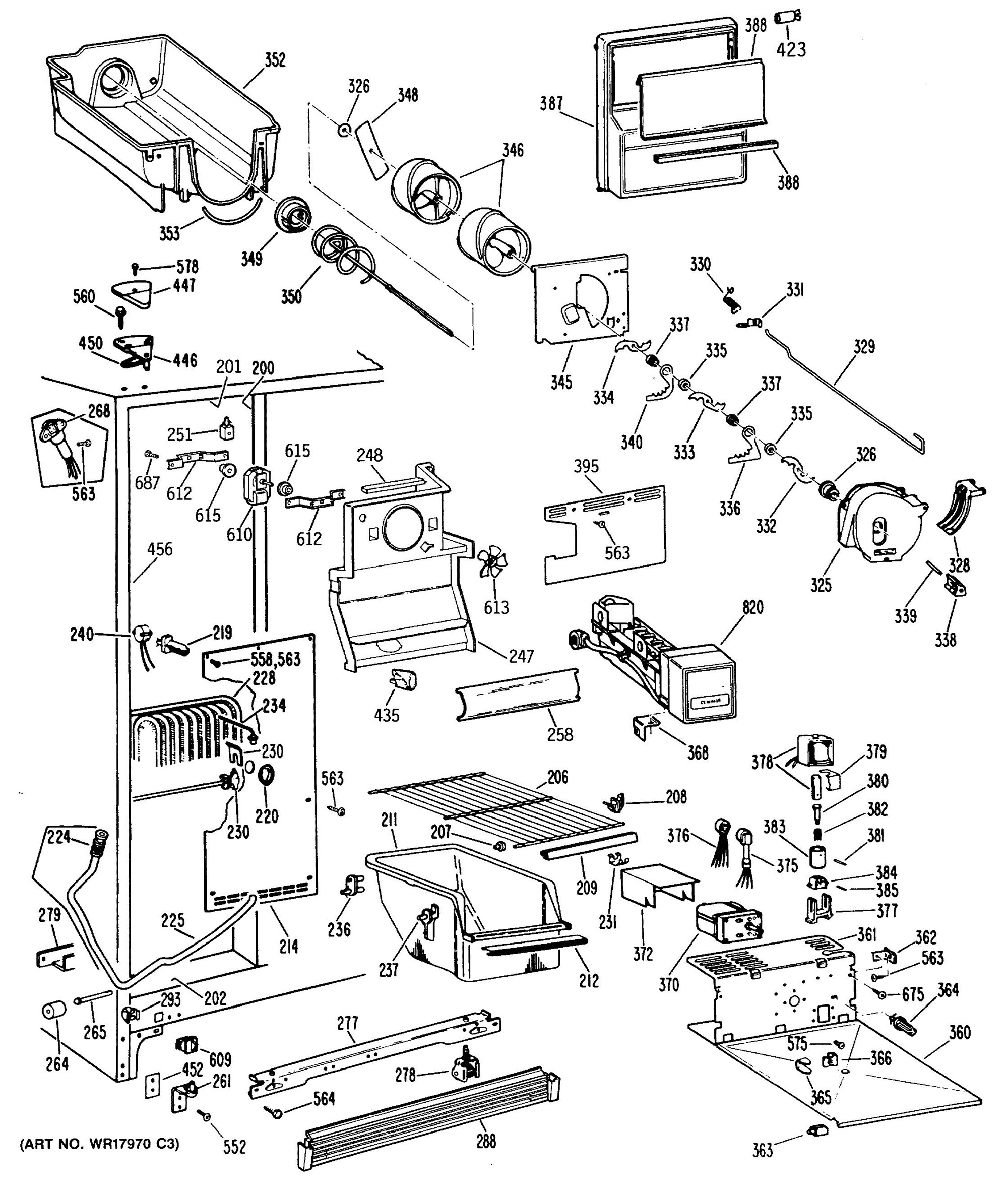

The image and part list below are associated with the component: Illustration 3:
For Support or Ordering By Phone,
Call (800) 816-0715 Mon–Fri 8 am to 9 pm, Sat 8 am to 3 pm EST
| Description | Part# | Substitution# | Diagram Reference | ETA | ||
|---|---|---|---|---|---|---|
|
BREAKER STRIP R/S FRZ | WR40X1641 | 200 | 11 days | ||
|
BREAKER STRIP TOP FRZ | WR40X1636 | 201 | 11 days | ||
|
BREAKER STRIP BTM FRZ | WR40X1630 | 202 | 11 days | ||
|
SHELF FZ | WR71X1888 | WR71X10715 | 206 | 5 days | |
|
GROMMET SHELF | WR02X4676 | WR2X4676 | 207 | 5 days | |
|
SUPPORT SHELF | WR02X4674 | WR02X11561 | 208 | 5 days | |
|
TRIM SHELF | WR38X5180 | 209 | 11 days | ||
|
BASKET WHITE | WR21X0188 | WR21X188 | 211 | 5 days | |
|
TRIM SHELF | WR02X6042 | 212 | 11 days | ||
|
GASKET EVAP COVER | WR14X0274 | WR14X274 | 214 | 11 days | |
|
COVER EVAP | WR17X2756 | 214 | 11 days | ||
|
SUPPORT TWIST EVAP | WR02X4421 | 219 | 11 days | ||
|
PLUG BUTTON | WR02X7926 | 220 | 11 days | ||
|
TUBE DRAIN | WR02X4967 | WR02X10395 | 224 | 5 days | |
|
CLAMP | WR02X4838 | WR2X4838 | 225 | 11 days | |
|
CLAMP HOSE | WR01X5042 | WR1X1843 | 225 | 5 days | |
|
|
TUBE DRAIN | WR02X8293 | WR02X10395 | 225 | 5 days | |
|
FOAM BLOCK EVAP AIR | WR02X4982 | WR2X4982 | 228 | 11 days | |
|
FOAM BLOCK EVAP AIR | WR02X4983 | WR2X4983 | 228 | 11 days | |
|
LOW SIDE ASM | WR85X0200 | 228 | 11 days | ||
|
HEATER ASM DEFROST | WR51X0231 | WR49X391 | 230 | 5 days | |
|
BRKT DEF HTR | WR02X8488 | 230 | 11 days | ||
|
CLIP SHELF TRIM | WR02X8424 | 231 | 11 days | ||
|
HARNESS DEF HTR | WR02X4546 | 234 | 11 days | ||
|
SUPPORT BASKET-REAR | WR02X4548 | WR2X4548 | 236 | 5 days | |
|
SUPPORT BASKET-FRONT | WR02X7036 | WR2X7036 | 237 | 5 days | |
|
DEFROST THERMOSTAT | WR50X0117 | WR50X55 | 240 | 5 days | |
|
SUPPORT ORIFICE | WR02X4845 | WR2X4845 | 247 | 5 days | |
|
ORIFICE EVAP FAN | WR17X2945 | 247 | 11 days | ||
|
FOAM STRIP | WR14X0272 | WR2X3899 | 248 | 5 days | |
|
SUPPORT TWIST | WR02X2880 | WR2X2880 | 251 | 5 days | |
|
SHIELD LIGHT | WR17X1407 | 258 | 5 days | ||
|
HINGE BTM PIN & CAM ASM | WR13X0615 | WR13X10020 | 261 | 5 days | |
|
WHEEL MOBILITY | WR02X3594 | WR2X3594 | 264 | 5 days | |
|
AXLE | WR02X3595 | WR2X3595 | 265 | 5 days | |
|
|
COTTER PIN | WR02X3598 | WR2X3595 | 265 | 5 days | |
|
|
AXLE WHEEL | WR02X4742 | WR2X3595 | 265 | 5 days | |
|
IM RECEPACLE | WR23X0312 | WR23X312 | 268 | 5 days | |
|
RAIL MACH MTG FRT | WR17X2119 | 277 | 11 days | ||
|
WHEEL ASM FRT | WR02X4858 | WR2X4858 | 278 | 5 days | |
|
RAIL MACH MTG REAR | WR17X2742 | 279 | 11 days | ||
|
GRILLE BASE | WR74X0200 | WR74X200 | 288 | 5 days | |
|
CLIP-0. CASE-END CAP | WR02X7080 | WR2X7080 | 293 | 5 days | |
|
HSNG CRUSHER DISP | WR17X2061 | 325 | 5 days | ||
|
WASHER | WR01X1366 | WR1X1366D | 326 | 5 days | |
|
RETAINER RING E | WR01X1367 | WR1X1367D | 326 | 5 days | |
|
NUT AUGER | WR01X1585 | WR1X1585 | 326 | 5 days | |
|
PIN DEFLECTOR DISP | WR02X4143 | WR2X4143 | 328 | 5 days | |
|
SPRING ICE DEFLECTOR | WR02X4561 | WR2X4561 | 328 | 5 days | |
|
DEFLECTOR ICE DISP | WR17X2059 | 328 | 5 days | ||
|
WIRE ACTUATOR DISP | WR17X2060 | 329 | 5 days | ||
|
SPRING | WR02X4145 | WR2X4145 | 330 | 5 days | |
|
RETAINER ACTUATOR WIRE | WR02X4251 | WR2X4251 | 331 | 5 days | |
|
BLADES MOVING DISP | WR17X1361 | 332 | 5 days | ||
|
BLADES MOVING DISP | WR17X1362 | 333 | 5 days | ||
|
BLADES MOVING DISP | WR17X1363 | 334 | 5 days | ||
|
SPACER CRUSHER MIDDLE | WR02X4139 | WR2X4139 | 335 | 5 days | |
|
BLADE STATIONARY DISP | WR17X1009 | WR17X2216 | 336 | 11 days | |
|
SPACER CRUSHER STATIONAR | WR02X4138 | WR2X4138 | 337 | 5 days | |
|
BLADE REST DISP | WR02X4140 | WR2X4140 | 338 | 5 days | |
|
PIN SPIRAL | WR02X4141 | WR2X4141 | 339 | 5 days | |
|
BLADE STATIONARY DISP | WR17X2058 | 340 | 5 days | ||
|
PLATE FRONT DISP | WR17X2760 | 345 | 5 days | ||
|
HELIX REAR-DISP | WR17X2056 | 346 | 5 days | ||
|
HELIX FRONT-DISP | WR17X2057 | WR49X10183 | 346 | - |
|
|
BLADE IN DISP | WR02X7351 | WR2X7783 | 348 | 5 days | |
|
CUP DRIVE DISP | WR02X4550 | WR2X4550 | 349 | 5 days | |
|
AUGER HELIX DISP | WR17X2740 | 350 | 5 days | ||
|
BUCKET ICE DISP | WR30X0257 | WR30X257 | 352 | 5 days | |
|
BUCKET & AUGER ASM DISP | WR17X2899 | WR17X4310 | 352 | 5 days | |
|
BUCKET SEAL DISP | WR02X7905 | WR2X7905 | 353 | 5 days | |
|
PROTECTOR SHELF | WR02X4566 | WR2X4566 | 360 | 11 days | |
|
SHELF BUCKET BTM DISP | WR71X2209 | 360 | 11 days | ||
|
COVER MOTOR & SOLENOID | WR71X2213 | 361 | 11 days | ||
|
BRACKET SHELF | WR02X7959 | 362 | 11 days | ||
|
SUPPORT SHELF | WR02X4465 | WR2X4465 | 363 | 5 days | |
|
SUPP0RT TWIST | WR02X7310 | WR2X7310 | 364 | 5 days | |
|
DRIVE AUGER DISPENSER | WR02X4854 | WR2X4854 | 365 | 5 days | |
|
NUT J | WR01X1547 | WR1X1547D | 366 | 5 days | |
|
BRACKET IM MTG | WR02X8459 | WR2X8459 | 368 | 5 days | |
|
SCREW MOTOR MOUNT | WR01X1788 | WR01X10618 | 370 | 5 days | |
|
MOTOR CRUCHER DISP | WR60X0202 | WR60X10262 | 370 | 5 days | |
|
SHIELD CRUSHER MTR | WR17X2946 | WR02X11295 | 372 | 5 days | |
|
HARNESS MOTOR DISP | WR23X0194 | WR23X194 | 375 | 5 days | |
|
RECEPTACLE-HARNESS | WR23X0189 | 376 | 11 days | ||
|
SADDLE SOLENOID | WR02X7309 | WR2X7309 | 377 | 5 days | |
|
SOLENOID & ARM ASM | WR62X0058 | WR62X23154 | 378 | 11 days | |
|
SHROUD SOLENOID | WR17X1063 | WR62X26536 | 379 | 11 days | |
|
|
PLUNGER SOLENOID | WR17X1064 | WR62X26536 | 380 | 11 days | |
|
|
PIN SPIRAL | WR02X4257 | WR62X26536 | 381 | 11 days | |
|
|
SPRING SOLENOID LINKAGE | WR02X4258 | WR62X26536 | 382 | 11 days | |
|
|
COLLAR SOLENOID DISP | WR17X1065 | WR62X23154 | 383 | 11 days | |
|
|
STIRRUP SOLENOID DISP | WR17X1066 | WR62X26536 | 384 | 11 days | |
|
|
PIN SPIRAL | WR02X4259 | WR62X26536 | 385 | 11 days | |
|
COVER BUCKET ASM | WR17X3058 | WR17X10339 | 387 | 5 days | |
|
DOOR ICE STORAGE DISP | WR17X2882 | WR17X10273 | 388 | 5 days | |
|
TRIM ICE DOOR | WR38X1497 | 388 | 5 days | ||
|
SHIELD FAN | WR17X2904 | 395 | 11 days | ||
|
SUPPORT SHIELD TOP | WR02X6347 | WR2X6347 | 423 | 5 days | |
|
LAMP 40W 120V | STD372402 | 435 | 11 days | ||
|
SCKT & TERMINAL ASM | WR02X8265 | WR2X9391 | 435 | 5 days | |
|
HINGE TOP ASM | WR13X0617 | WR13X617 | 446 | 11 days | |
|
HINGE COVER AD | WR02X8263 | WR2X8263 | 447 | 11 days | |
|
SHIM HINGE TOP | WR02X4194 | WR2X4194 | 450 | 5 days | |
|
NUTSTRIP HINGE BTM | WR02X7143 | WR2X7143 | 452 | 5 days | |
|
BREAKER STRIP L/S FRZ | WR40X1632 | 456 | 11 days | ||
|
SCR 12-24 HXW 1 1/64 SSP | WR01X1587 | WR1X1249D | 552 | 5 days | |
|
SCREW | WZ06X0107 | WZ6X107D | 558 | 11 days | |
|
|
SCREW | WR01X1249 | WR1X1249D | 560 | 5 days | |
|
SCREW | WR01X1806 | WR1X1806 | 560 | 5 days | |
|
SCR 1/4-14 BA HX 3/4 SN | WR01X1194 | WE2X186D | 564 | 5 days | |
|
SCR 8-32 MA PA 3/8 S | WZ02X0503 | WZ2X464D | 578 | 5 days | |
|
SWITCH LIGHT WH | WR23X0193 | WR23X37285 | 609 | 11 days | |
|
MOTOR EVAP FAN | WR60X0188 | WR60X30349 | 610 | 11 days | |
|
BRACKET EVAP FAN | WR02X8549 | WR2X8549 | 612 | 5 days | |
|
FAN BLADE EVAP MOTOR | WR60X0114 | WR60X114 | 613 | 5 days | |
|
|
RING COMPRESSION | WR02X3198 | WR60X114 | 613 | 5 days | |
|
GROMMET | WR02X2945 | WR2X2945 | 615 | 5 days | |
|
SCREW | WZ05X0194 | WZ5X194D | 687 | 11 days |
