Model# MGDE500VW2

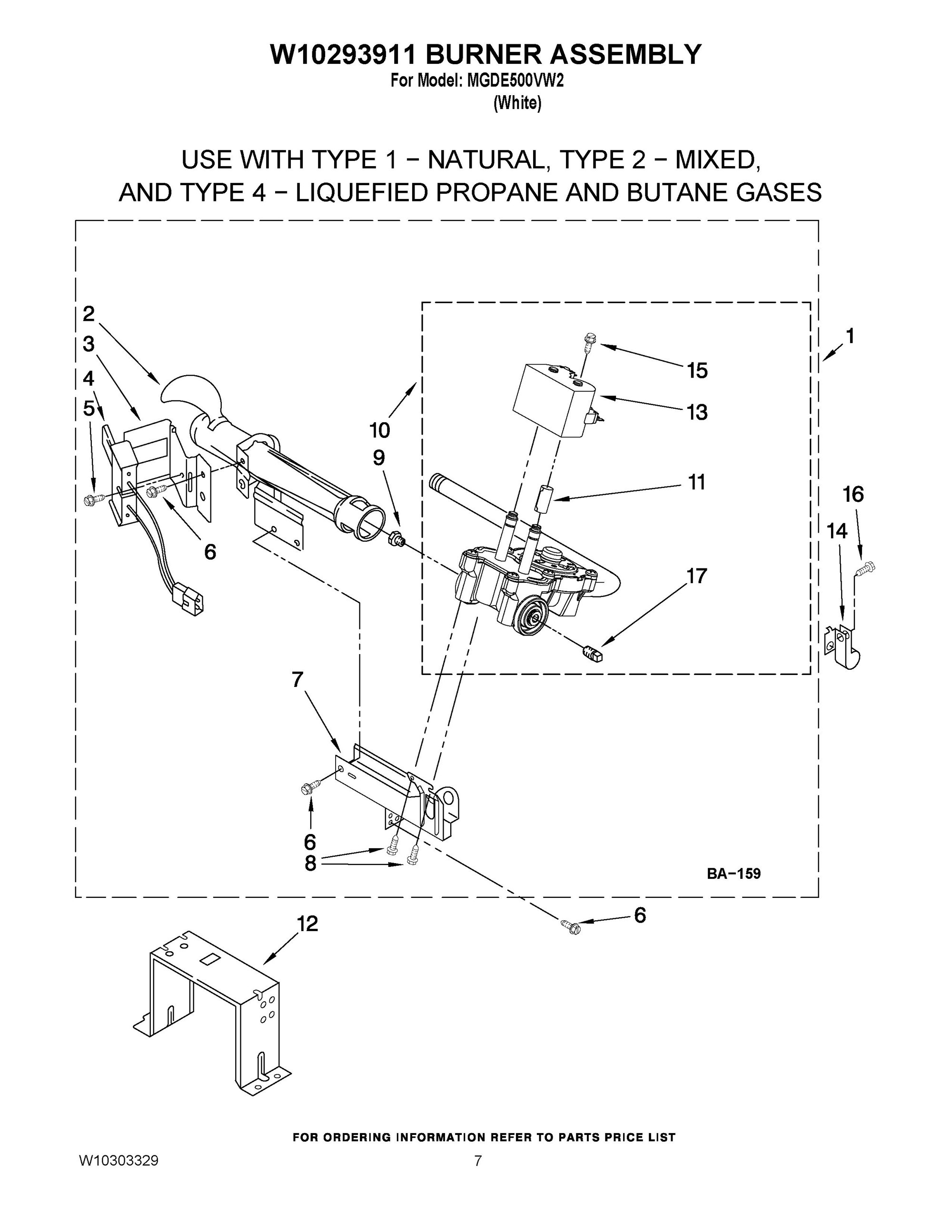

The image and part list below are associated with the component: 04 - W10293911 BURNER ASSEMBLY:
For Support or Ordering By Phone,
Call (800) 816-0715 Mon–Fri 8 am to 9 pm, Sat 8 am to 3 pm EST
| Description | Part# | Substitution# | Diagram Reference | ETA | ||
|---|---|---|---|---|---|---|
|
BURNER ASSEMBLY 60 HZ. (TYPE 1 & 2) | W10293911 | 280119 | 1 | 3 days | |
|
VALVE, GAS 60 HZ. (COMPLETE) (INCLUDES PIPE & ILLUS. NO. 7 ) | W10175144 | WPW10118347 | 10 | 3 days | |
|
SLEEVE-MAGNETIC | W10295524 | WPW10328463 | 11 | - |
|
|
Bracket, Support | 3389889 | 3389888 | 12 | 3 days | |
|
|
COIL, 60 HZ. | W10273784 | WPW10328463 | 13 | - |
|
|
CLAMP, PIPE | 3978776 | 14 | 3 days | ||
|
SCREW, COIL | 326049536 | 15 | 11 days | ||
|
SCREW,8-18 X 1/2 | 3390647 | WP488729 | 16 | 3 days | |
|
PLUG, PIPE | W10295523 | 17 | 3 days | ||
|
Tube, Burner | 688617 | WP693140 | 2 | - |
|
|
Bracket, Ignitor | 694298 | WP694298 | 3 | 3 days | |
|
Ignitor | 686590 | 279311 | 4 | 3 days | |
|
Screw & Washer (8-32 x 5/8) | 3393909 | WPW10366705 | 5 | 3 days | |
|
Screw, 10-16 x 1/2 | 343641 | WP681414 | 6 | 3 days | |
|
Base, Burner | 3389871 | 7 | 3 days | ||
|
SCREW, 8-18 X 3/8 (3) | 3387057 | WP693995 | 8 | 3 days | |
|
ORIFICE, BURNER (TYPE 1) | 15418 | WP15418 | 9 | 3 days | |
|
CONVERSION KIT (TYPE 1 AND 2) TO TYPE (4) L.P.G. | W10293913 | W11581317 | NI | 11 days |
