Model# MER8674AB0

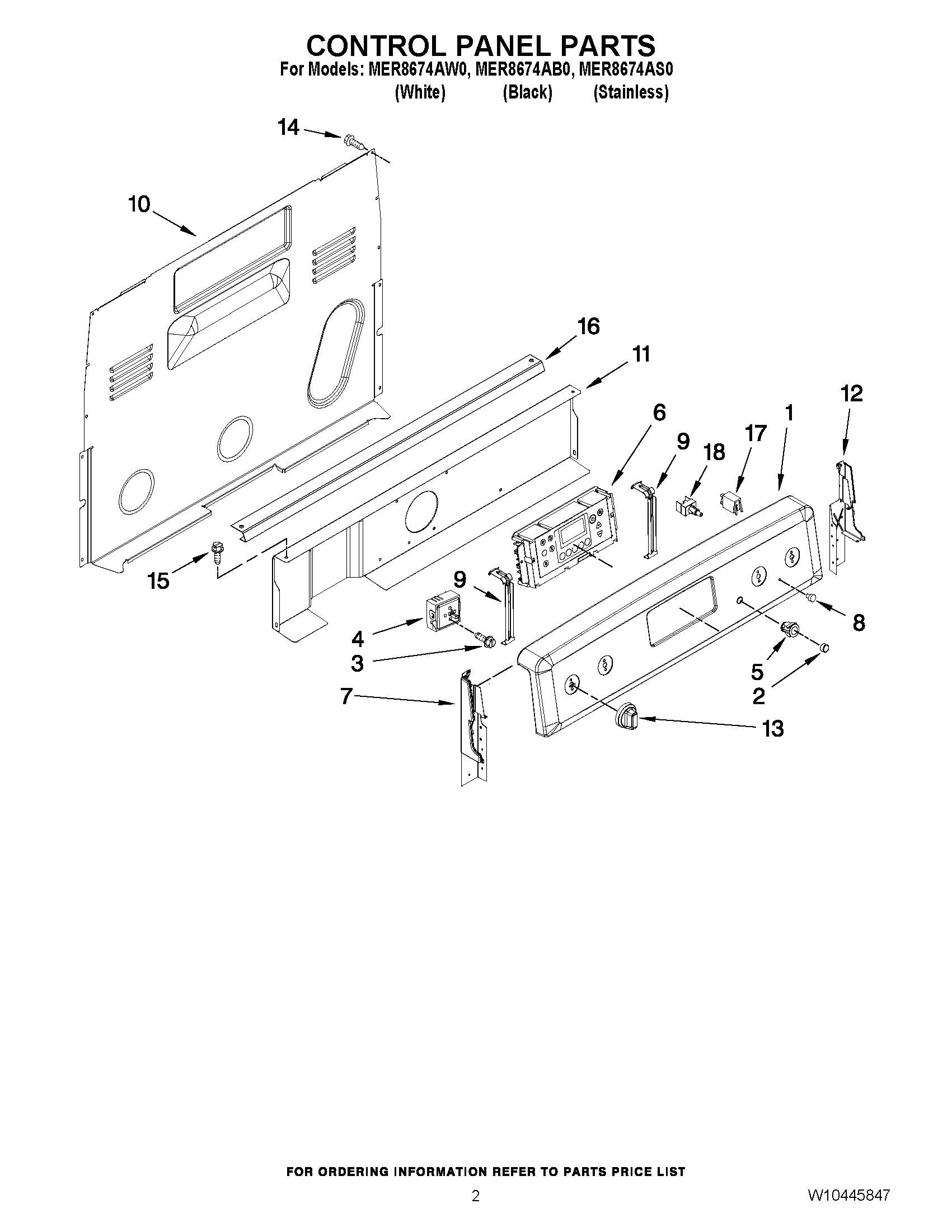

The image and part list below are associated with the component: 02 - CONTROL PANEL PARTS:
For Support or Ordering By Phone,
Call (800) 816-0715 Mon–Fri 8 am to 9 pm, Sat 8 am to 3 pm EST
| Description | Part# | Substitution# | Diagram Reference | ETA | ||
|---|---|---|---|---|---|---|
|
PANEL, BACKGUARD (BLACK) | W10333922 | 1 | 11 days | ||
|
PANEL, BACKGUARD (STAINLESS STEEL) | W10333923 | 1 | 11 days | ||
|
PANEL, BACKGUARD (WHITE) | W10333924 | 1 | 11 days | ||
|
Cover, Upper | 8272473 | WP8272473 | 10 | 2 days | |
|
Shield, Heat | W10134247 | 11 | - |
|
|
|
END CAP, RIGHT (WHITE) | W10184434 | W11219370 | 12 | 11 days | |
|
END CAP, RIGHT (BLACK) | W10184438 | W11219665 | 12 | 11 days | |
|
KNOB (WHITE) | W10370184 | 13 | 2 days | ||
|
KNOB (BLACK) | W10370185 | 13 | 2 days | ||
|
KNOB (STAINLESS) | W10370186 | WPW10370186 | 13 | 2 days | |
|
Screw | 3196165 | 14 | 11 days | ||
|
SCREW | W10362924 | W11233072 | 15 | - |
|
|
BRACKET CONSOLE MOUNTING | W10182322 | W10525121 | 16 | 2 days | |
|
Light, Indicator | 8523265 | WP8523265 | 17 | 2 days | |
|
SWITCH, WARM ZONE | 8272820 | WP8272820 | 18 | 2 days | |
|
BUTTON, KEEP WARM (WHITE) | 9757492 | 2 | 2 days | ||
|
BUTTON, KEEP WARM (BLACK/SS) | 9758491 | 2 | 2 days | ||
|
SCREW, SWITCH | 3400882 | WP3400882 | 3 | 2 days | |
|
SWITCH, INFINTE ((LR & RR) | 3148951 | WP3149404 | 4 | 2 days | |
|
SWITCH, INFINTE (RF) | W10411934 | WPW10411934 | 4 | 2 days | |
|
SWITCH, INFINTE (LF) | W10434452 | WPW10434452 | 4 | 2 days | |
|
BEZEL, KEEP WARM (BLACK) | W10217758 | 5 | 2 days | ||
|
BEZEL, KEEP WARM (WHITE) | W10217760 | 5 | 2 days | ||
|
BEZEL, KEEP WARM (STAINLESS) | W10315960 | 5 | 2 days | ||
|
CONTROL (WHITE) | W10348714 | 6 | 11 days | ||
|
CONTROL (BLACK) | W10348715 | 6 | 11 days | ||
|
CONTROL (STAINLESS) | W10348716 | WPW10655837 | 6 | - |
|
|
END CAP, LEFT (WHITE) | W10184433 | W11219365 | 7 | 11 days | |
|
END CAP, LEFT (BLACK) | W10184437 | W11219664 | 7 | 11 days | |
|
LENS, RED | 3196068 | WP3196068 | 8 | 2 days | |
|
BRACKET, CONTROL | W10324410 | W11230932 | 9 | 11 days |
