Model# MAT20PRAWW0

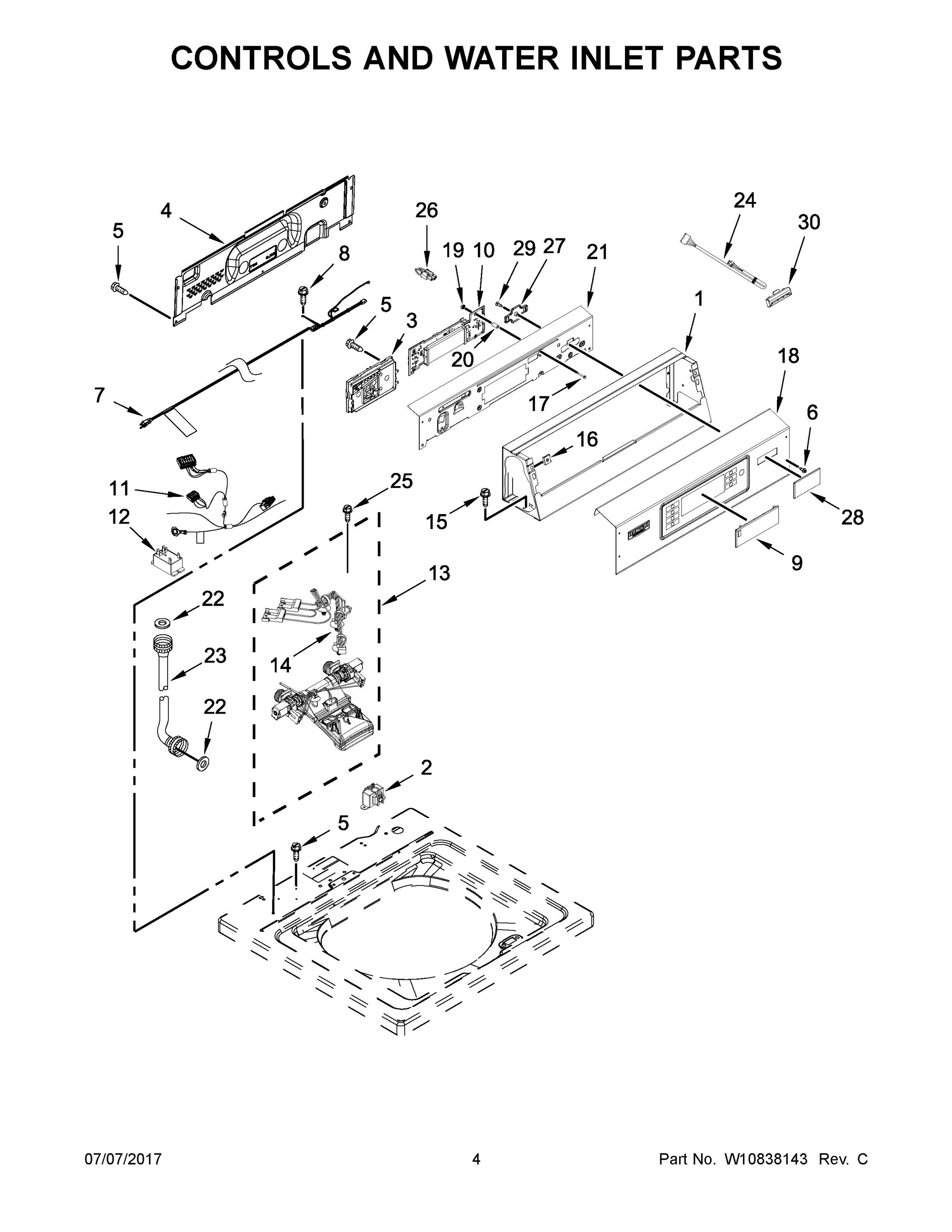

The image and part list below are associated with the component: 03 - CONTROLS AND WATER INLET PARTS:
For Support or Ordering By Phone,
Call (800) 816-0715 Mon–Fri 8 am to 9 pm, Sat 8 am to 3 pm EST
| Description | Part# | Substitution# | Diagram Reference | ETA | ||
|---|---|---|---|---|---|---|
|
CONSOLE | W10461095 | W11124005 | 1 | 11 days | |
|
USER INTERFACE | W11113315 | W11323688 | 10 | 11 days | |
|
HARNESS, UPPER | W10843665 | W11680813 | 11 | - |
|
|
RELAY | W11032871 | W11384790 | 12 | 11 days | |
|
INLET ASSEMBLY, WATER | W10843663 | W11205048 | 13 | 11 days | |
|
HARNESS, VALVE | W10843398 | 14 | 4 days | ||
|
SCREW | 3390631 | WP3390631 | 15 | 4 days | |
|
NUT, | W10131123 | WPW10131123 | 16 | 4 days | |
|
SCREW | W10137322 | W11117300 | 17 | 11 days | |
|
FASCIA | W10821635 | W11100982 | 18 | 11 days | |
|
NUT | W10139046 | WPW10139046 | 19 | 11 days | |
|
TRANSFORMER | W10131839 | WPW10131839 | 2 | 4 days | |
|
Standoff, Circuit Board | W10133514 | 20 | 11 days | ||
|
BRACKET, CONTROL | W10845298 | 21 | 11 days | ||
|
WASHER, HOSE | W10242307 | WP16123 | 22 | 4 days | |
|
HOSE, WATER INLET (COLD) | W10852720 | W11085908 | 23 | 11 days | |
|
|
HOSE, WATER INLET (HOT) | W10852721 | W11085908 | 23A | 11 days | |
|
CARD READER, HARNESS | W10133304 | 24 | 4 days | ||
|
SCREW | W10213953 | WPW10213953 | 25 | 4 days | |
|
JUMPER, SWITCH SERVICE/VAULT | W10133282 | 26 | 4 days | ||
|
Retainer, Card Reader Cover | W10137770 | 27 | 11 days | ||
|
Cover, Card Reader | W10137769 | 28 | 4 days | ||
|
SCREW | 3400618 | 29 | 4 days | ||
|
CONTROL UNIT ASSEMBLY, MACHINE & MOTOR | W10850499 | W11256554 | 3 | 11 days | |
|
BEZEL | W10131115 | WPW10131115 | 30 | 4 days | |
|
PANEL, CONSOLE REAR COVER | W10461159 | WPW10461159 | 4 | - |
|
|
SCREW | W10660565 | W11685943 | 5 | - |
|
|
SCREW M4X13 | W10131119 | WPW10131119 | 6 | 4 days | |
|
CORD, POWER | W10916258 | W11763414 | 7 | 11 days | |
|
SCREW | 3400076 | W10846509 | 8 | 4 days | |
|
COVER, DISPLAY | W10267645 | WPW10267645 | 9 | 4 days |
