Model# LGBD2432LW0A

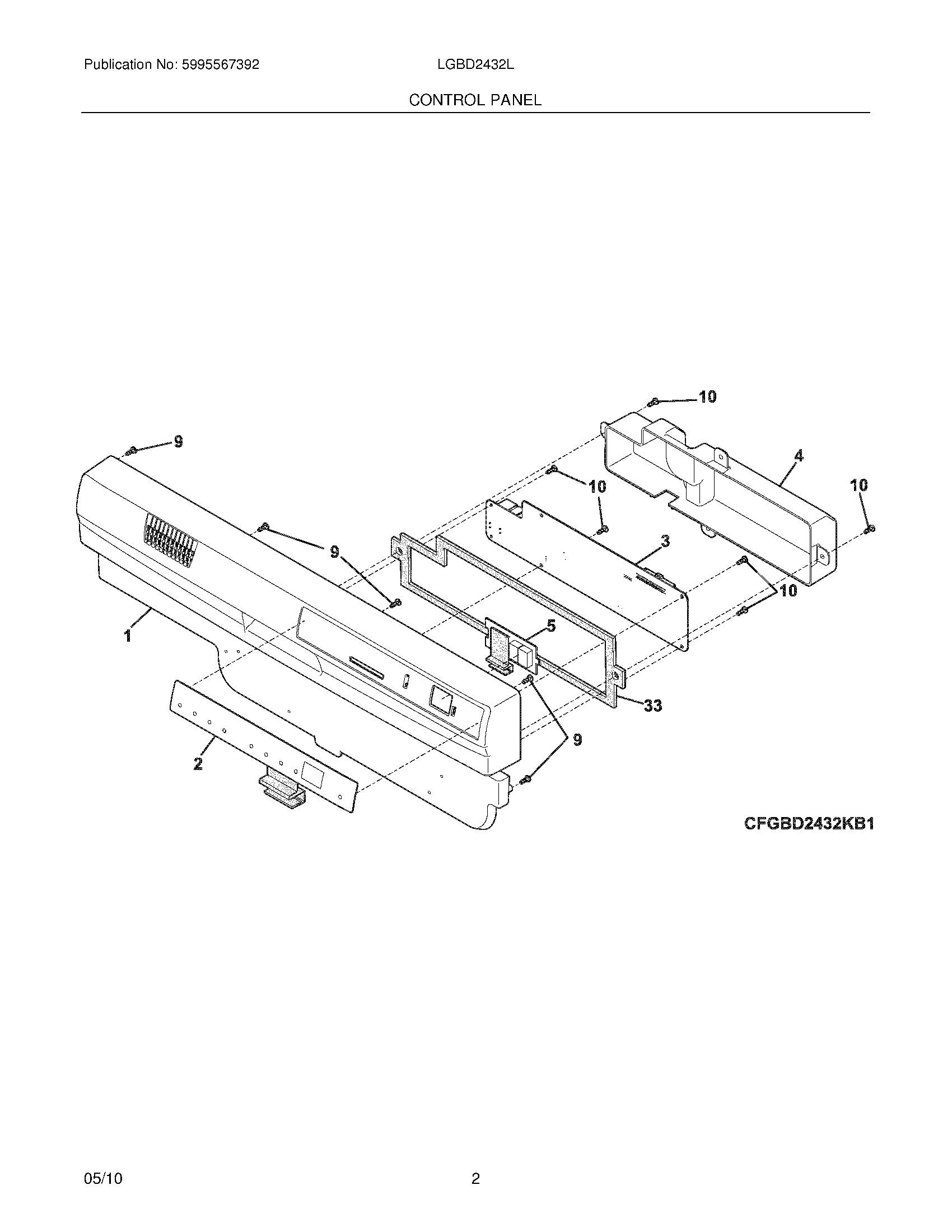

The image and part list below are associated with the component: 03 - CONTROL PANEL:
For Support or Ordering By Phone,
Call (800) 816-0715 Mon–Fri 8 am to 9 pm, Sat 8 am to 3 pm EST
| Description | Part# | Substitution# | Diagram Reference | ETA | ||
|---|---|---|---|---|---|---|
|
Console Assembly,w/pocket handle ,white | 154752601 | 154872201 | 1 | 4 days | |
|
Screw,No.7 plas .375 ,(6) ,disp. assy. | 154294701 | 10 | 4 days | ||
|
Insert,control panel ,white | 154778001 | 2 | 4 days | ||
|
Control | 154806401 | 807024601 | 3 | 4 days | |
|
Gasket,cover | 154478901 | 33 | 4 days | ||
|
Cover,control | 154718801 | 4 | 4 days | ||
|
Display Board,7 segment | 154734301 | 5 | 4 days | ||
|
Screw,phillips ,8-10 x .7 | 154282901 | 154783101 | 9 | 4 days | |
|
Energy Guide | 154758431 | NI | 11 days | ||
|
Screw,ground ,No.8-18 x .375 | 154409401 | 808326801 | NI | 11 days | |
|
Screw,dry duct ,(3) | 154436201 | 154793401 | NI | - |
|
|
Harness,wiring ,main | 154745601 | 154851201 | NI | 4 days |
