Model# KSRC25FVMS00

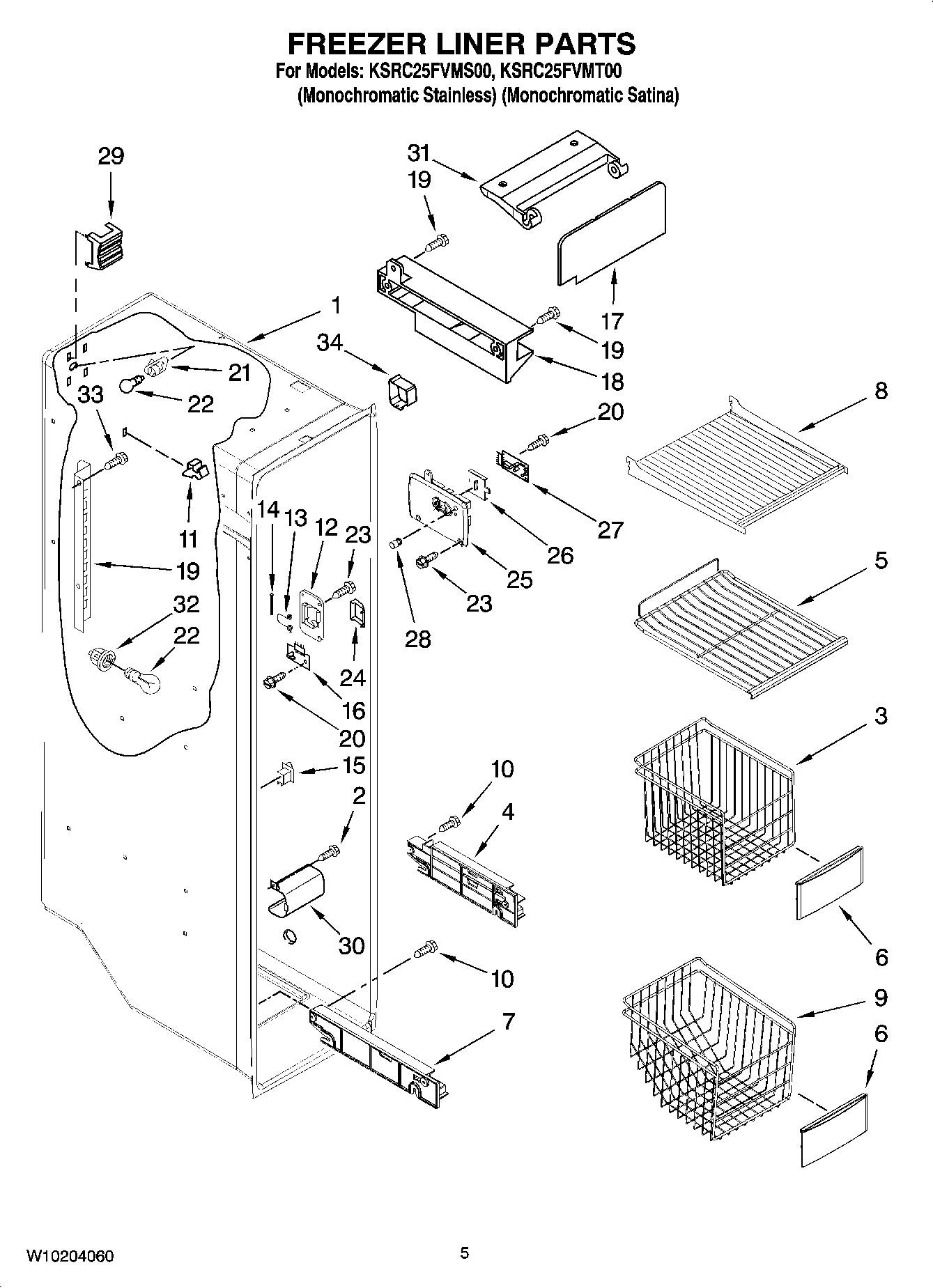

The image and part list below are associated with the component: 04 - FREEZER LINER PARTS:
For Support or Ordering By Phone,
Call (800) 816-0715 Mon–Fri 8 am to 9 pm, Sat 8 am to 3 pm EST
| Description | Part# | Substitution# | Diagram Reference | ETA | ||
|---|---|---|---|---|---|---|
|
Liner (Not A Seviceable Part)", | ARI95288A2 | 1 | 11 days | ||
|
SCREW", | W10004810 | W10759522 | 10 | 1 days | |
|
Clip, Air Duct", | 842534 | 2215823 | 11 | 1 days | |
|
Cover, Emitter", | 2198587 | WP2198587 | 12 | 1 days | |
|
Spring", | 2198635 | WP2198635 | 13 | 1 days | |
|
Pin", | 2198634 | WP2198634 | 14 | 1 days | |
|
Switch, Rocker Arm", | 1115373 | 15 | 11 days | ||
|
P.C. Board Emitter", | W10193842 | 16 | 11 days | ||
|
Cover, Ice Maker", | 2255720 | WP2255720 | 17 | 1 days | |
|
Slide, Ice Maker Mounting", | 2212321 | 18 | 1 days | ||
|
Screw", | 489478 | WP489478 | 19 | 1 days | |
|
Screw", | 3400893 | W10142289 | 2 | - |
|
|
Screw", | 489214 | 2006254 | 20 | 1 days | |
|
LIGHT SOCKET", | 2162085 | 4387478 | 21 | 1 days | |
|
Light Bulb", | 2255743 | W11679940 | 22 | 11 days | |
|
Screw", | 8281185 | WPW10142283 | 23 | 1 days | |
|
Flipper", | 2198633 | WP2198633 | 24 | 1 days | |
|
Cover, Receiver", | W10173569 | 25 | 1 days | ||
|
Slide, Ice Maker Shut Off", | 2315398 | 26 | 1 days | ||
|
P.C. Board, Receiver", | W10193666 | W10757851 | 27 | 1 days | |
|
Lens", | 2198643 | WP2198643 | 28 | 1 days | |
|
Light Shield", | 2198589 | 29 | 11 days | ||
|
Basket, Tall", | 2301190 | 3 | 11 days | ||
|
Light Lens", | 2212340 | W11298978 | 30 | 11 days | |
|
BRACKET, ICEMAKER COVER", | 2198641 | WP2198641 | 31 | 1 days | |
|
Socket, Light", | 2155597 | W11606038 | 32 | 11 days | |
|
Ladder (Left Side)", | 2198609 | 33 | 11 days | ||
|
Ladder (Right Side)", | 2198610 | 33 | 11 days | ||
|
Shield, Wiring", | 2303234 | 34 | 1 days | ||
|
Track, Basket-Dual (Left Side)", | 2301294 | 4 | 1 days | ||
|
Track, Basket-Dual (Right Side)", | 2301293 | 4 | 1 days | ||
|
Shelf, Slide Out Upper", | 2211746K | 5 | 11 days | ||
|
Basket, Front", | 2195905K | 6 | 11 days | ||
|
Track, Basket (Right Side)", | 2301289 | 7 | 1 days | ||
|
Track, Basket (Left Side)", | 2301290 | 7 | 1 days | ||
|
Shelf (2)", | 2205837K | 8 | 1 days | ||
|
Basket, Sloped", | 2301191 | 9 | 1 days |
