Model# KRSF705HPS00

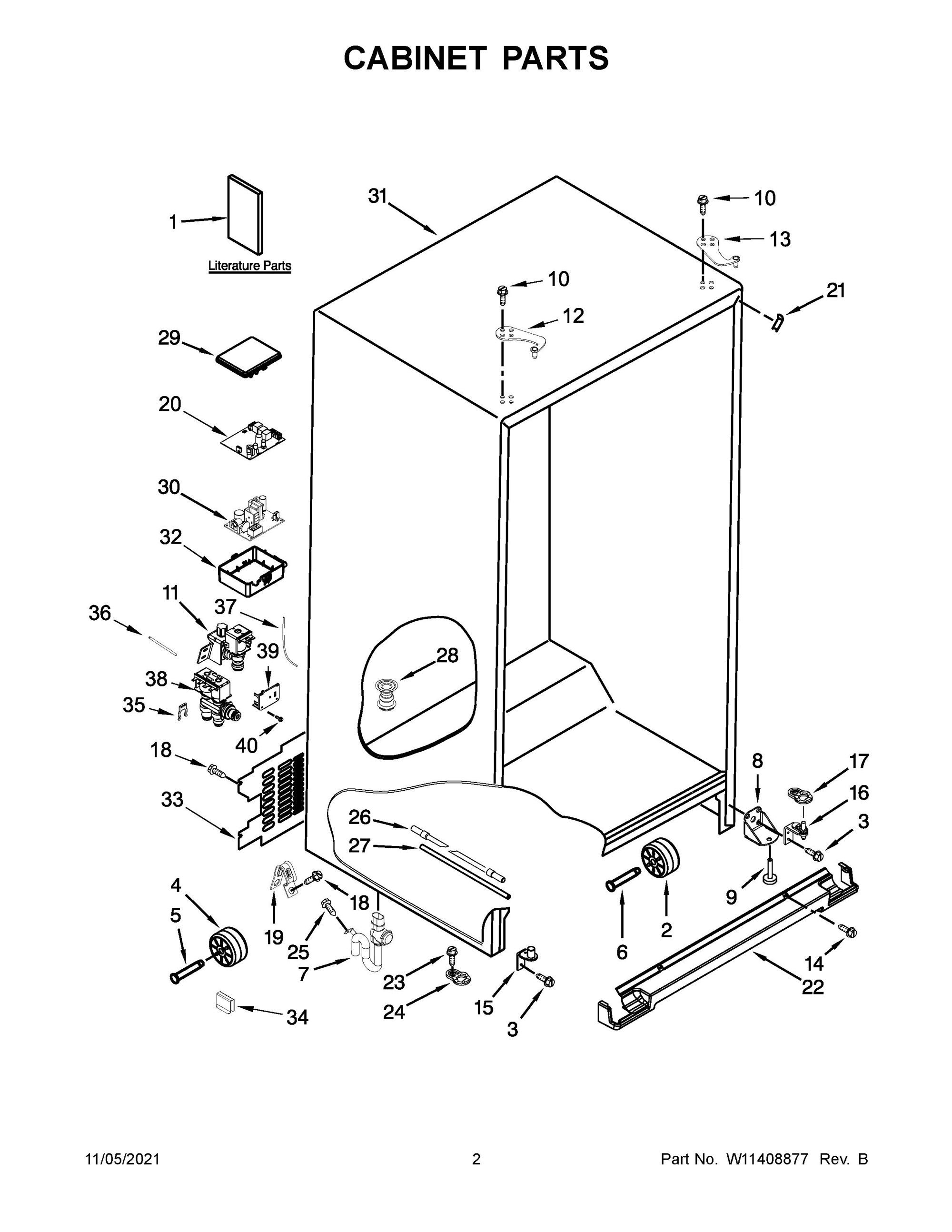

The image and part list below are associated with the component: 02 - CABINET PARTS:
For Support or Ordering By Phone,
Call (800) 816-0715 Mon–Fri 8 am to 9 pm, Sat 8 am to 3 pm EST
| Description | Part# | Substitution# | Diagram Reference | ETA | ||
|---|---|---|---|---|---|---|
|
USE & CARE GUIDE", | W11210614 | 1 | 11 days | ||
|
SCREW (BLACK)", | W10308751 | WPW10308751 | 10 | 1 days | |
|
VALVE, INLET", | W11451511 | W11512399 | 11 | 11 days | |
|
HINGE, TOP (FREEZER) (BLACK)", | W10901052 | 12 | - |
|
|
|
HINGE, TOP (FREEZER) (GRAY)", | W10901054 | W11590581 | 12A | 11 days | |
|
HINGE, TOP (REFRIGERATOR) (BLACK)", | W10901047 | W11568758 | 13 | 11 days | |
|
HINGE, TOP (REFRIGERATOR) (GRAY)", | W10901049 | W11409290 | 13A | 11 days | |
|
SCREW (BLACK)", | W10308487 | WP98008545 | 14 | 1 days | |
|
SCREW (GREY)", | W10308489 | WPW10308489 | 14A | 1 days | |
|
HINGE, BOTTOM (FREEZER) (BLACK)", | W10249950 | 15 | 11 days | ||
|
HINGE, BOTTOM (FREEZER) (GREY)", | W10249952 | 15A | - |
|
|
|
HINGE, BOTTOM (REFRIGERATOR - ALSO INCLUDES DOOR CAM) (BLACK)", | W11084348 | W11311416 | 16 | 11 days | |
|
HINGE, BOTTOM (REFRIGERATOR - ALSO INCLUDES DOOR CAM) (GRAY)", | W11084346 | W11292872 | 16A | 11 days | |
|
CLOSER, DOOR (REFRIGERATOR) (BLACK)", | W10877807 | W11311686 | 17 | 11 days | |
|
CLOSER, DOOR (REFRIGERATOR) (GREY)", | W10877804 | W11311687 | 17A | 11 days | |
|
Screw", | W10141645 | WPW10141645 | 18 | 1 days | |
|
CLAMP, POWER CORD", | W11242280 | W11234470 | 19 | 11 days | |
|
TECH SHEET", | W10751694 | 1A | 11 days | ||
|
ENERGY GUIDE", | W11356052 | 1B | 11 days | ||
|
ROLLER", | 2150304 | WPW10475495 | 2 | 1 days | |
|
CONTROL, ELECTRONIC (POWER SUPPLY)", | W10226427 | WPW10226427 | 20 | 1 days | |
|
COVER, CORNER (BLACK)", | 12587703B | 67003485 | 21 | 1 days | |
|
FILLER, WRAPPER (GREY)", | 12587703AP | WP12587703AP | 21A | 1 days | |
|
GRILLE (BLACK)", | W10713158 | WPW10713158 | 22 | 1 days | |
|
GRILLE (GREY)", | W10713153 | WPW10713153 | 22A | 1 days | |
|
SCREW", | W10142234 | WP489483 | 23 | 1 days | |
|
CLOSER, DOOR (FREEZER) (BLACK)", | W10770895 | 24 | 1 days | ||
|
CLOSER, DOOR (FREEZER) (GREY)", | W10770893 | W10876191 | 24A | 1 days | |
|
Screw", | W10001250 | WP489464 | 25 | 1 days | |
|
TUBE, FILTER INLET", | W10279882 | WPW10279882 | 26 | 1 days | |
|
TUBE, FILTER OUTLET", | W10279885 | WPW10279885 | 27 | 1 days | |
|
FITTING, DRAIN", | W10370680 | 28 | 1 days | ||
|
LID, HV BOX", | 12957702 | W11226688 | 29 | 11 days | |
|
SCREW", | W10297485 | WPW10297485 | 3 | 1 days | |
|
ELECTRONIC CONTROL", | W10797301 | W11172798 | 30 | 11 days | |
|
PEDESTAL (REFER TO COLOR VARIATION PARTS PAGE)", | NP | 31 | 11 days | ||
|
BOX, CONTROL", | W10247993 | WPW10247993 | 32 | 1 days | |
|
COVER, UNIT", | W11453073 | 33 | 11 days | ||
|
CLIP, AXLE RETAINER", | 2223388 | W11545866 | 34 | 11 days | |
|
LOCKING RING (1/4)", | W11175632 | W11676611 | 35 | 11 days | |
|
LOCKING RING (5/16)", | W11175631 | W11678575 | 35A | 11 days | |
|
INSULATING TUBE", | W10811572 | 36 | 11 days | ||
|
TUBE, WATER", | W10238092 | WPW10238092 | 37 | 1 days | |
|
ASSEMBLY, DUAL WATER VALVE", | W10341320 | WPW10341320 | 38 | 1 days | |
|
BRACKET, WATER VALVE", | W10237915 | W10847867 | 39 | 1 days | |
|
ROLLER", | 12477102 | WP67005149 | 4 | 1 days | |
|
SCREW", | W10141625 | WPW10141625 | 40 | - |
|
|
AXLE, ROLLER", | 12477202 | 5 | 11 days | ||
|
RIVET, ROLLER", | 981125 | W11208384 | 6 | 11 days | |
|
TUBE, DRAIN", | W11293073 | W11519143 | 7 | 11 days | |
|
BRACKET, FOOT", | W10900758 | W11266052 | 8 | - |
|
|
BRAKE, ROLLER", | W10141622 | WPW10141622 | 9 | 1 days |
