Model# KRFF507HPS04

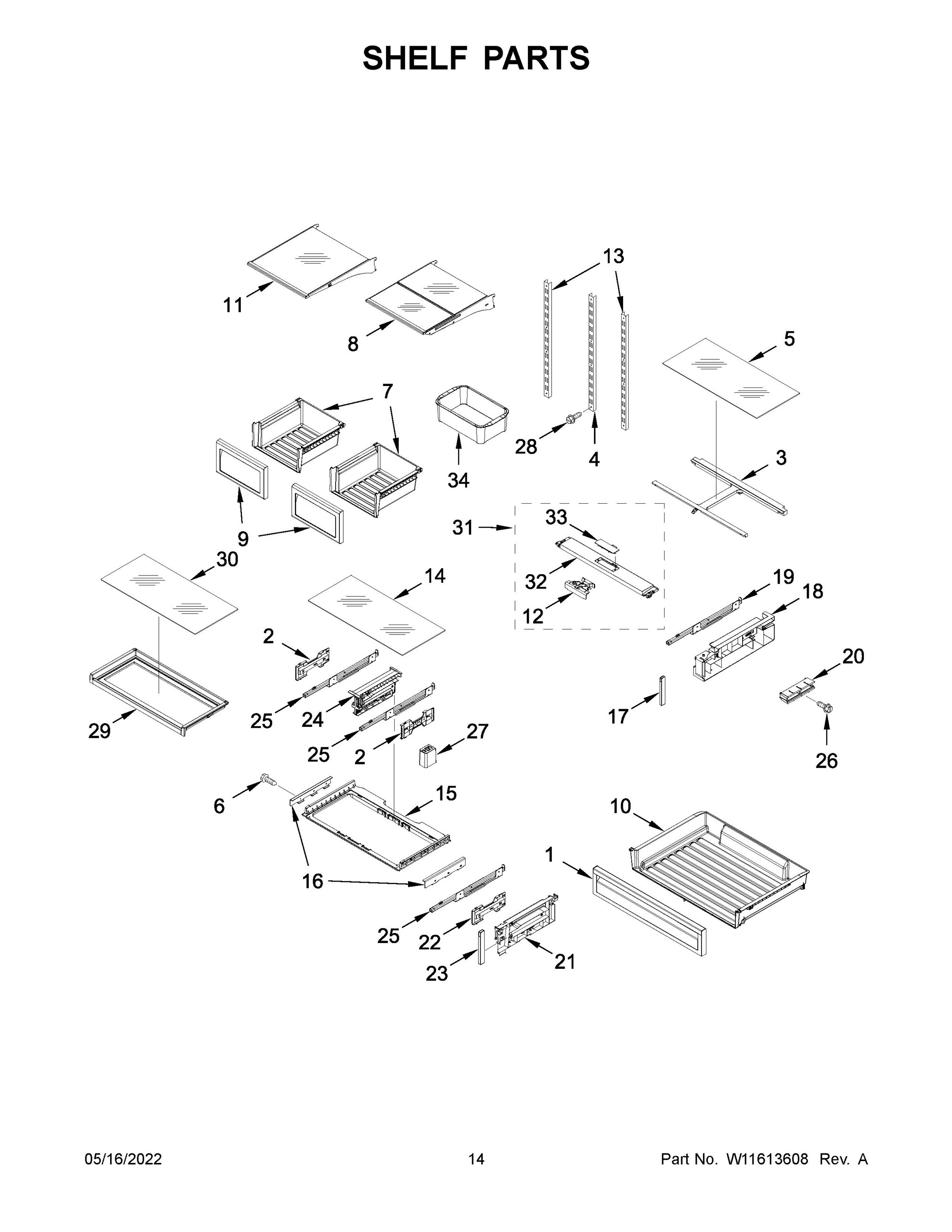

The image and part list below are associated with the component: 08 - SHELF PARTS:
For Support or Ordering By Phone,
Call (800) 816-0715 Mon–Fri 8 am to 9 pm, Sat 8 am to 3 pm EST
| Description | Part# | Substitution# | Diagram Reference | ETA | ||
|---|---|---|---|---|---|---|
|
FRONT, PANTRY", | W10789433 | W11034025 | 1 | 3 days | |
|
PAN, PANTRY", | W10654844 | WPW10654844 | 10 | 3 days | |
|
SHELF, FIXED", | W10756310 | WPW10756310 | 11 | 3 days | |
|
KNOB, PANTRY TEMPERATURE CONTROL", | W10512596 | 12 | - |
|
|
|
LADDER, SIDE", | W10372170 | W11690684 | 13 | 11 days | |
|
GLASS, CRISPER", | W10893773 | W11228031 | 14 | 11 days | |
|
COVER, CRISPER", | W11133643 | 15 | 11 days | ||
|
RAIL, SIDE (LEFT HAND)", | W11133647 | 16 | 11 days | ||
|
RAIL, SIDE (RIGHT HAND)", | W11133648 | 16A | - |
|
|
|
PLATE, PANTRY FRONT", | W10467416 | 17 | 3 days | ||
|
SIDEPLATE, PANTRY (LEFT HAND)", | W10498906 | WPW10498906 | 18 | 3 days | |
|
SIDEPLATE, PANTRY (RIGHT HAND)", | W11124810 | W11225684 | 18A | 11 days | |
|
SLIDE, PANTRY (LEFT HAND)", | W10499289 | 19 | 3 days | ||
|
SLIDE, PANTRY (RIGHT HAND)", | W10499294 | W11759682 | 19A | 11 days | |
|
PLATE, SLIDE CENTER", | W10530317 | 2 | 3 days | ||
|
INSULATION, SIDEPLATE", | W10432697 | 20 | 3 days | ||
|
PLATE, CRISPER (LEFT HAND)", | W11315181 | 21 | - |
|
|
|
PLATE, CRISPER (RIGHT HAND)", | W11315180 | 21A | 11 days | ||
|
PLATE, SIDE", | W10530316 | 22 | 3 days | ||
|
PLATE, CRISPER FRONT", | W10467415 | 23 | 3 days | ||
|
TRACK, CENTER", | W10530307 | 24 | 3 days | ||
|
SLIDE, CRISPER", | W10248819 | W11233912 | 25 | 11 days | |
|
SCREW", | 12990518 | 26 | 11 days | ||
|
SUPPORT, CRISPER", | W10530315 | 27 | 3 days | ||
|
SCREW", | W10423560 | 28 | 3 days | ||
|
ASSEMBLY, PLATTER SHELF", | W11457209 | W11549360 | 29 | 11 days | |
|
SUPPORT, PANTRY", | W11124673 | W11224265 | 3 | - |
|
|
GLASS, PLATTER", | W11169584 | W11228263 | 30 | 11 days | |
|
ASSEMBLY, PANTRY FRONT COVER", | W11124643 | W11228264 | 31 | 11 days | |
|
COVER, PANTRY TOP", | W10554285 | WPW10554285 | 32 | 3 days | |
|
HOUSING, PANTRY TEMPERATURE CONTROL", | W11210629 | W11228266 | 33 | - |
|
|
BUCKET, GALLON", | W10248856 | WPW10248856 | 34 | 3 days | |
|
LADDER, CENTER", | W10248516 | W11690685 | 4 | 11 days | |
|
GLASS, PANTRY", | W10893769 | W11092486 | 5 | 3 days | |
|
SCREW", | W10847999 | 6 | - |
|
|
|
PAN, CRISPER", | W10624433 | W10919809 | 7 | 3 days | |
|
SHELF, TUCK", | W10737427 | WPW10737427 | 8 | 3 days | |
|
FRONT, CRISPER", | W10789490 | W11094883 | 9 | 3 days |
