Model# KRFF507HPS04

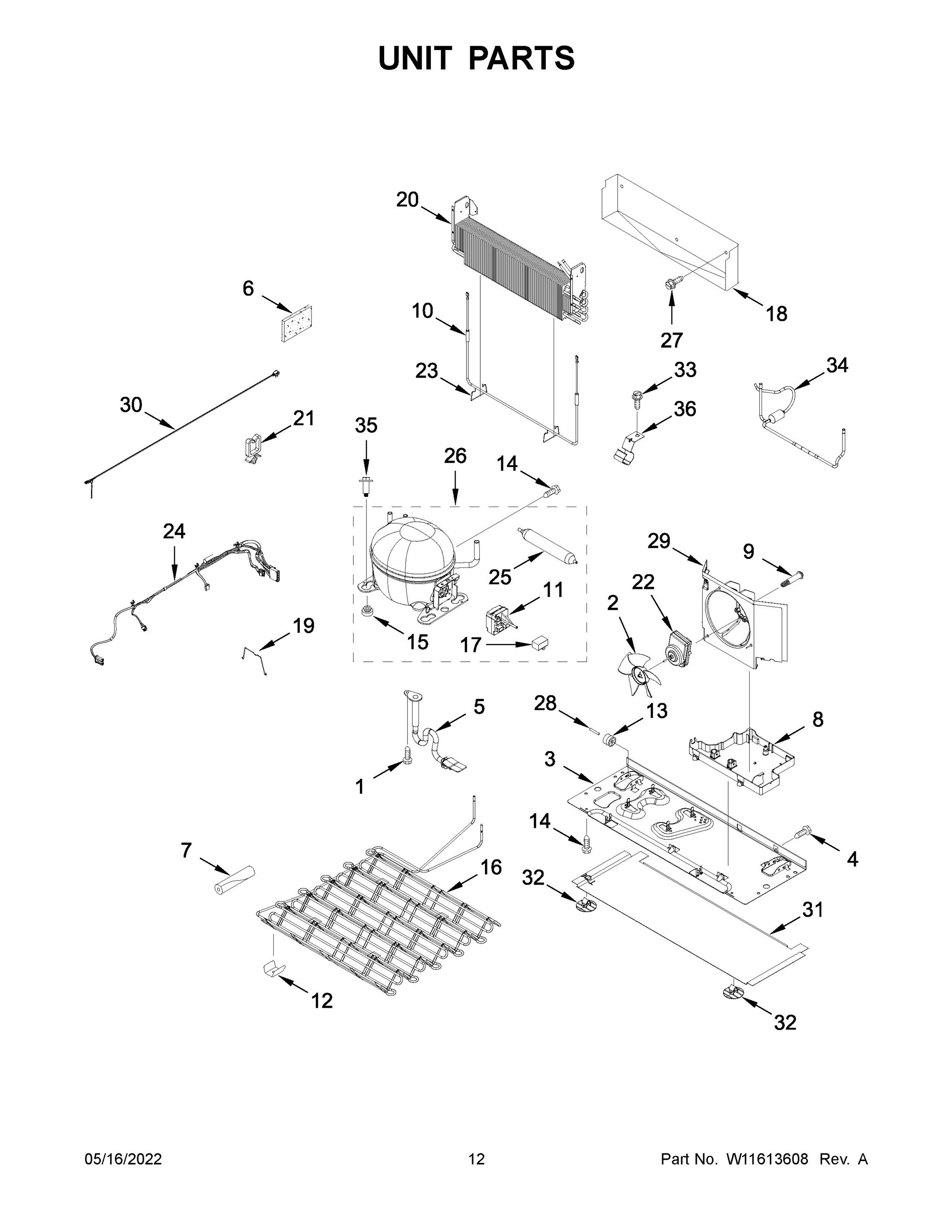

The image and part list below are associated with the component: 07 - UNIT PARTS:
For Support or Ordering By Phone,
Call (800) 816-0715 Mon–Fri 8 am to 9 pm, Sat 8 am to 3 pm EST
| Description | Part# | Substitution# | Diagram Reference | ETA | ||
|---|---|---|---|---|---|---|
|
SCREW", | W10141518 | 1 | 3 days | ||
|
HEATER, DEFROST", | W11553968 | W11575359 | 10 | 11 days | |
|
DEVICE, COMBINATION START (START RELAY AND OVERLOAD)", | W11541370 | W11615506 | 11 | 11 days | |
|
CLIP, CONDENSER", | W10248621 | W10683556 | 12 | 3 days | |
|
ROLLER", | 12477102 | WP67005149 | 13 | 3 days | |
|
Screw", | 12992101 | 14 | 11 days | ||
|
GROMMET", | 10835903 | WPW10169124 | 15 | 3 days | |
|
CONDENSER (ALSO ORDER THE FOLLOWING LOKRING PARTS)", | W11411956 | 16 | 11 days | ||
|
5/4 NR MS 00 (HEAT LOOP TO CONDENSER)", | W11504445 | 16A | - |
|
|
|
7/5 NR MS 00 (COMPRESSOR TO CONDENSER)", | W11504431 | 16B | 11 days | ||
|
CAPACITOR", | W10350564 | WPW10350564 | 17 | 3 days | |
|
TRAY, DRIP", | W11408656 | 18 | 11 days | ||
|
Strap, Bale", | W10174384 | W11661170 | 19 | 11 days | |
|
Blade, Fan", | 2188935 | WP2188935 | 2 | 3 days | |
|
ASSEMBLY, EVAPORATOR (ALSO ORDER THE FOLLOWING LOKRING PARTS)", | W11394386 | W11598434 | 20 | 11 days | |
|
8 NK AL 00 (SUCTION LINE TO EVAPORATOR)", | W11506620 | 20A | 11 days | ||
|
4/1.8 NR MS 00 (CAPILLARY TUBE TO EVAPORATOR)", | W11504450 | 20B | 11 days | ||
|
CLIP", | 2223913 | W11233642 | 21 | 11 days | |
|
MOTOR, CONDENSER FAN", | W10909387 | W11127829 | 22 | 11 days | |
|
CLIP, HEATER", | W11380964 | 23 | - |
|
|
|
HARNESS, UNIT (INCLUDES POWER CORD)", | W11306948 | W11614808 | 24 | 11 days | |
|
DRIER (SERVICE DRIER WITHOUT DYE) (ALSO ORDER THE FOLLOWING LOKRING PARTS)", | W10805035 | W11109499 | 25 | - |
|
|
|
5/4 NR MS 00 (HEAT LOOP TO CONDENSER)", | W11504445 | 25A | - |
|
|
|
5/1.8 NR MS 00 (CAPILLARY TUBE TO DRIER)", | W11504447 | 25B | 11 days | ||
|
COMPRESSOR (ALSO ORDER THE FOLLOWING LOKRING PARTS)", | W11545349 | W11727250 | 26 | 11 days | |
|
|
7/5 NR MS 00 (COMPRESSOR TO CONDENSER)", | W11504431 | 26A | 11 days | ||
|
8.5/8 NR MS 00 (SUCTION TUBE TO COMPRESSOR)", | W11504415 | 26B | 11 days | ||
|
6 NK MS 00 (CHARGING TUBE TO COMPRESSOR)", | W11506621 | 26C | - |
|
|
|
TUBE, CHARGING (1/4" W/ SCHRADER VALVE)", | W11506635 | 26D | 11 days | ||
|
SCREW", | W10142294 | W11544659 | 27 | 11 days | |
|
AXLE, ROLLER", | 12477202 | 28 | 11 days | ||
|
SHROUD", | W10406719 | WPW10406719 | 29 | - |
|
|
BASEPLATE, COMPRESSOR", | W11411853 | 3 | - |
|
|
|
CORD, POWER", | W10738415 | W11254160 | 30 | 11 days | |
|
COVER, CONDENSER (BOTTOM)", | W10278140 | 31 | - |
|
|
|
CLIP, BOTTOM COVER", | W10815861 | 32 | - |
|
|
|
SCREW", | W10141625 | WPW10141625 | 33 | - |
|
|
TUBE, SUCTION", | W11323444 | W11578047 | 34 | 11 days | |
|
SCREW", | W11417341 | 35 | 11 days | ||
|
CLIP, DRIER", | W10281329 | 36 | 3 days | ||
|
Screw", | 12990511 | 67006425 | 4 | - |
|
|
EXTENSION, DRAIN", | W10776917 | W11712703 | 5 | 11 days | |
|
INSULATION, SOUND DEADENING", | 2169104 | W11553819 | 6 | - |
|
|
SLEEVE", | W10303521 | W11751592 | 7 | 11 days | |
|
TRAY, EVAPORATOR", | W10660727 | W11225840 | 8 | 11 days | |
|
SCREW", | W10622701 | W10829281 | 9 | 3 days | |
|
PEDESTAL (REFER TO COLOR VARIATION PARTS PAGE)", | NP | NI | 11 days |
