Model# KRFC704FPS06

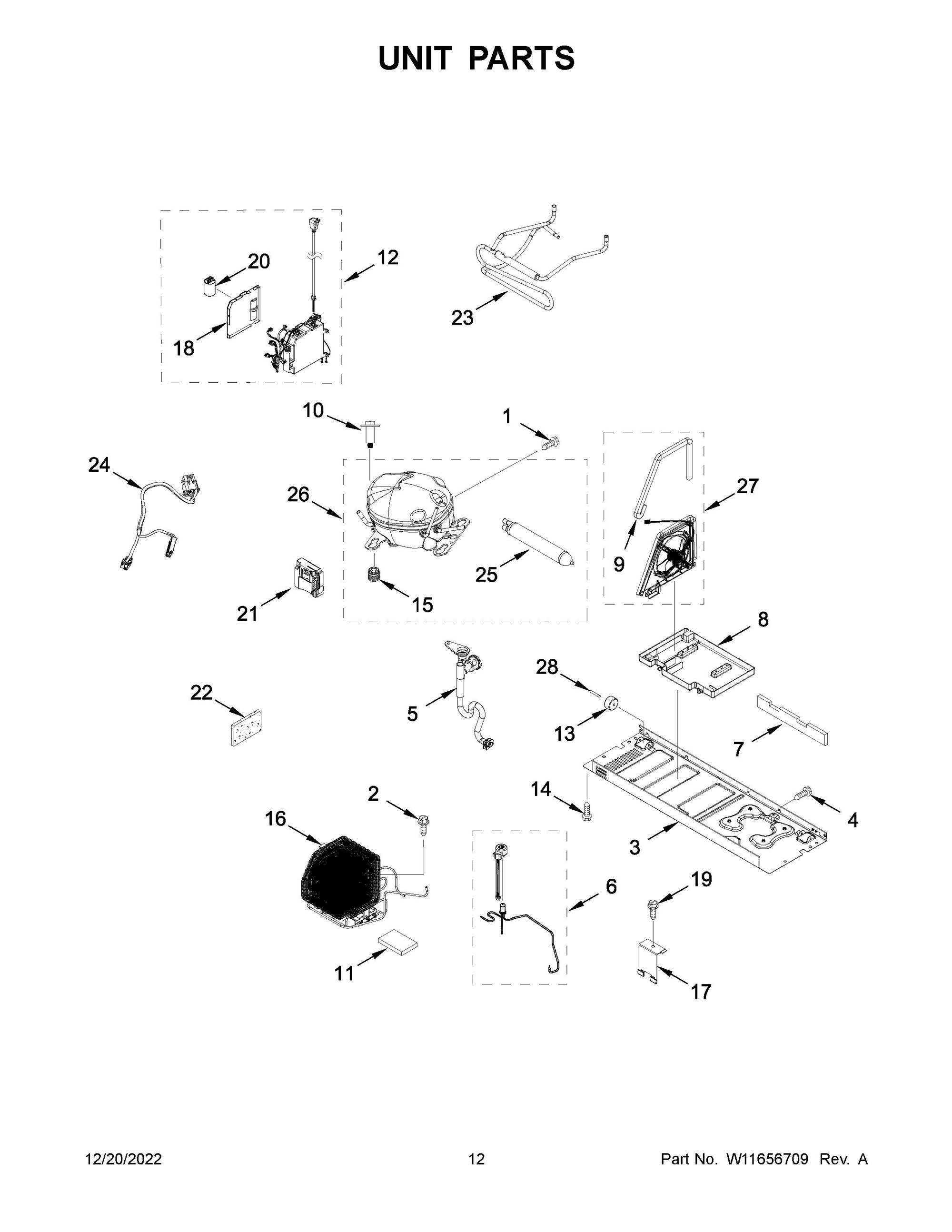

The image and part list below are associated with the component: 07 - UNIT PARTS:
For Support or Ordering By Phone,
Call (800) 816-0715 Mon–Fri 8 am to 9 pm, Sat 8 am to 3 pm EST
| Description | Part# | Substitution# | Diagram Reference | ETA | ||
|---|---|---|---|---|---|---|
|
SCREW", | W10141625 | WPW10141625 | 1 | - |
|
|
SCREW", | W11417341 | 10 | 11 days | ||
|
GROMMET, CONDENSER", | 2319835 | W10852725 | 11 | 4 days | |
|
ASSEMBLY, ORION BOX(INCLUDE WIRING HARNESS FOR COMPRESSOR AND POWER CORD)", | W11434429 | W11567409 | 12 | 11 days | |
|
ROLLER", | W10774846 | 13 | - |
|
|
|
Screw", | 12992101 | 14 | 11 days | ||
|
GROMMET", | 10835903 | WPW10169124 | 15 | 4 days | |
|
CONDENSER (ALSO ORDER THE FOLLOWING LOKRING PARTS)", | W11485773 | W11567329 | 16 | 11 days | |
|
5/4 NR MS 00 (HEAT LOOP TO CONDENSER)", | W11504445 | 16A | 11 days | ||
|
7/5 NR MS 00 (COMPRESSOR TO CONDENSER)", | W11504431 | 16B | 11 days | ||
|
BRACKET, VALVE", | W10391376 | 17 | - |
|
|
|
COVER, HOUSING", | W11198954 | 18 | 11 days | ||
|
Screw", | W10141645 | WPW10141645 | 19 | 4 days | |
|
SCREW", | W10820084 | 2 | 11 days | ||
|
FILTER, EMI", | W10738041 | 20 | 11 days | ||
|
ASSEMBLY, INVERTER BOX", | W11515300 | W11578028 | 21 | 11 days | |
|
INSULATION, SOUND DEADENING", | 2169104 | W11553819 | 22 | 11 days | |
|
ASSEMBLY, SUCTION TUBE", | W11599667 | W11646687 | 23 | 11 days | |
|
HARNESS, UNIT (CONDENSER FAN)", | W11440595 | 24 | - |
|
|
|
DRIER (SERVICE DRIER WITHOUT DYE) (ALSO ORDER THE FOLLOWING LOKRING PARTS)", | W10805035 | W11109499 | 25 | 4 days | |
|
|
5/4 NR MS 00 (HEAT LOOP TO CONDENSER)", | W11504445 | 25A | 11 days | ||
|
5 NK MS 00 (SUCTION LINE TO CONDENSER)", | W11506623 | 25B | 11 days | ||
|
COMPRESSOR (ALSO ORDER THE FOLLOWING LOKRING PARTS)", | W11515413 | W11578205 | 26 | 11 days | |
|
|
7/5 NR MS 00 (COMPRESSOR TO CONDENSER)", | W11504431 | 26A | 11 days | ||
|
8.5/8 NR MS 00 (SUCTION TUBE TO COMPRESSOR)", | W11504415 | 26B | 11 days | ||
|
6 NK MS 00 (CHARGING TUBE TO COMPRESSOR)", | W11506621 | 26C | 11 days | ||
|
TUBE, CHARGING (1/4" W/ SCHRADER VALVE)", | W11506635 | 26D | 11 days | ||
|
ASSEMBLY, CONDENSER FAN", | W11509191 | W11574308 | 27 | 11 days | |
|
AXLE, ROLLER", | 12477202 | 28 | 11 days | ||
|
BASEPLATE", | W11449163 | 3 | 11 days | ||
|
Screw", | 12990511 | 67006425 | 4 | 4 days | |
|
ASSEMBLY, DRAIN EXTENSION", | W10860180 | W11745091 | 5 | 11 days | |
|
ASSEMBLY, 3 WAY VALVE (ALSO ORDER THE FOLLOWING LOKRING PARTS)", | W11507092 | W11574310 | 6 | - |
|
|
3 NK MS 00 (3-WAY VALVE TO RC CAPILLARY TUBE - CUT/SPLICE NEAR OLD VALVE BODY)", | W11506625 | 6A | - |
|
|
|
|
3 NK MS 00 (3-WAY VALVE TO RC CAPILLARY TUBE - CUT/SPLICE NEAR OLD VALVE BODY)", | W11506625 | 6B | - |
|
|
|
|
5/4 NR MS 00 (HEAT LOOP TO CONDENSER)", | W11504445 | 6C | 11 days | ||
|
PAD, SOUND", | W11492318 | W11706809 | 7 | 11 days | |
|
TRAY, EVAPORATOR", | W11490557 | 8 | - |
|
|
|
GASKET, CONDENSER FAN", | W10683708 | 9 | 11 days | ||
|
PEDESTAL (REFER TO COLOR VARIATION PARTS PAGE)", | NP | NI | 11 days |
