Model# KRFC704FPS06

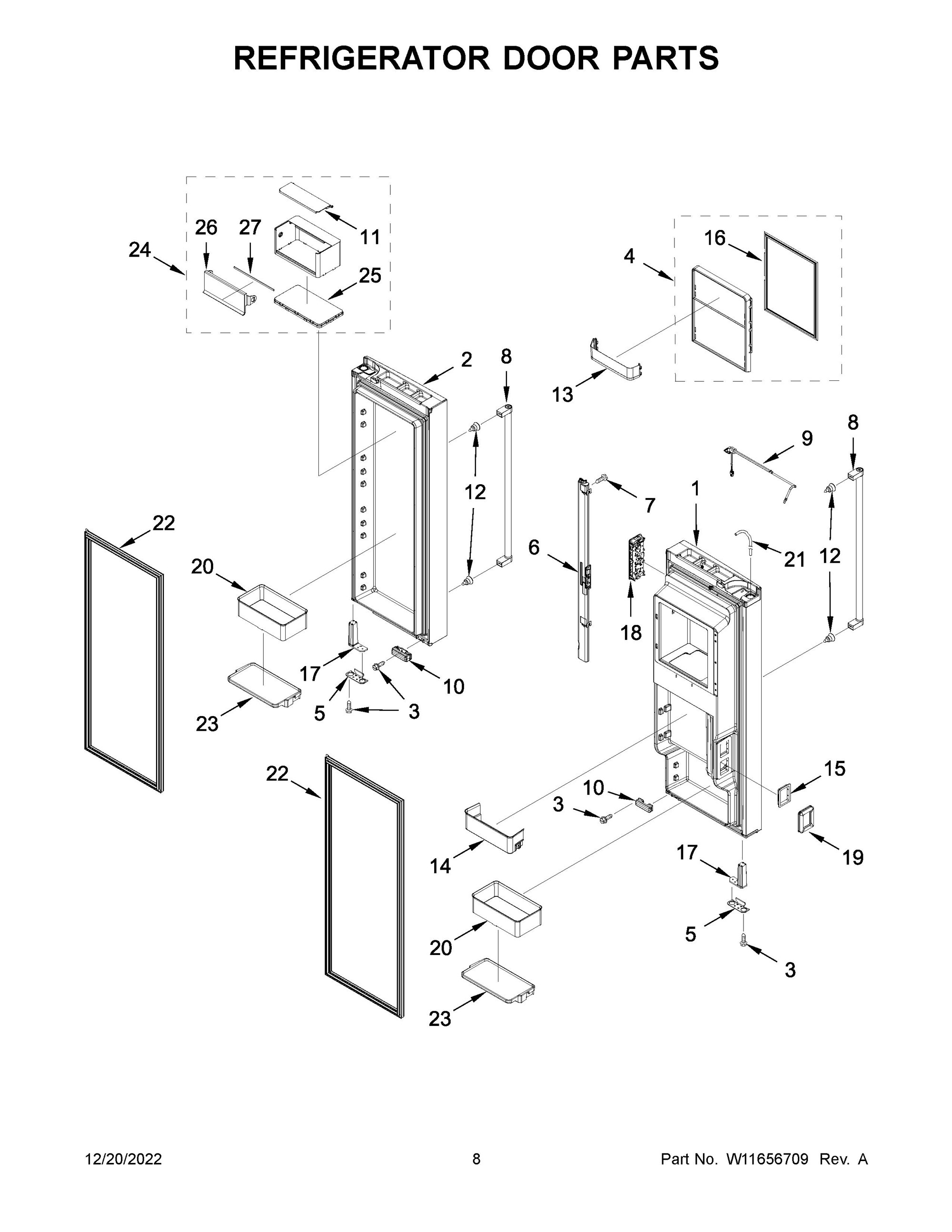

The image and part list below are associated with the component: 05 - REFRIGERATOR DOOR PARTS:
For Support or Ordering By Phone,
Call (800) 816-0715 Mon–Fri 8 am to 9 pm, Sat 8 am to 3 pm EST
| Description | Part# | Substitution# | Diagram Reference | ETA | ||
|---|---|---|---|---|---|---|
|
DOOR, REFRIGERATOR LEFT HAND (STAINLESS (ALSO ORDER ITEM # 18)", | W11518053 | W11610996 | 1 | 11 days | |
|
BUMPER, DOOR (GREY)", | W10798308 | 10 | - |
|
|
|
LID, UTILITY BIN", | W10795524 | 11 | 11 days | ||
|
SCREW", | W11328753 | W11449276 | 12 | 11 days | |
|
TRIVET, ICE COMPARTMENT DOOR", | W10795606 | W10887799 | 13 | 4 days | |
|
BIN, DOOR (MEDIUM)", | W10806697 | W10887800 | 14 | 4 days | |
|
RETAINER, DOOR DUCT", | W10834282 | 15 | 4 days | ||
|
GASKET, ICE DOOR", | W10853441 | W11625086 | 16 | 11 days | |
|
CLOSER, DOOR (LEFT HAND)", | W10714907 | 17 | 4 days | ||
|
CLOSER, DOOR (RIGHT HAND)", | W10714908 | W11188796 | 17A | 11 days | |
|
ASSEMBLY, SPARSH USER INTERFACE", | W11423279 | W11574767 | 18 | 11 days | |
|
GASKET, COOLING DUCT", | W10828418 | W11227369 | 19 | - |
|
|
DOOR, REFRIGERATOR RIGHT HAND (STAINLESS)", | W11424492 | W11449026 | 2 | 11 days | |
|
BIN, DOOR (GALLON)", | W10776705 | W10887801 | 20 | 4 days | |
|
TUBE, DISPENSER WATER", | W11518276 | 21 | 11 days | ||
|
GASKET, DOOR (GREY)", | W10917313 | 22 | 4 days | ||
|
TRIM, GALLON", | W10823512 | W11733335 | 23 | 11 days | |
|
ASSEMBLY, UTILITY BIN", | W10795526 | W10887802 | 24 | 4 days | |
|
BASE, UTILITY BIN", | W10795523 | 25 | 11 days | ||
|
DOOR, UTILITY BIN (INCLUDES GASKET)", | W10803630 | 26 | 4 days | ||
|
GASKET, UTILITY BIN", | W10795525 | 27 | 11 days | ||
|
SCREW", | W10238319 | WPW10238319 | 3 | 4 days | |
|
ASSEMBLY, ICE DOOR", | W11554923 | W11594927 | 4 | - |
|
|
BRACKET, DOOR STOP", | W10763415 | W11243377 | 5 | 11 days | |
|
MULLION, DOOR (GREY)", | W11529693 | W11649966 | 6 | - |
|
|
Screw", | 12990204 | W11311945 | 7 | 11 days | |
|
HANDLE, DOOR (STAINLESS)", | W11339182 | W11483532 | 8 | 11 days | |
|
PEDESTAL (REFER TO COLOR VARIATION PARTS PAGE)", | NP | 9 | 11 days |
