Model# KDTE704DSS1

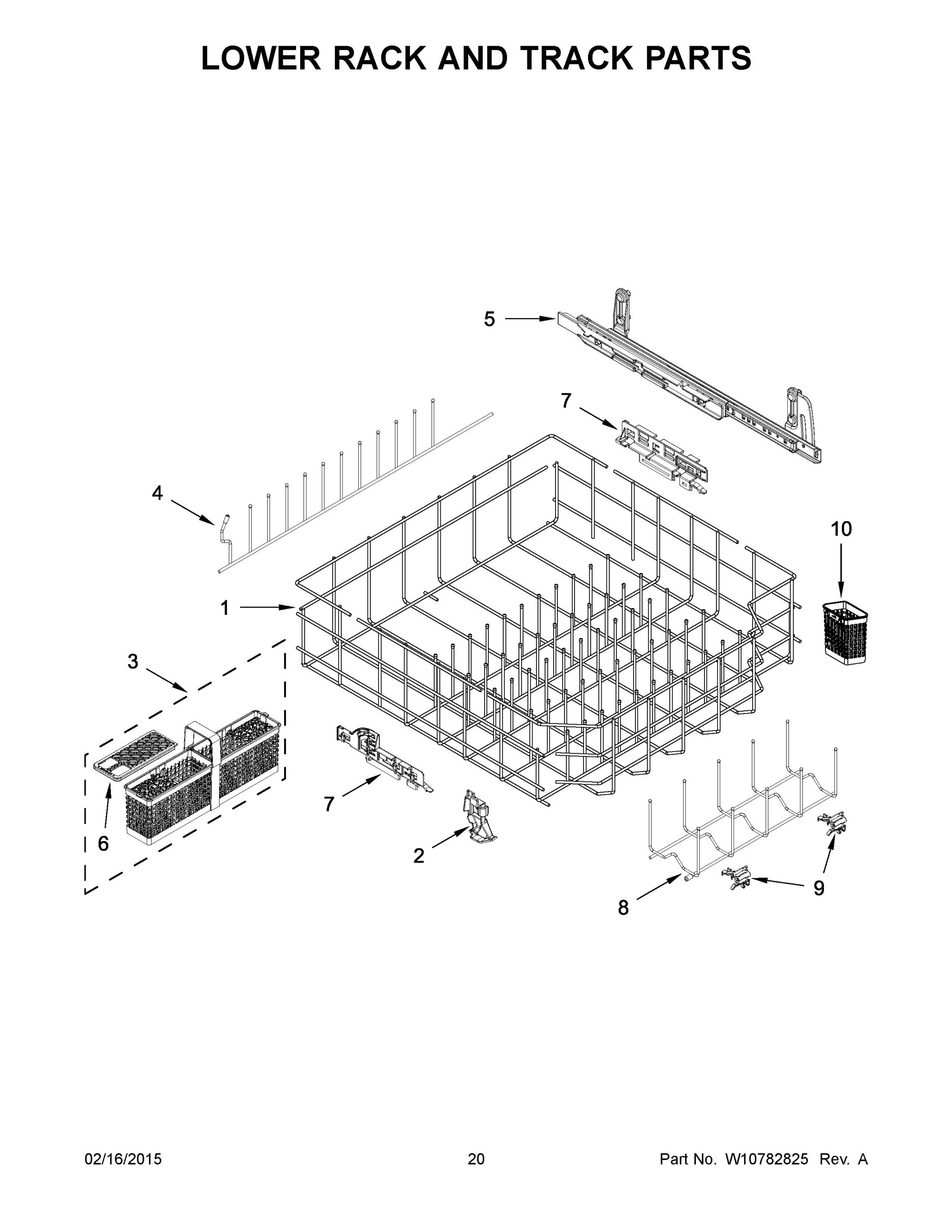

The image and part list below are associated with the component: 11 - LOWER RACK AND TRACK PARTS:
For Support or Ordering By Phone,
Call (800) 816-0715 Mon–Fri 8 am to 9 pm, Sat 8 am to 3 pm EST
| Description | Part# | Substitution# | Diagram Reference | ETA | ||
|---|---|---|---|---|---|---|
|
DISHRACK, LOWER", | W10554948 | W11498446 | 1 | 11 days | |
|
BASKET, UTENSIL", | W10482109 | WPW10482109 | 10 | 1 days | |
|
SUPPORT, FRONT SKI (LEFT HAND)", | W10473813 | W11193827 | 2 | 11 days | |
|
SUPPORT, FRONT SKI (RIGHT HAND)", | W10473817 | W11197023 | 2A | 11 days | |
|
BASKET ASSEMBLY, SILVERWARE", | W10473836 | W11767095 | 3 | 11 days | |
|
TINE ROW, FOLD DOWN", | W10056272 | 4 | 11 days | ||
|
TRACK ASSEMBLY (LEFT HAND)", | W10579131 | W10822165 | 5 | 1 days | |
|
TRACK ASSEMBLY (RIGHT HAND)", | W10579132 | W10822166 | 5A | 1 days | |
|
LID, SILVERWARE BASKET", | W10473835 | WPW10473835 | 6 | 1 days | |
|
SUPPORT, REAR CARRIAGE (LEFT HAND)", | W10473807 | WPW10473807 | 7 | 1 days | |
|
SUPPORT, REAR CARRIAGE (RIGHT HAND)", | W10473809 | WPW10473809 | 7A | 1 days | |
|
TINE ROW, SLIDING", | W10554952 | 8 | 1 days | ||
|
RETAINER, SLIDING TINE ROW", | W10585593 | W11213333 | 9 | 11 days |
