Model# KBFS25EWMS8

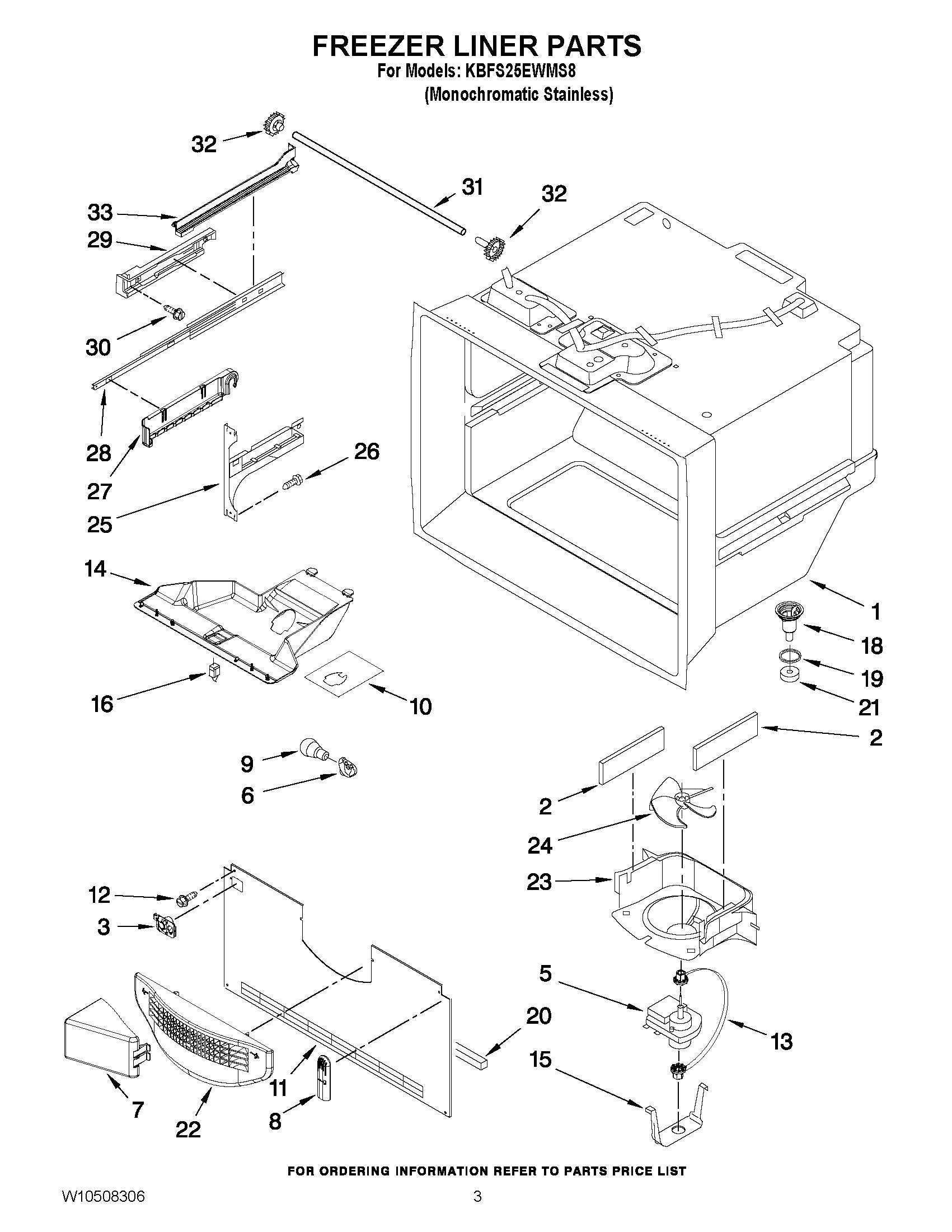

The image and part list below are associated with the component: 02 - FREEZER LINER PARTS:
For Support or Ordering By Phone,
Call (800) 816-0715 Mon–Fri 8 am to 9 pm, Sat 8 am to 3 pm EST
| Description | Part# | Substitution# | Diagram Reference | ETA | ||
|---|---|---|---|---|---|---|
|
LINER (NOT A SEVICEABLE PART)", | NP | 1 | 11 days | ||
|
FOIL, HOUSING", | W10277466 | W11469652 | 10 | 11 days | |
|
COVER, EVAPORATOR", | W10308416 | W11727809 | 11 | 11 days | |
|
SCREW (4)", | 12990511 | 67006425 | 12 | 1 days | |
|
Grommet", | W10121318 | 13 | 1 days | ||
|
MODUEL, LIGHT", | W10277025 | WPW10277025 | 14 | 1 days | |
|
CLIP, EVAP. MOTOR", | 13058002 | 15 | 1 days | ||
|
Switch, Light", | 12466105 | 16 | 11 days | ||
|
FUNNEL, DRAIN", | D7753903 | W10815413 | 18 | - |
|
|
SEAL", | M0500703 | WPM0500703 | 19 | 1 days | |
|
Gasket, Foam", | A3189392 | W10856123 | 2 | 1 days | |
|
GASKET, BOTTOM", | A3189396 | W11159728 | 20 | 1 days | |
|
Gasket", | B8381501 | WPB8381501 | 21 | 1 days | |
|
Grille, Fz Air", | 13024803 | WPW10175909 | 22 | 1 days | |
|
SHROUD, EVAP.FAN", | 13057901 | WPW10167023 | 23 | 1 days | |
|
Blade, Fan (Evaporator)", | 2169142 | WP2169142 | 24 | 1 days | |
|
BRACKET, DOOR (LEFT)", | W10330994 | WPW10330994 | 25 | 1 days | |
|
BRACKET, DOOR (RIGHT)", | W10330995 | WPW10330995 | 25 | 1 days | |
|
Screw (8)", | 12990521 | WP98165 | 26 | 1 days | |
|
CRADLE, BASKET (LEFT)", | W10280608 | WPW10280608 | 27 | 1 days | |
|
CRADLE, BASKET (RIGHT)", | W10280613 | WPW10280613 | 27 | 1 days | |
|
Slide, Drawer (2)", | W10120018 | W11658402 | 28 | 11 days | |
|
ADAPTER, SLIDE (LEFT)", | W10284684 | WPW10284684 | 29 | 1 days | |
|
ADAPTER, SLIDE (RIGHT)", | W10284685 | WPW10284685 | 29 | 1 days | |
|
GUIDE, FILL TUBE", | 12932103 | W11448709 | 3 | 11 days | |
|
Screw (6)", | 12990501 | WP489474 | 30 | 1 days | |
|
SHAFT", | 12812903WD | W11028221 | 31 | 1 days | |
|
GEAR,(L & R)", | 12002497 | 32 | 1 days | ||
|
RACK, SIDE (LH)", | W10284694 | W11489993 | 33 | 11 days | |
|
RACK, SIDE (RH)", | W10284695 | W11489994 | 33 | 11 days | |
|
Motor, Evaporator", | W10128551 | WPW10128551 | 5 | 1 days | |
|
SOCKET, LIGHT", | 12570701V | W11447232 | 6 | 11 days | |
|
DIVERTER, AIR", | W10157765 | 7 | 1 days | ||
|
Cover, Thermistor", | 12815301 | WP67003924 | 8 | 1 days | |
|
BULB, LIGHT", | W10311505 | W11679940 | 9 | 11 days |
