Model# JS48NXFXDE00

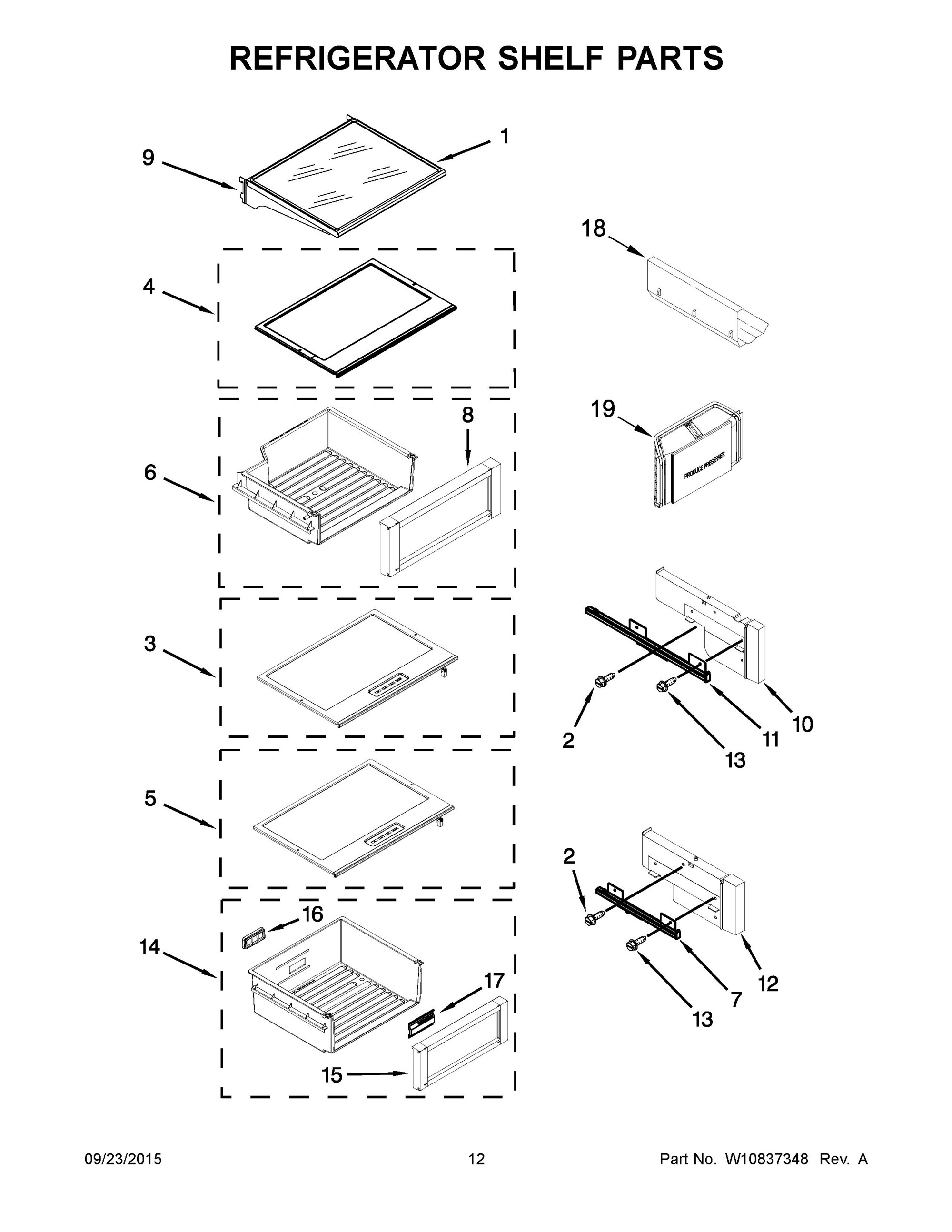

The image and part list below are associated with the component: 07 - REFRIGERATOR SHELF PARTS:
For Support or Ordering By Phone,
Call (800) 816-0715 Mon–Fri 8 am to 9 pm, Sat 8 am to 3 pm EST
| Description | Part# | Substitution# | Diagram Reference | ETA | ||
|---|---|---|---|---|---|---|
|
ASSEMBLY, SHELF | W10187538 | WPW10187538 | 1 | 5 days | |
|
SPACER, CRISPER | W10769876 | 10 | - |
|
|
|
SLIDE, CRISPER (LEFT HAND) | W10794952 | W10844010 | 11 | - |
|
|
SLIDE, CRISPER (RIGHT HAND) | W10732303 | 11A | - |
|
|
|
SPACER, MEAT | W10769855 | 12 | - |
|
|
|
SCREW (RIGHT HAND) | W10215666 | 13 | 5 days | ||
|
ASSEMBLY, CRISPER PAN | W10732457 | W10884291 | 14 | 11 days | |
|
FRONT, CRISPER PAN | W10789216 | W10881986 | 15 | 5 days | |
|
DUCT, DELI PAN | W10787392 | 2307810 | 16 | 5 days | |
|
DEFLECTOR, AIR | W10787391 | 17 | 11 days | ||
|
RACK, WINE | W10701859 | 18 | 11 days | ||
|
ASSEMBLY, PRODUCE PRESERVER | W10593207 | 19 | 11 days | ||
|
SCREW (LEFT HAND) | 8533928 | WP8533928 | 2 | 5 days | |
|
ASSEMBLY, CRISPER COVER (UPPER) | W10789236 | W11370879 | 3 | 11 days | |
|
ASSEMBLY, MEAT PAN COVER | W10785392 | W10836033 | 4 | 11 days | |
|
ASSEMBLY, CRISPER COVER (LOWER) | W10789235 | 5 | - |
|
|
|
ASSEMBLY, MEAT PAN | W10789212 | W10884292 | 6 | - |
|
|
SLIDE, MEAT PAN (LEFT HAND) | W10794953 | W10844011 | 7 | 11 days | |
|
SLIDE, MEAT PAN (RIGHT HAND) | W10732727 | 7A | 5 days | ||
|
FRONT, MEAT PAN | W10789220 | W10881984 | 8 | 11 days | |
|
SIDEARM, SHELF | W10605575 | W11690161 | 9 | 11 days |
