Model# JMW3430DS01

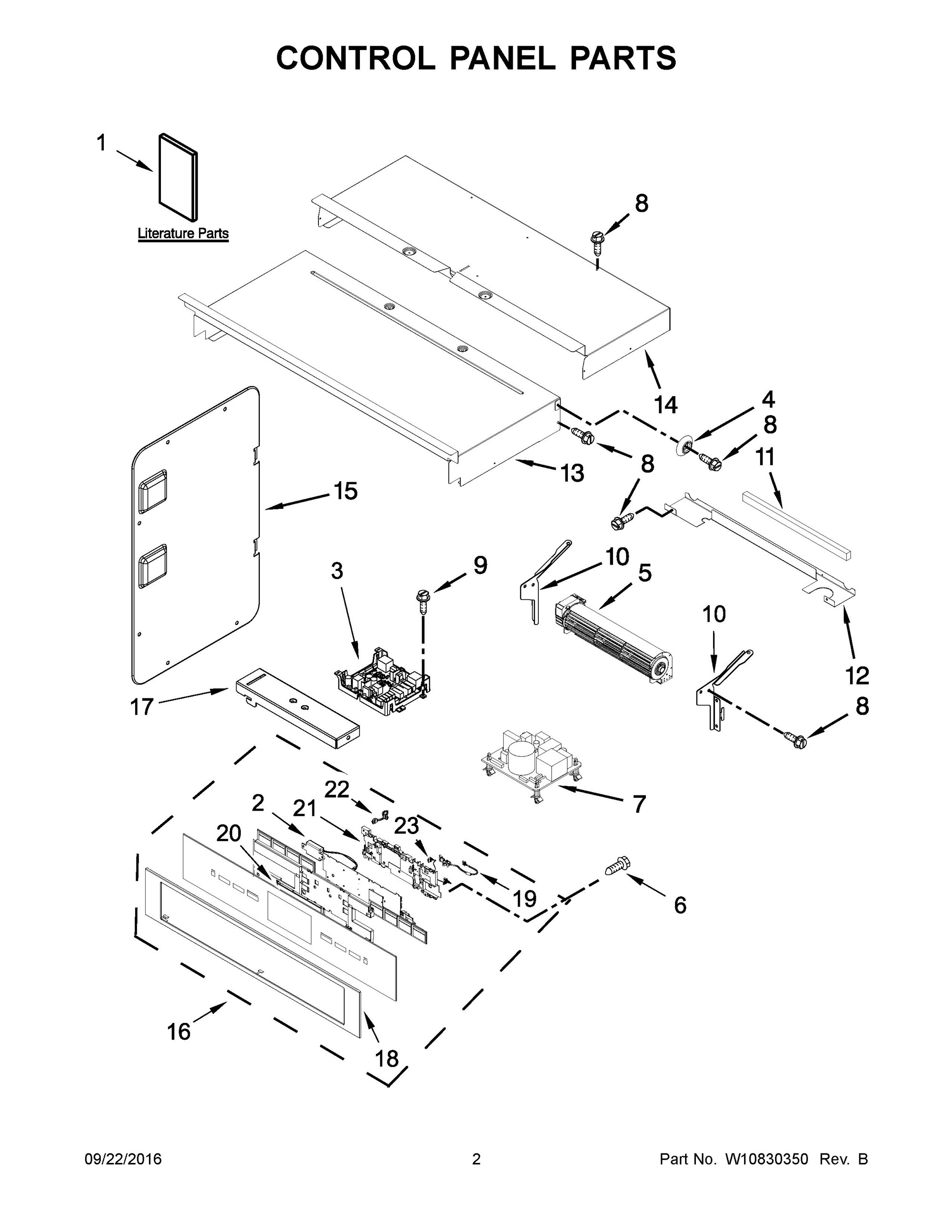

The image and part list below are associated with the component: 02 - CONTROL PANEL PARTS:
For Support or Ordering By Phone,
Call (800) 816-0715 Mon–Fri 8 am to 9 pm, Sat 8 am to 3 pm EST
| Description | Part# | Substitution# | Diagram Reference | ETA | ||
|---|---|---|---|---|---|---|
|
GUIDE, USE & CARE | W10754337 | 1 | 11 days | ||
|
BRACKET, BLOWER (LEFT) | W10655463 | 10 | 4 days | ||
|
BRACKET, BLOWER (RIGHT) | W10655462 | 10A | 4 days | ||
|
BLOCK, FOAM | 4451758 | W10491987 | 11 | 4 days | |
|
CHASSIS, BACK DIVIDER | W10655465 | 12 | 11 days | ||
|
CHASSIS, COVER TOP FRONT 30 | W10318158 | 13 | 4 days | ||
|
CHASSIS, COVER TOP BACK 30 | W10588732 | 14 | 11 days | ||
|
CHASSIS, COMBO SIDE | W10655467 | 15 | 11 days | ||
|
ASSEMBLY, CONTROL PANEL (INCLUDES OVERLAY) (BLACK) | W10524558 | W11236901 | 16 | - |
|
|
ASSEMBLY, CONTROL PANEL (INCLUDES OVERLAY) (STAINLESS) | W10713558 | W11236885 | 16A | 11 days | |
|
PLATE, MOUNTING TRANSFORMER | W10323725 | 17 | 4 days | ||
|
SKIN, CONTROL PANEL (STAINLESS) | W10444132 | 18 | 4 days | ||
|
HARNESS, POWER SUPPLY | W10575307 | 19 | 4 days | ||
|
GUIDE, USE & CARE (MICROWAVE) | W10754339 | 1A | 11 days | ||
|
INSTRUCTIONS, INSTALLATION | W10768184 | 1B | 11 days | ||
|
INSTRUCTIONS, INSTALLATION (ENGLISH/FRENCH) | W10075750 | 1C | 11 days | ||
|
SHEET, TECH (ENGLISH) | W10767738 | 1D | 11 days | ||
|
ASSEMBLY, SPEAKER | W10568405 | W11123146 | 2 | 4 days | |
|
DISPLAY, LCD | W10710545 | 20 | 11 days | ||
|
HOUSING | W10668510 | 21 | 4 days | ||
|
HARNESS, KEYPAD (LEFT TO CENTER) | W10566973 | 22 | 4 days | ||
|
HARNESS, KEYPAD (RIGHT TO CENTER) | W10524350 | 23 | 4 days | ||
|
MANAGER, APPLIANCE | W10635086 | W10821712 | 3 | - |
|
|
SPACER, LATERAL | W10618105 | 4 | 11 days | ||
|
BLOWER | W10669823 | W11245567 | 5 | 11 days | |
|
SCREW | W10489172 | 6 | - |
|
|
|
BOARD, POWER SUPPLY | W10260060 | WPW10260060 | 7 | 4 days | |
|
Screw | 7101P426-60 | WP90767 | 8 | 4 days | |
|
Screw | 7101P434-60 | WP7101P434-60 | 9 | 4 days | |
|
Clip, Harness | 313438 | NI | 11 days | ||
|
CLAMP, CONDUIT | 4448664 | NI | 4 days | ||
|
FOLLOWING PARTS NOT ILLUSTRATED | N/P | NI | 11 days | ||
|
SCREW, GROUNDING | 4450800 | NI | 4 days | ||
|
HARNESS, FAN & TURNTABLE | W10389372 | NI | 4 days | ||
|
STRAP, GROUND | W10392129 | W11226264 | NI | 11 days | |
|
HARNESS, INVERTER | W10406103 | W10874060 | NI | 11 days | |
|
HARNESS, SIGNAL | W10523786 | NI | - |
|
|
|
HARNESS, COMMUNICATION | W10523917 | W11171471 | NI | - |
|
|
HARNESS, MAIN | W10571361 | W11171472 | NI | 11 days | |
|
HARNESS, DOOR LATCH | W10775068 | W11132989 | NI | 11 days |
