Model# JKP37G*L1

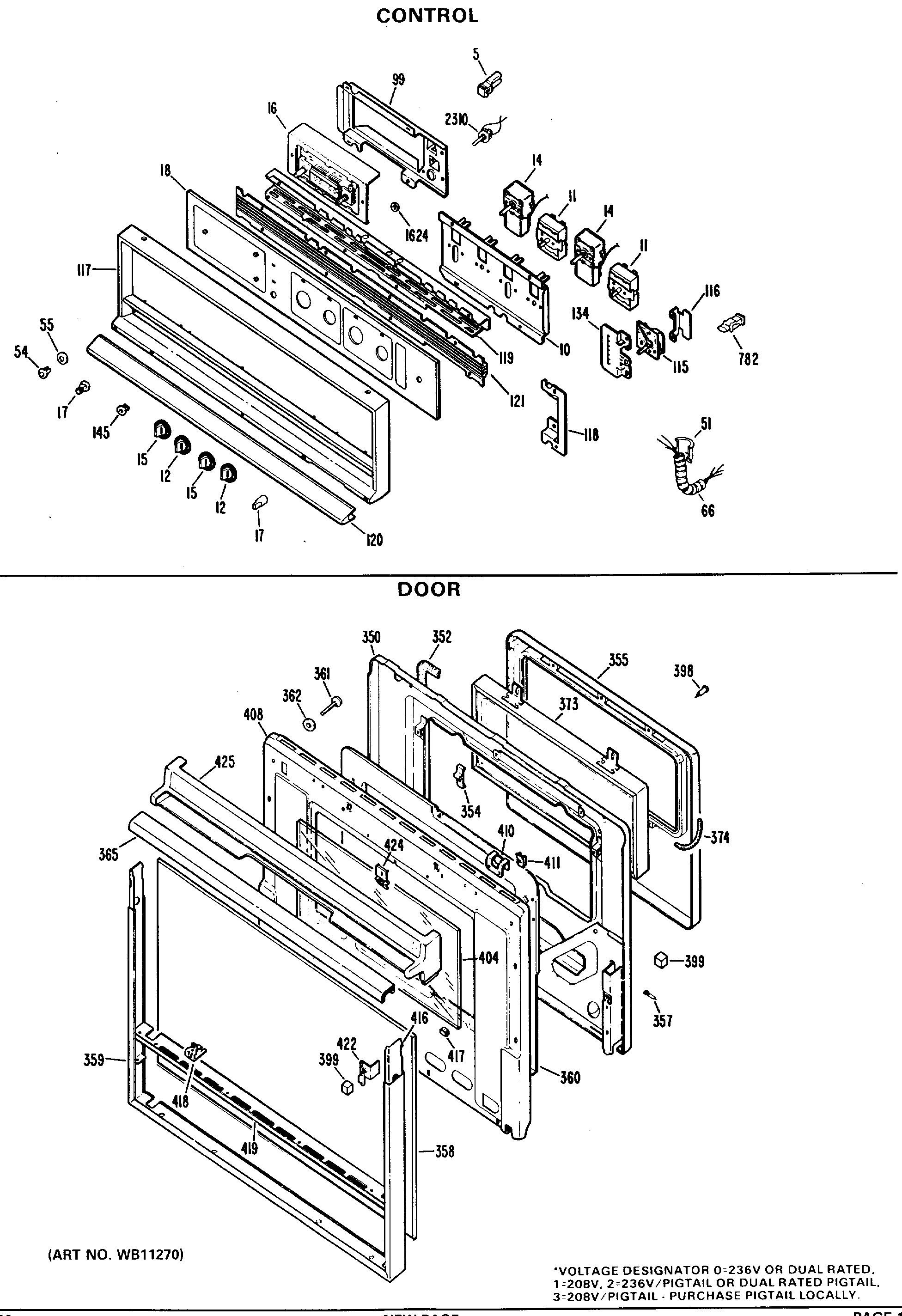

The image and part list below are associated with the component: CONTROL:
For Support or Ordering By Phone,
Call (800) 816-0715 Mon–Fri 8 am to 9 pm, Sat 8 am to 3 pm EST
| Description | Part# | Substitution# | Diagram Reference | ETA | ||
|---|---|---|---|---|---|---|
|
NUT MTG INSTRUMENT BRKTS | WB01X5220 | 10 | 11 days | ||
|
BRACKET INSTRUMENT | WB02X3453 | 10 | 11 days | ||
|
SWITCH, OVEN | WB22X5140 | 11 | 11 days | ||
|
SWITCH, OVEN | WB22X5143 | 11 | 1 days | ||
|
CIRCUIT BOARD ASM-THERMO | WB20X0052 | 115 | 11 days | ||
|
CIRCUIT BOARD BRACKET | WB02X3148 | WB2X3148 | 116 | 11 days | |
|
TRIM | WB07X1122 | 117 | 11 days | ||
|
BRACKET MEAT THERMO | WB02X2407 | 118 | 11 days | ||
|
DEFLECTOR | WB02X1973 | 119 | 11 days | ||
|
KNOB THERMOSTAT | WB03X5735 | WB3X5730 | 12 | 1 days | |
|
KNOB OVEN SWITCH | WB03X5733 | WB3X5729 | 12 | 1 days | |
|
NOSE CONTROL TRIM | WB07X6973 | WB7X6973 | 120 | 11 days | |
|
GRILLE | WB07X6974 | 121 | 11 days | ||
|
FACEPLATE SHAFT ASM | WB07X6971 | 134 | 11 days | ||
|
THERMOSTAT, DUAL | WB24X0176 | WB21X5320 | 14 | 11 days | |
|
|
THERMOSTAT, DUAL | WB24X0184 | WB21X5320 | 14 | 11 days | |
|
SLEEVE | WB02X6937 | 14 | 11 days | ||
|
TRIM SWITCH | WB02X7802 | 145 | 11 days | ||
|
KNOB OVEN SWITCH | WB03X5734 | WB3X5734 | 15 | 1 days | |
|
KNOB THERMOSTAT | WB03X5736 | WB3X5736 | 15 | 1 days | |
|
TIMER ELECTRONIC | WB19X5292 | 16 | 11 days | ||
|
NUT MTG LIGHT SWITCH | WB01X0245 | 1624 | 11 days | ||
|
KNOB TIMER & MEAT METER | WB03X5709 | WB3X5709 | 17 | 11 days | |
|
PAD | WB02X3232 | 18 | 11 days | ||
|
CRYSTAL | WB36X5640 | 18 | 11 days | ||
|
SWITCH | WB24X5241 | WB24X5258 | 2310 | 1 days | |
|
INSULATION DOOR | WB02X3312 | WB2X3312 | 350 | 11 days | |
|
REFLECTOR PANEL | WB02X3314 | 350 | 11 days | ||
|
DOOR LINER | WB55X5318 | 350 | 11 days | ||
|
GASKET DOOR | WB02X3138 | WB2X3138 | 352 | 1 days | |
|
STRIKE SPRING | WB09X0154 | WB9X154 | 354 | 11 days | |
|
REFLECTOR FOIL | WB02X2276 | 355 | 11 days | ||
|
INSULATION DOOR | WB02X3313 | 355 | 11 days | ||
|
SCREW NAIL POINT | WB01X0558 | WB1X558D | 357 | 1 days | |
|
GLASS WHITE | WB36X5641 | 358 | 11 days | ||
|
TRIM FRAME-LOWER DOOR | WB07X1150 | WB7X1150 | 359 | 11 days | |
|
TRIM FRAME-UPPER DOOR | WB07X1152 | 359 | 11 days | ||
|
GUARD INSULATION | WB49X0354 | 360 | 11 days | ||
|
SCREW | WZ04X0425 | 361 | 11 days | ||
|
WASHER CONTOURED | WB01X0119 | 362 | 11 days | ||
|
GRIP ASM HANDLE | WB15X5176 | 365 | 11 days | ||
|
WINDOW PACK | WB36X5495 | 373 | 11 days | ||
|
GASKET WINDOW | WB02X3048 | WB2X3048 | 374 | 11 days | |
|
SCR SHOULDER | WB01X0600 | WB1X600D | 398 | 1 days | |
|
PAD | WB02X3285 | WB2X3285 | 399 | 11 days | |
|
CRYSTAL WINDOW | WB36X5595 | 404 | 11 days | ||
|
REFLECTOR PANEL | WB02X7208 | 408 | 11 days | ||
|
PANEL MIDDLE DOOR | WB55X0419 | WB55X419 | 408 | 11 days | |
|
BRACKET PANEL | WB02X3310 | 410 | 11 days | ||
|
SPEEDNUT BRACKET | WB01X0439 | 411 | 11 days | ||
|
BRACE SIDE RH | WB02X3334 | 416 | 11 days | ||
|
BRACE SIDE LH | WB02X3335 | 416 | 11 days | ||
|
CLIP CRYSTAL | WB02X3332 | 417 | 11 days | ||
|
BRACKET CRYSTAL | WB02X3333 | 418 | 11 days | ||
|
BRACE BOTTOM | WB02X3336 | 419 | 11 days | ||
|
CLIP DOOR | WB02X7209 | WB2X7209 | 422 | 11 days | |
|
CLAMP CRYSTAL | WB02X3331 | 424 | 11 days | ||
|
TRIM TOP DOOR | WB07X7029 | 425 | 11 days | ||
|
LAMP 118V | WB02X1608 | WB2X1608 | 5 | 1 days | |
|
NEON LAMP 240V | WB02X3468 | WB2X3468 | 5 | 1 days | |
|
SLEEVE CONDUIT | WB02X1409 | WB2X1409 | 51 | 11 days | |
|
CLAMP CONDUIT | WB02X3061 | 51 | 11 days | ||
|
BUSHING GUIDE | WB02X7803 | WB2X7803 | 54 | 11 days | |
|
RETAINER BUSHING | WB02X7804 | WB2X7804 | 55 | 11 days | |
|
TERMINAL BLK ASM (2 PIN) | WB17X5060 | 782 | 1 days | ||
|
BRACKET TIMER | WB02X7720 | 99 | 11 days | ||
|
INSTALL INSTRUCTIONS | 31-0672 | 9999 | 11 days | ||
|
MANUAL USERS | 49-8003 | 9999 | 11 days |
