Model# JJW3830DS02

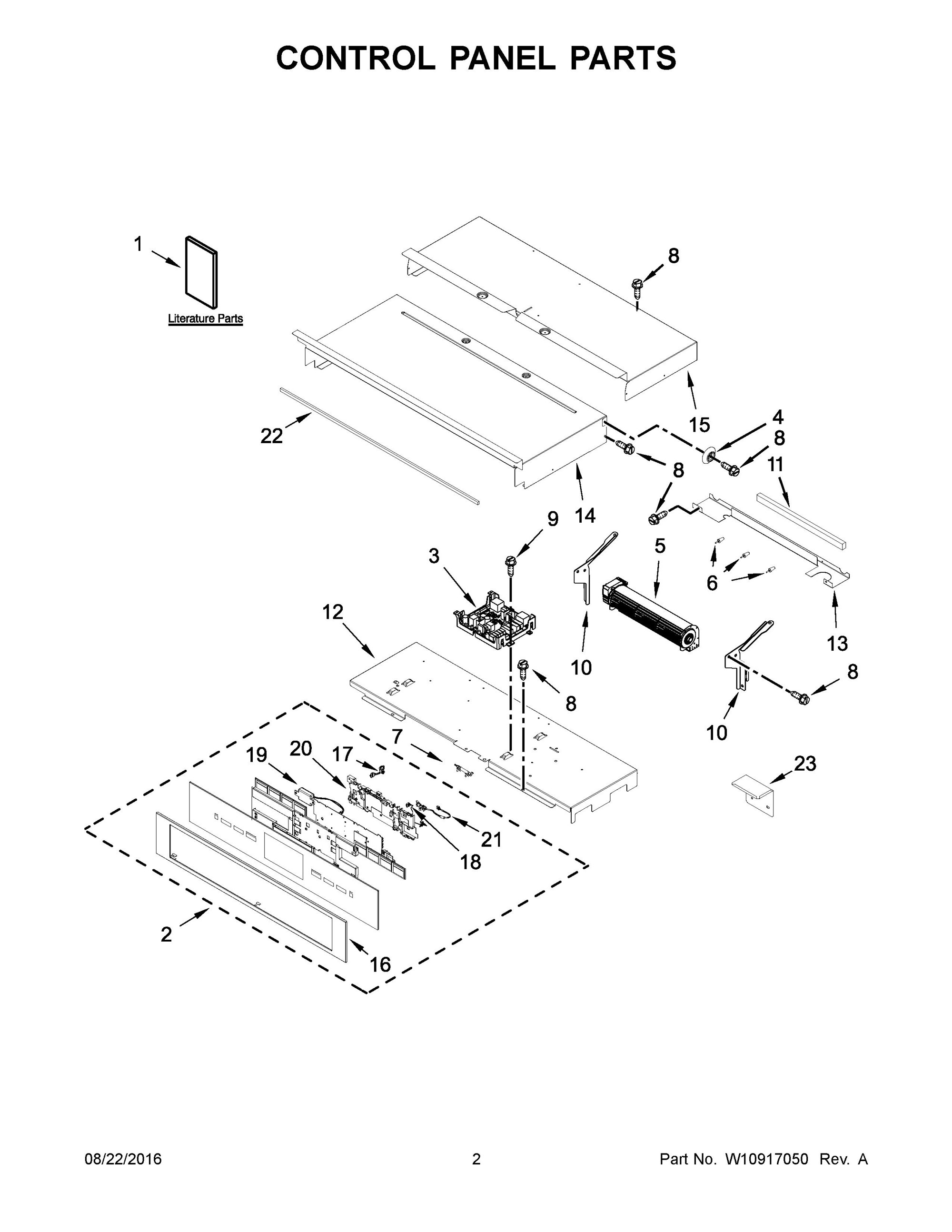

The image and part list below are associated with the component: 02 - CONTROL PANEL PARTS:
For Support or Ordering By Phone,
Call (800) 816-0715 Mon–Fri 8 am to 9 pm, Sat 8 am to 3 pm EST
| Description | Part# | Substitution# | Diagram Reference | ETA | ||
|---|---|---|---|---|---|---|
|
GUIDE, USE & CARE | W10754337 | 1 | 11 days | ||
|
BRACKET, BLOWER (LEFT) | W10655463 | 10 | 3 days | ||
|
BRACKET, BLOWER (RIGHT) | W10655462 | 10A | 3 days | ||
|
BLOCK, FOAM | 4451758 | W10491987 | 11 | 3 days | |
|
TRAY, ELECTRONIC | W10864102 | 12 | 3 days | ||
|
CHASSIS, BACK DIVIDER | W10655465 | 13 | 11 days | ||
|
CHASSIS, COVER TOP FRONT 30 | W10444125 | 14 | 11 days | ||
|
CHASSIS, COVER TOP BACK 30 | W10667383 | W10904156 | 15 | 11 days | |
|
SKIN, CONTROL PANEL (STAINLESS) | W10444132 | 16 | 3 days | ||
|
HARNESS, KEYPAD (LEFT TO CENTER) | W10566973 | 17 | 3 days | ||
|
HARNESS, KEYPAD (RIGHT TO CENTER) | W10524350 | 18 | 3 days | ||
|
ASSEMBLY, SPEAKER | W10568405 | W11123146 | 19 | - |
|
|
INSTRUCTIONS, INSTALLATION | W10790014 | 1A | 11 days | ||
|
GUIDE, WIFI CONNECTIVITY | W10787928 | 1B | 11 days | ||
|
SHEET, TECH | W10767737 | 1C | 11 days | ||
|
ASSEMBLY, CONTROL PANEL (STAINLESS) | W10876350 | W11232121 | 2 | 11 days | |
|
HOUSING | W10668510 | 20 | 3 days | ||
|
HARNESS, POWER SUPPLY | W10575307 | 21 | 3 days | ||
|
GASKET, RUBBER | W10728475 | 22 | - |
|
|
|
SHIELD, WIFI ACCESS | W10810292 | 23 | 11 days | ||
|
MANAGER, APPLIANCE | W10635086 | W10821712 | 3 | - |
|
|
SPACER, LATERAL | W10618105 | 4 | 11 days | ||
|
BLOWER | W10669823 | W11245567 | 5 | 11 days | |
|
BUMPER | W10351295 | 6 | - |
|
|
|
FUSE, THERMAL | W10782120 | W11610133 | 7 | 11 days | |
|
Screw | 7101P426-60 | WP90767 | 8 | 3 days | |
|
Screw | 7101P434-60 | WP7101P434-60 | 9 | 3 days | |
|
Clip, Harness | 313438 | NI | 11 days | ||
|
CLAMP, CONDUIT | 4448664 | NI | 3 days | ||
|
FOLLOWING PARTS NOT ILLUSTRATED | N/P | NI | 11 days | ||
|
SCREW, GROUNDING | 4450800 | NI | 3 days | ||
|
STRAP, LEAD GROUND | 4452400 | NI | 3 days | ||
|
BRACKET, HARNESS | W10655464 | NI | - |
|
|
|
JUMPER TOD | W10679413 | NI | 3 days | ||
|
HARNESS, EOL | W10562910 | W11699910 | NI | 11 days | |
|
HARNESS, SIGNAL | W10522152 | W11132990 | NI | 11 days | |
|
HARNESS, MAIN | W10571362 | W11132997 | NI | 11 days | |
|
ASSEMBLY, ANTENNA & HOUSING | W10766153 | NI | 3 days | ||
|
HARNESS, DOOR LATCH | W10775068 | W11132989 | NI | - |
|
