Model# JIS1450DS1

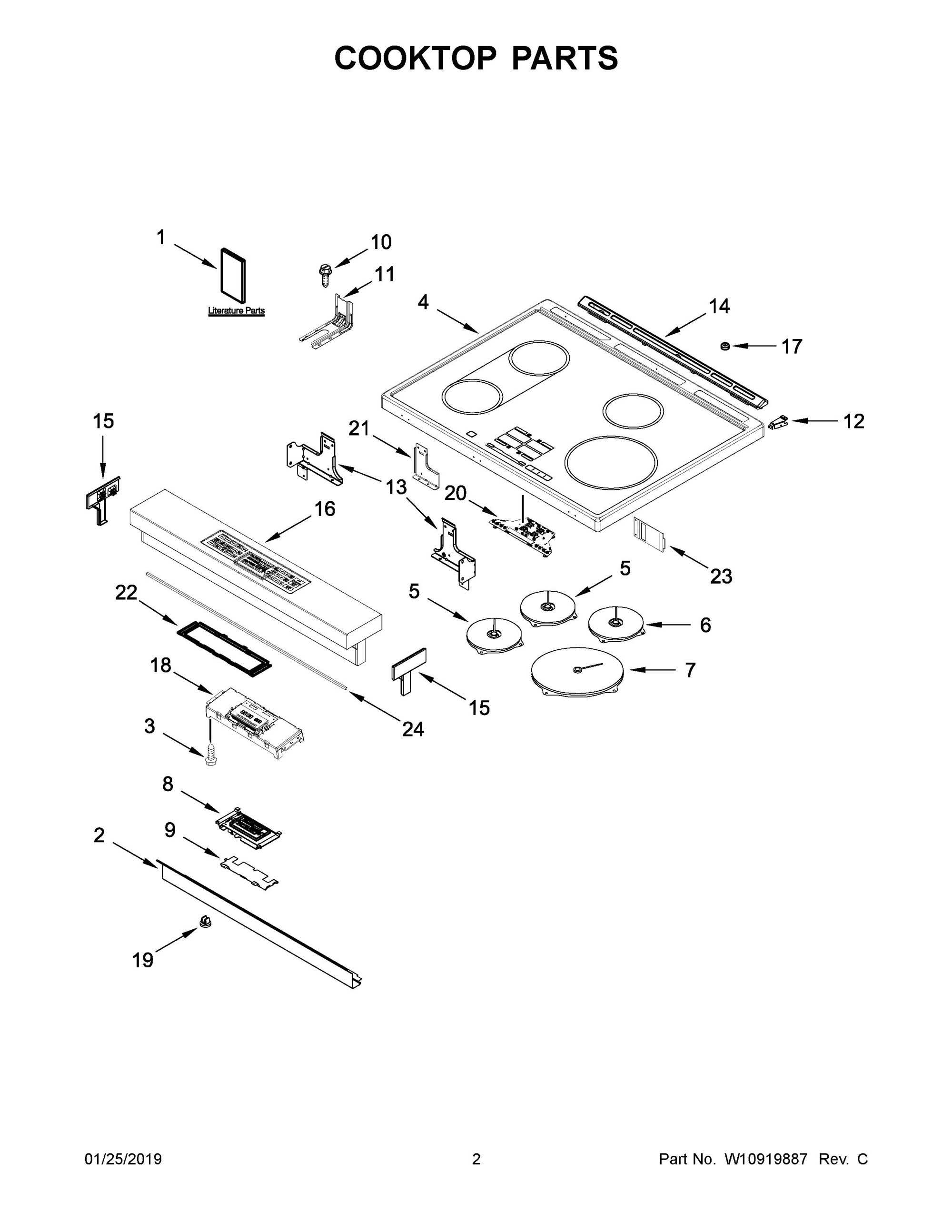

The image and part list below are associated with the component: 02 - COOKTOP PARTS:
For Support or Ordering By Phone,
Call (800) 816-0715 Mon–Fri 8 am to 9 pm, Sat 8 am to 3 pm EST
| Description | Part# | Substitution# | Diagram Reference | ETA | ||
|---|---|---|---|---|---|---|
|
INSTALLATION, INSTRUCTIONS | W10744014 | 1 | 11 days | ||
|
SCREW, ANTI-TIP KIT | 7101P485-60 | WP7101P485-60 | 10 | 3 days | |
|
BRACKET, ANTI-TIP | W10606241 | W11502257 | 11 | 11 days | |
|
BRACE, CORNER (LEFT) | W10162253 | 12 | 11 days | ||
|
BRACE, CORNER (RIGHT) | W10162252 | 12A | 11 days | ||
|
SUPPORT, COOKTOP (RIGHT) | W10289169 | 13 | 3 days | ||
|
SUPPORT, COOKTOP (LEFT) | W10289170 | 13A | 3 days | ||
|
VENT, TRIM TOP (STAINLESS) | W10636529 | W11170796 | 14 | 1 days | |
|
ENDCAP (STAINLESS (LEFT)) | W10557751 | 15 | 3 days | ||
|
ENDCAP (STAINLESS (RIGHT)) | W10557754 | 15A | 3 days | ||
|
CONSOLE (STAINLESS) | W10901072 | W11043339 | 16 | 3 days | |
|
BUMPER | W10664705 | W11104127 | 17 | 11 days | |
|
CONTROL, ELECTRONIC (MAXWELL) | W11254198 | W11296051 | 18 | 11 days | |
|
GROMMET | W10645947 | W11025100 | 19 | 3 days | |
|
USE AND CARE GUIDE | W10896673 | 1A | 11 days | ||
|
SHEET, TECH | W10844271 | 1B | 11 days | ||
|
WIRING DIAGRAM | W10902659 | 1C | 11 days | ||
|
GUIDE, QUICK START (ENGLISH) | W10400064 | 1D | 11 days | ||
|
GUIDE, QUICK START (FRENCH) | W10400065 | 1E | 11 days | ||
|
BRACKET, MOUNTING (STAINLESS) | W10743281 | 2 | - |
|
|
|
USER, INTERFACE | W10808072 | W11677629 | 20 | - |
|
|
BRACKET, CONSOLE (CENTER) | W10598048 | 21 | 3 days | ||
|
BRACKET , CONTROL | W10557780 | 22 | 3 days | ||
|
SHIELD, KEYPAD | W10752321 | 23 | 3 days | ||
|
GASKET, CONSOLE/COOKTOP | W10612719 | W10802441 | 24 | 3 days | |
|
Screw | 3196178 | 3 | 11 days | ||
|
COOKTOP (BLACK) | W10536318 | W10751485 | 4 | 3 days | |
|
ELEMENT (LEFT FRONT AND LEFT REAR) | W10636723 | W11672688 | 5 | 11 days | |
|
HOTPLATE (RIGHT REAR) | W10410580 | WPW10410580 | 6 | 3 days | |
|
ELEMENT (RIGHT FRONT) | W10410578 | WPW10410578 | 7 | 3 days | |
|
ASSEMBLY, DISPLAY | W10759324 | W11120573 | 8 | 11 days | |
|
BRACKET, CONTROL | W10558372 | 9 | - |
|
|
|
Clip, Wire | 3196520 | 3400964 | NI | 3 days | |
|
FOLLOWING PARTS NOT ILLUSTRATED | N/P | NI | 11 days | ||
|
HARNESS, DISPLAY | W10598170 | W11226772 | NI | 11 days | |
|
HARNESS, KEYPAD | W10575120 | W11025616 | NI | 3 days | |
|
HARNESS, BAKE DRAWER | W10580316 | NI | - |
|
