Model# JGS9900CDR00

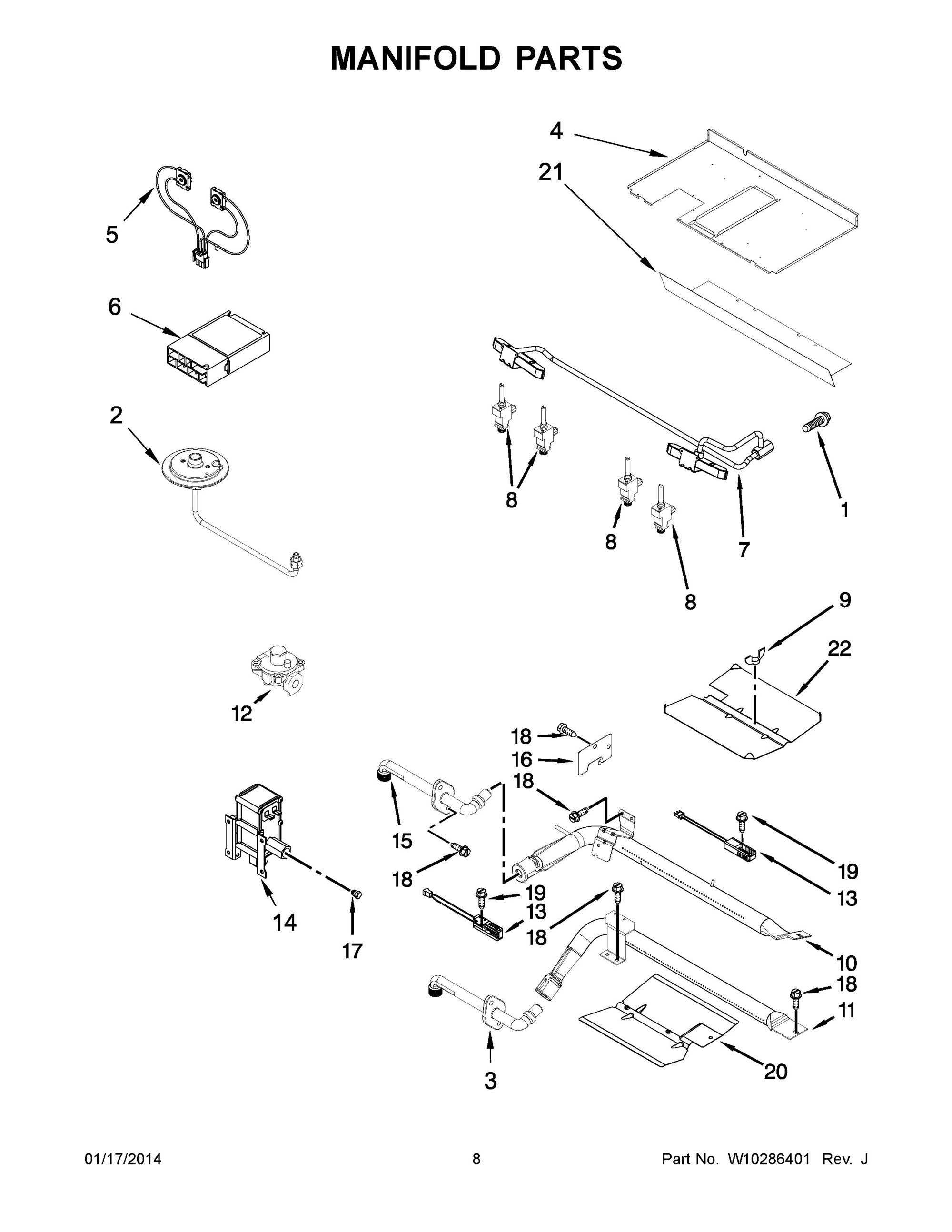

The image and part list below are associated with the component: 05 - MANIFOLD PARTS:
For Support or Ordering By Phone,
Call (800) 816-0715 Mon–Fri 8 am to 9 pm, Sat 8 am to 3 pm EST
| Description | Part# | Substitution# | Diagram Reference | ETA | ||
|---|---|---|---|---|---|---|
|
SCREW | 7101P639-60 | WP7101P639-60 | 1 | 5 days | |
|
BURNER, BROILER | 7505P344-60 | 74011731 | 10 | 5 days | |
|
Burner, Bake | 7505P324-60 | 74010094 | 11 | 5 days | |
|
REGULATOR, PRESSURE | 7510P100-60 | 74011878 | 12 | 5 days | |
|
IGNITOR, BAKE | 7432P143-60 | W11596211 | 13 | 11 days | |
|
IGNITOR, BROIL | 7432P140-60 | W10826866 | 13 | 5 days | |
|
VALVE, BAKE/BROIL | 7501P193-60 | WP74006345 | 14 | 5 days | |
|
FITTING, BROILER | 7507P421-60 | 74011738 | 15 | 5 days | |
|
COVER,IGNITOR WIRE | 4005F421-45 | 16 | 5 days | ||
|
Nut, Mounting | 7103P195-60 | 74007451 | 17 | 5 days | |
|
SCREW | 7101P502-60 | WP3387230 | 18 | 5 days | |
|
Screw | 7101P282-60 | WP4159193 | 19 | 5 days | |
|
HOLDER, ORIFICE (LEFT FRONT) | 7527P061-60 | WP7527P061-60 | 2 | 5 days | |
|
HOLDER, ORIFICE (RIGHT REAR) | 7527P085-60 | 74011741 | 2 | - |
|
|
HOLDER, ORIFICE (LEFT REAR) | 7527P086-60 | WP7527P086-60 | 2 | 3 days | |
|
HOLDER, ORIFICE (RIGHT FRONT) | 7527P087-60 | WP7527P087-60 | 2 | 5 days | |
|
Baffle, Bake Burner | 3601F339-45 | 20 | 5 days | ||
|
INSULATOR, BAFFLE | 7003P154-60 | 21 | 11 days | ||
|
Baffle, Broil Burner | 3601F358-45 | 22 | 11 days | ||
|
FITTING, BAKE | 7507P410-60 | 74011737 | 3 | 5 days | |
|
BOTTOM, BURNER | 4011F476-51 | 4 | 11 days | ||
|
SWITCH, RE-IGNITION (LEFT FRONT & LEFT REAR) | 7450P003-60 | WP74011647 | 5 | 5 days | |
|
SWITCH, RE-IGNITION (LEFT FRONT & LEFT REAR) | 7450P004-60 | WP74011648 | 5 | 5 days | |
|
MODULE, SPARK | 7431P038-60 | WPW10475147 | 6 | 5 days | |
|
PIPE,MANIFOLD | 7513P473-60 | 7 | - |
|
|
|
VALVE (LEFT REAR) | 7502P471-60 | 12002269 | 8 | 5 days | |
|
VALVE (RIGHT REAR) | 7502P470-60 | 12002268 | 8 | 5 days | |
|
VALVE (RIGHT FRONT) | 7502P548-60 | 74011867 | 8 | 5 days | |
|
VALVE (LEFT FRONT) | 7502P493-60 | 8 | 11 days | ||
|
NUT, WING | 7103P030-60 | 9 | 5 days | ||
|
TUBING, SUPPLY | 7506P464-60 | NI | 11 days | ||
|
TUBING, INNER DUAL | 7506P479-60 | 74011734 | NI | 11 days | |
|
TUBING (BROILER FITTING TO VALVE) | 7506P475-60 | NI | 5 days | ||
|
TUBING, CROSSOVER | 7506P482-60 | NI | 5 days | ||
|
TUBING, OUTER DUAL | 7506P480-60 | NI | 5 days | ||
|
KIT, LP GAS | W10258123 | NI | 11 days | ||
|
TUBING, BAKE | 7506P481-60 | 74011736 | NI | - |
|
|
FOLLOWING PARTS NOT ILLUSTRATED, | N/P | NI | 11 days |
