Model# JGS9900CDF01

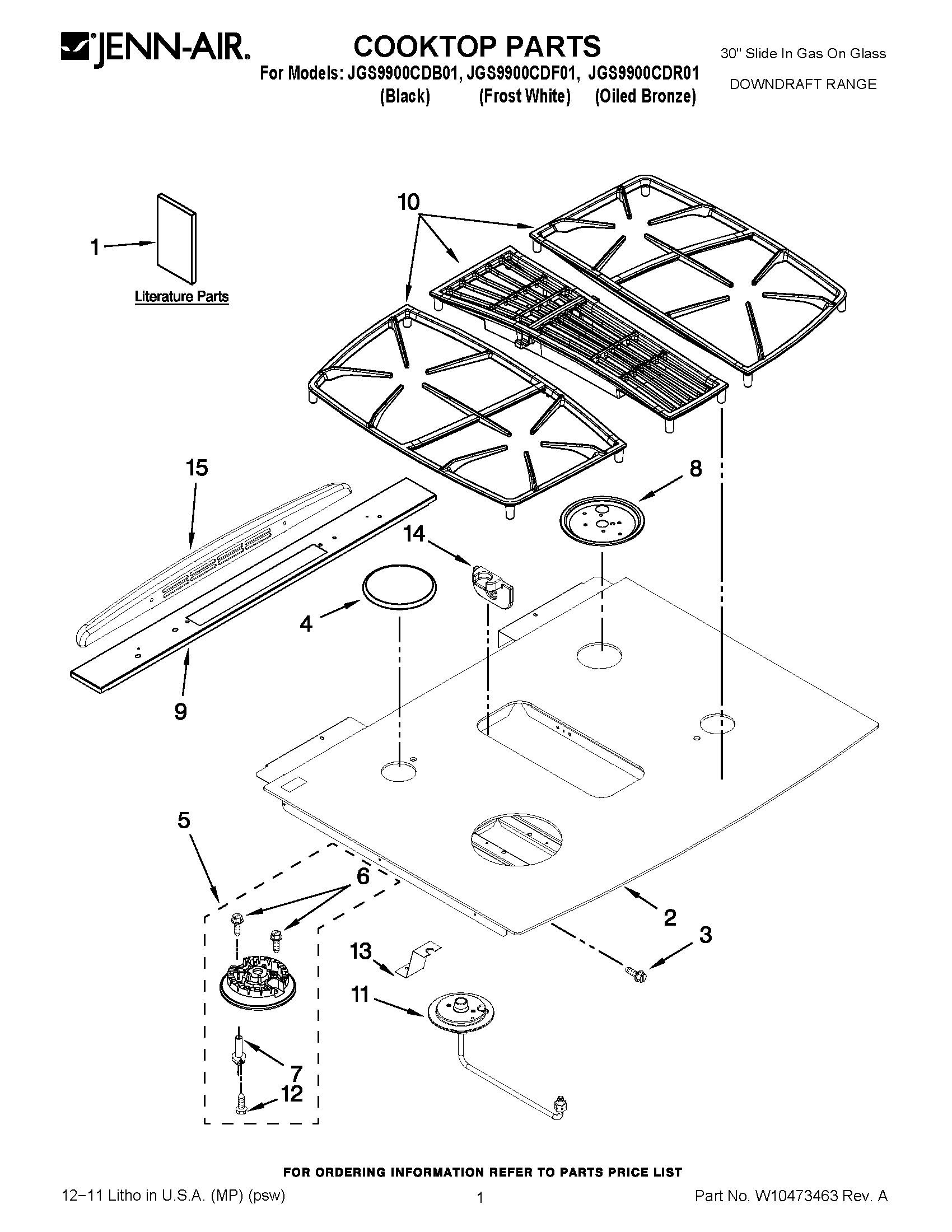

The image and part list below are associated with the component: 01 - COOKTOP PARTS:
For Support or Ordering By Phone,
Call (800) 816-0715 Mon–Fri 8 am to 9 pm, Sat 8 am to 3 pm EST
| Description | Part# | Substitution# | Diagram Reference | ETA | ||
|---|---|---|---|---|---|---|
|
CARD, FLOW TESTER | 8106P068-60 | 1 | 5 days | ||
|
Safe Cooking Tips (English) | 9762761 | 1 | - |
|
|
|
USE & CARE GUIDE | W10235527 | 1 | 11 days | ||
|
INSTALLATION INSTRUCTIONS | W10253463 | 1 | 11 days | ||
|
Safe Cooking Tips (French) | W10065852 | 1 | 11 days | ||
|
WIRING DIAGRAM | W10394692 | 1 | 11 days | ||
|
GRATE (LEFT HAND) | 7518P338-60 | 74011740 | 10 | 5 days | |
|
GRATE (CTR., GRILLE) | 7772P055-60 | 74011875 | 10 | 5 days | |
|
GRATE (RIGHT HAND) | 7518P332-60 | WP7518P332-60 | 10 | 5 days | |
|
HOLDER, ORIFICE (LF-DUAL) | 7527P061-60 | WP7527P061-60 | 11 | 5 days | |
|
HOLDER, ORIFICE (RR-5K) | 7527P085-60 | 74011741 | 11 | - |
|
|
HOLDER, ORIFICE (LR-9.2K) | 7527P086-60 | WP7527P086-60 | 11 | 3 days | |
|
HOLDER, ORIFICE (RF-15K) | 7527P087-60 | WP7527P087-60 | 11 | 5 days | |
|
SCREW | 3368921 | 12 | 11 days | ||
|
BRACKET, ORIFICE | 3801F681-45 | 13 | 5 days | ||
|
LOCATOR, GRATE | 8008P075-60 | 74010860 | 14 | 5 days | |
|
COVER, VENT | 7724P200-60 | 15 | 11 days | ||
|
TOP, MAIN (BLACK) | W10235921 | 2 | 5 days | ||
|
TOP, MAIN (WHITE) | W10235815 | 2 | 5 days | ||
|
SCREW | 7101P606-60 | WP8273062 | 3 | - |
|
|
CAP, BURNER (BLACK(LR)) | 7504P165-60 | WP74007749 | 4 | 5 days | |
|
CAP, BURNER (BLACK, DUAL OUTER) | 7504P243-60 | WP74011651 | 4 | 5 days | |
|
CAP, BURNER (BLACK RF) | 7504P204-60 | WP74007750 | 4 | 5 days | |
|
CAP, BURNER (BLACK RR) | 7504P202-60 | WP8284669 | 4 | 5 days | |
|
CAP, BURNER (BLACK, DUAL INNER) | 7504P242-60 | 4 | 11 days | ||
|
BURNER, HEAD (LF - DUAL) | 7505P349-60 | 74011652 | 5 | 5 days | |
|
BURNER, HEAD (LR-9.2K) | 7505P305-60 | 74007735 | 5 | 5 days | |
|
BURNER, HEAD (RF-15K) | 7505P306-60 | 74007736 | 5 | - |
|
|
BURNER, HEAD (RR-AUX) | 7505P339-60 | WP7505P339-60 | 5 | 5 days | |
|
|
SCREW | 7101P606-60 | WP8273062 | 6 | - |
|
|
IGNITOR, COOKTOP | 7432P121-60 | WP74009336 | 7 | 5 days | |
|
BOWL, BURNER | 3424F039-09 | 8 | 11 days | ||
|
COVER, TRIM | 4005F789-09 | 9 | 5 days |
