Model# JGBS60REK5SS

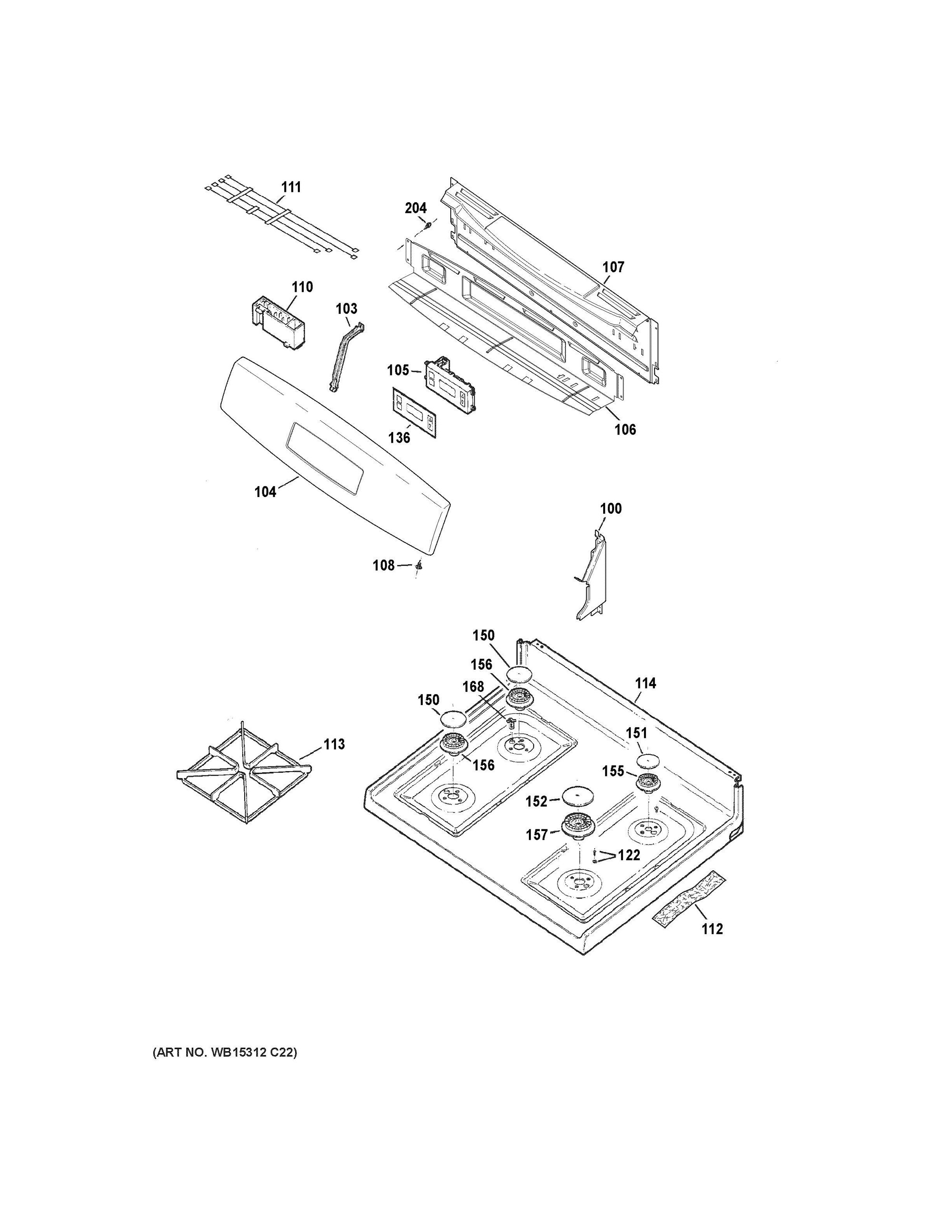

The image and part list below are associated with the component: CONTROL PANEL COOKTOP:
For Support or Ordering By Phone,
Call (800) 816-0715 Mon–Fri 8 am to 9 pm, Sat 8 am to 3 pm EST
| Description | Part# | Substitution# | Diagram Reference | ETA | ||
|---|---|---|---|---|---|---|
|
END SUPPORT RT | WB07X20194 | 100 | 11 days | ||
|
END SUPPORT LT | WB07X20197 | 100 | 11 days | ||
|
BRACKET CONTROL | WB02K10150 | 103 | 11 days | ||
|
TRIM CONTROL | WB36X26256 | 104 | 11 days | ||
|
CONTROL OVEN TO9 WHITE LED | WB27X29138 | WB27X44728 | 105 | 11 days | |
|
COVER BACK UPPER | WB34X26858 | 106 | 11 days | ||
|
COVER BACK LOWER | WB34K10129 | 107 | 11 days | ||
|
SCREW (BLK) | WB01X5716 | WB1X5716 | 108 | 3 days | |
|
IGNITION MODULE | WB13X24323 | 110 | 11 days | ||
|
ELECTRODES & HARNESS H.V. | WB18X26607 | 111 | 11 days | ||
|
FOIL COOKTOP | WB35K10005 | 112 | 11 days | ||
|
GRATE ASM HAIRPIN HV | WB31X20643 | 113 | 3 days | ||
|
BLACK RANGE TOP | WB62X31581 | 114 | 11 days | ||
|
CKT SCREW | WB01X24735 | 122 | 11 days | ||
|
OVERLAY T09 | WB07X34957 | 136 | 11 days | ||
.jpg?width=60&height=60&mode=crop)
|
ASM BURNER CAP (9500) | WB29K10023 | 150 | 3 days | ||
|
ASM. CAP, BURNER SMALL V2 | WB16X28654 | 151 | 11 days | ||
|
ASM BURNER CAP (12000) | WB29K10024 | 152 | 3 days | ||
|
BURNER, SMALL V2 | WB16X24721 | 155 | 11 days | ||
|
BURNER, MEDIUM V2 | WB16X24724 | 156 | 11 days | ||
|
BURNER, LARGE V2 | WB16X24723 | 157 | 11 days | ||
|
CLIP, IGNITER V2 | WB02X24976 | 168 | 11 days | ||
|
SCREW (BLK) | WB01K0042 | WB1K5062 | 204 | 3 days |
