Model# JGBP34GEV5AD

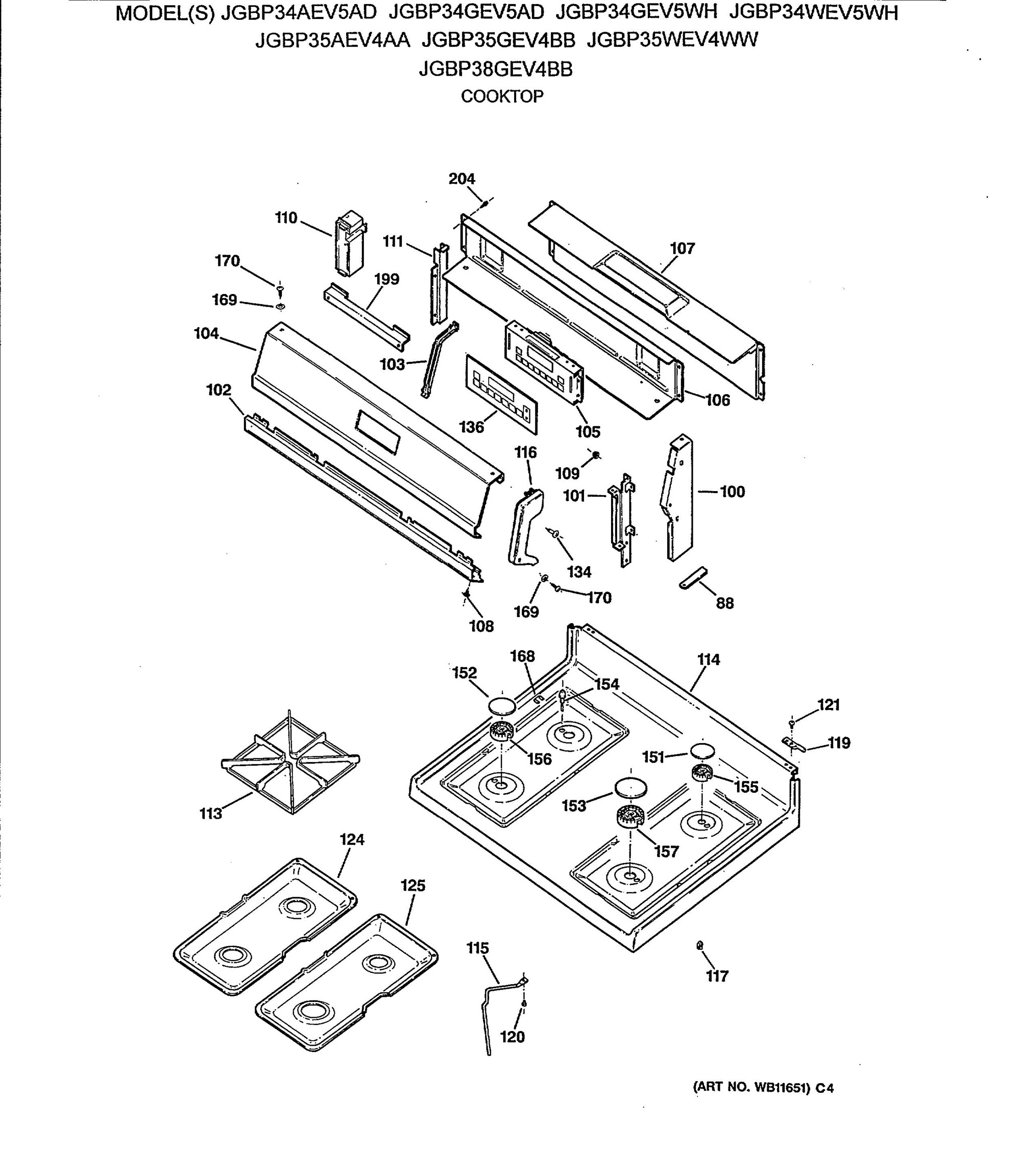

The image and part list below are associated with the component: COOKTOP:
For Support or Ordering By Phone,
Call (800) 816-0715 Mon–Fri 8 am to 9 pm, Sat 8 am to 3 pm EST
| Description | Part# | Substitution# | Diagram Reference | ETA | ||
|---|---|---|---|---|---|---|
|
COVER END RIGHT (AD) | WB07K0242 | WB7K242 | 100 | 11 days | |
|
COVER END LEFT (AD) | WB07K0243 | WB7K243 | 100 | 11 days | |
|
PLATE END RIGHT | WB37K0017 | WB37K17 | 101 | 11 days | |
|
PLATE END LEFT | WB37K0018 | WB37K18 | 101 | 11 days | |
|
LOWER FRONT TRIM | WB07K0005 | WB7K5 | 102 | 1 days | |
|
BRACKET TIMER | WB02K0063 | WB2K63 | 103 | 11 days | |
|
TRIM CONTROL (BK) | WB36K0103 | WB36K103 | 104 | 11 days | |
|
TIMER ERC2 (NO OVERLAY) | WB12K0005 | WB27T10083 | 105 | 1 days | |
|
COVER BACK UPPER | WB36K0017 | WB36K17 | 106 | 11 days | |
|
COVER LOWER BACK | WB36K0002 | WB34K10007 | 107 | 1 days | |
|
SCREW (CR) | WB01X5364 | WB1X5364 | 108 | 1 days | |
|
SCREW (BLK) | WB01X5716 | WB1X5716 | 108 | 1 days | |
|
SPARK MOD. TOP BURNERS | WB13K0025 | WB13K25 | 110 | 1 days | |
|
HARNESS WIRE HV | WB18K0006 | WB18K6 | 110 | 1 days | |
|
COVER WIRE | WB34K0005 | WB34K5 | 111 | 11 days | |
|
GRATE HP (BK) | WB31K0021 | WB31K10172 | 113 | 11 days | |
|
RANGETOP (AL) | WB62K0027 | WB62K27 | 114 | 11 days | |
|
SUPPORT RANGETOP | WB02K0091 | WB2K91 | 115 | 1 days | |
|
CAP END RIGHT (BK) | WB07K0340 | WB7K340 | 116 | 11 days | |
|
CAP END LEFT (BK) | WB07K0341 | WB7K341 | 116 | 1 days | |
|
PIN LOCATOR | WB02K0017 | WB2K17 | 117 | 1 days | |
|
PIN HINGE | WB14K0005 | WB14K5 | 119 | 1 days | |
|
SCREW WASHER ASM | WB01K0045 | WB1K45 | 120 | 1 days | |
|
SCREW | WB01K0001 | 121 | 11 days | ||
|
PAN UNIT LEFT (BK) | WB32K0010 | WB32K10 | 124 | 1 days | |
|
PAN UNIT RIGHT (BK) | WB32K0009 | WB32K9 | 125 | 1 days | |
|
SCREW 8-18 AB T 1.5 (BK) | WB01K0075 | WB1K75 | 134 | 11 days | |
|
OVERLAY (BK) | WB07K0260 | WB7K260 | 136 | 11 days | |
|
BURNER CAP-SM-BLK | WB29K0041 | WB29K41 | 151 | 1 days | |
|
CAP BURNER (BK) | WB29K0044 | WB29K44 | 152 | 1 days | |
|
BURNER CAP-LARGE-BLK | WB29K0047 | WB29K47 | 153 | 1 days | |
|
ELECTRODE | WB13K0018 | WB13K18 | 154 | 1 days | |
|
BURNER HEAD-SMALL | WB16K0012 | WB16K12 | 155 | 1 days | |
|
HEAD BURNER | WB16K0011 | WB16K11 | 156 | 1 days | |
|
BURNER HEAD-LARGE | WB16K0010 | WB16K10 | 157 | 1 days | |
|
CLIP ELECTRODE | WB01K0056 | WB1K56 | 168 | 1 days | |
|
WASHER (CLEAR) | WB01K0057 | WB1K57 | 169 | 11 days | |
|
SCREW 8-18 (BK) 1/2 S | WB01K0060 | WB1K60 | 170 | 1 days | |
|
BRACKET TIMER | WB02K0086 | WB2K86 | 199 | 11 days | |
|
SCREW (BLK) | WB01K0042 | WB1K5062 | 204 | 1 days | |
|
SCREW 8-18X5/8 HXW | WZ04X0345 | WZ4X345D | 204 | 1 days | |
|
PAD FELT (WH) | WB02K0085 | WB2K85 | 88 | 11 days |
