Model# JGB605DET3WW

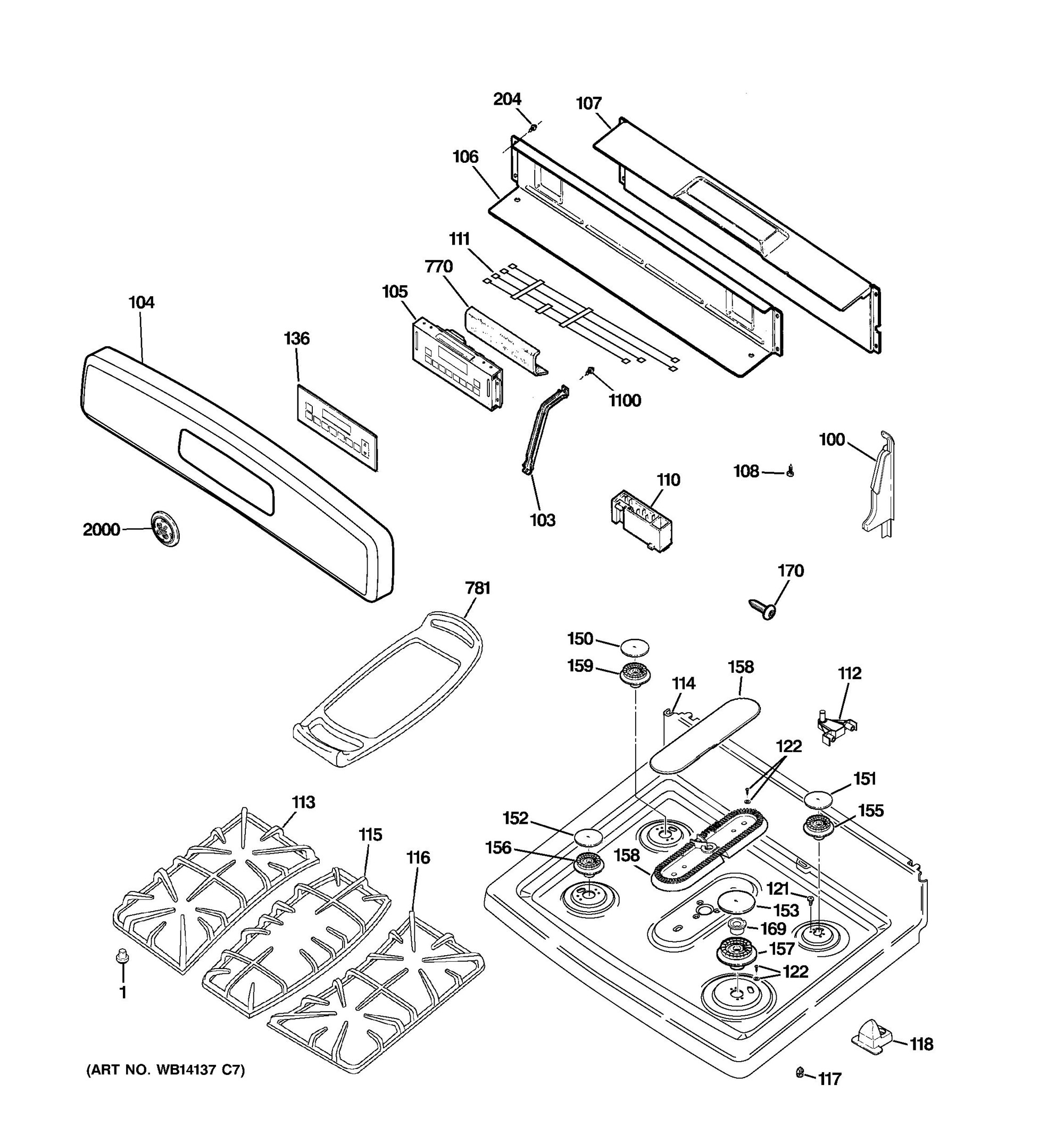

The image and part list below are associated with the component: CONTROL PANEL & COOKTOP:
For Support or Ordering By Phone,
Call (800) 816-0715 Mon–Fri 8 am to 9 pm, Sat 8 am to 3 pm EST
| Description | Part# | Substitution# | Diagram Reference | ETA | ||
|---|---|---|---|---|---|---|
|
KIT-RUBBER FEET | WB02K0101 | WB2K101 | 1 | 4 days | |
|
ADHESIVE-GRATE FOOT | WB64X10005 | 1 | 4 days | ||
|
PM OWNERS AND INSTALL | 49-85183-1 | 1 | 11 days | ||
|
LP CONVERSION INST | 31-10804 | 1 | 11 days | ||
|
PM MINI MANUAL | 31-14991 | 1 | 11 days | ||
|
HI ALTITUDE ORIFICE KIT | WB28K10824 | 1 | 11 days | ||
|
PM INSTALL INSTRUCTIONS | 31-10781 | 1 | 11 days | ||
|
END SUPPORT | WB07K10246 | 100 | 11 days | ||
|
END SUPPORT | WB07K10247 | 100 | 11 days | ||
|
END SUPPORT RT WH | WB07K10251 | 100 | 11 days | ||
|
END SUPPORT LF WH | WB07K10252 | 100 | 11 days | ||
|
BRACKET CONTROL | WB02K10155 | 103 | 11 days | ||
|
TRIM CONTROL | WB36K10729 | 104 | 11 days | ||
|
TRIM CONTROL | WB36K10733 | 104 | 11 days | ||
|
T011 OVEN CONTROL | WB27K10319 | 105 | 4 days | ||
|
COVER BACK UPPER | WB34K10123 | 106 | 11 days | ||
|
COVER BACK LOWER | WB34K10129 | 107 | 11 days | ||
|
SPARK MODULE 6+0 | WB13K10033 | WB13X26360 | 110 | 11 days | |
|
HARNESS HV | WB18K10059 | 111 | 4 days | ||
|
HINGE RANGE TOP | WB14K10003 | 112 | 11 days | ||
|
GRATE CAST LF | WB31K10187 | 113 | 4 days | ||
|
RANGETOP & BRKT ASM | WB62K10151 | 114 | 4 days | ||
|
RANGETOP & BRKT ASM | WB62K10152 | 114 | 4 days | ||
|
GRATE CAST MID | WB31K10189 | 115 | 4 days | ||
|
GRATE CAST RT | WB31K10188 | 116 | 4 days | ||
|
PIN LOCATOR | WB14K10004 | 117 | 4 days | ||
|
PIN LOCATOR | WB14K10005 | 118 | 4 days | ||
|
SCREW 12-14, 5/8S | WB01K0078 | WB1K78 | 121 | 4 days | |
|
SCREW | WB01K0084 | WB1K84 | 121 | 4 days | |
|
SCREW | WB01K0001 | 122 | 11 days | ||
|
CKT SCREW | WB01K10106 | 122 | 4 days | ||
|
OVERLAY T011 | WB27K10407 | 136 | 4 days | ||
|
OVERLAY T011 | WB27K10408 | 136 | 4 days | ||
.jpg?width=60&height=60&mode=crop)
|
CAP BURNER MED | WB29K10023 | 150 | 4 days | ||
-default.jpg?width=60&height=60&mode=crop)
|
CAP BURNER SMALL | WB29K10022 | 151 | 4 days | ||
|
CAP BURNER LARGE | WB29K10024 | 152 | 4 days | ||
|
CAP BURNER ASM (15K) | WB28K10222 | 153 | 4 days | ||
|
SMALL BURNER V 5K | WB16K10070 | 155 | 4 days | ||
|
BURNER-LARGE 12K | WB16T10046 | 156 | 4 days | ||
|
VISION BURNER XL | WB16K10062 | 157 | 4 days | ||
|
CENTRAL BURNER & CAP ASM | WB16K10053 | 158 | 4 days | ||
|
BURNER MEDIUM (9500) | WB16K10055 | 159 | 4 days | ||
|
VENTURI CHOKE 15K LP | WB16K10083 | 169 | 4 days | ||
|
SCREW WH | WB01X5874 | WB01K10004 | 170 | 4 days | |
|
SCREW (BLK) | WB01X5716 | WB1X5716 | 170 | 4 days | |
|
BADGE GE | WB02T10359 | 2000 | 4 days | ||
|
SCREW (BLK) | WB01K0042 | WB1K5062 | 204 | 4 days | |
|
SCREW 8-18X5/8 HXW | WZ04X0345 | WZ4X345D | 204 | 4 days | |
|
INSULATION CONTROL | WB35K10040 | 770 | 4 days | ||
|
GRIDDLE ASM | WB31K10217 | 781 | 4 days |
