Model# JFFCC72EFS04

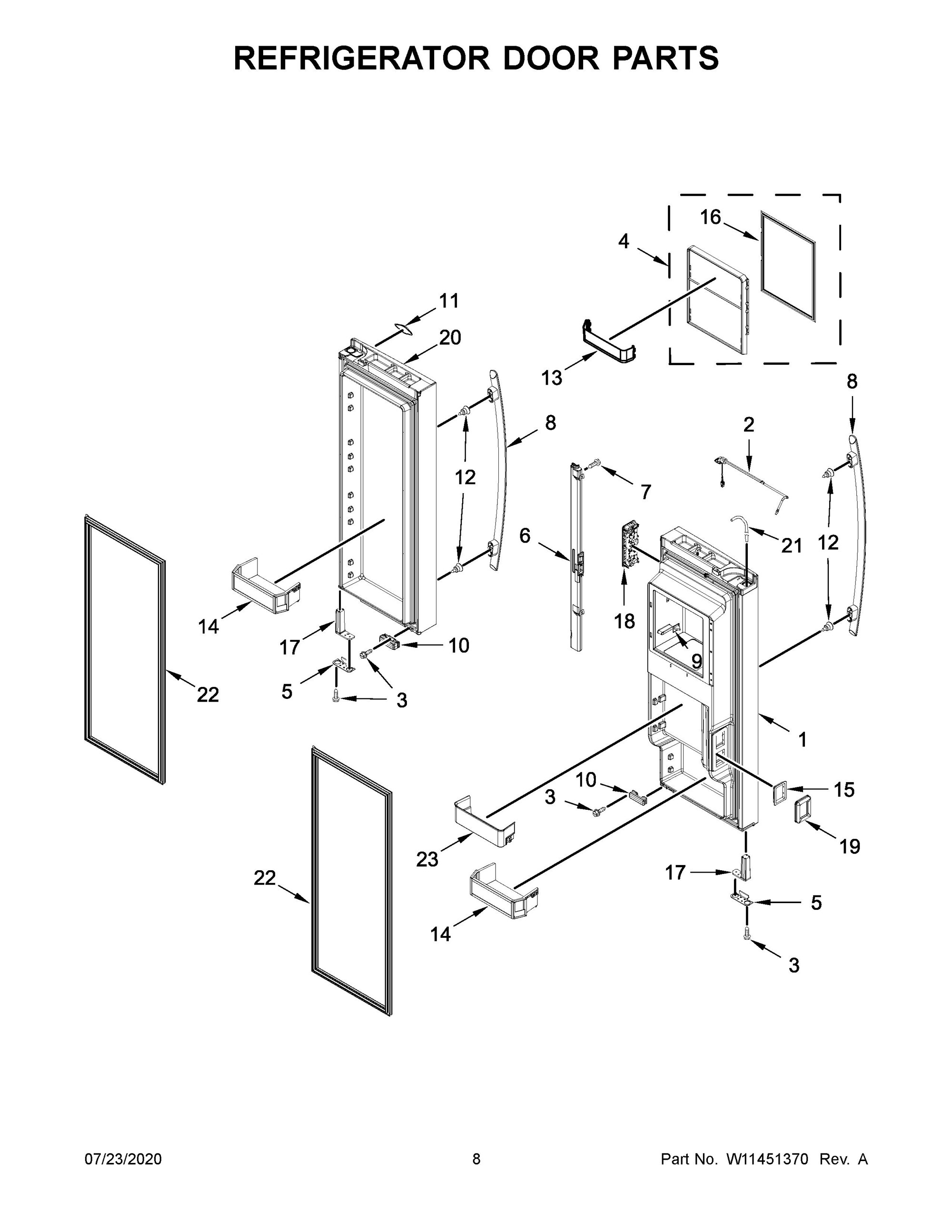

The image and part list below are associated with the component: 05 - REFRIGERATOR DOOR PARTS:
For Support or Ordering By Phone,
Call (800) 816-0715 Mon–Fri 8 am to 9 pm, Sat 8 am to 3 pm EST
| Description | Part# | Substitution# | Diagram Reference | ETA | ||
|---|---|---|---|---|---|---|
|
DOOR, REFRIGERATOR LEFT HAND (STAINLESS (ALSO ORDER ITEM #18)) | W11401422 | W11466513 | 1 | 11 days | |
|
BUMPER, DOOR (GREY) | W10798308 | 10 | - |
|
|
|
Nameplate (Stainless) | W10214168 | 11 | 11 days | ||
|
SCREW | W11328753 | W11449276 | 12 | 11 days | |
|
TRIVET, ICE COMPARTMENT DOOR | W10795606 | W10887799 | 13 | 3 days | |
|
BIN, DOOR (GALLON) | W10793381 | 14 | 3 days | ||
|
RETAINER, DOOR DUCT | W10834283 | 15 | 3 days | ||
|
GASKET, ICE DOOR | W10853440 | W11714865 | 16 | 11 days | |
|
CLOSER, DOOR (LEFT HAND) | W10872968 | W11179355 | 17 | 11 days | |
|
CLOSER, DOOR (RIGHT HAND) | W10872969 | W11189598 | 17A | 11 days | |
|
ASSEMBLY, USER INTERFACE | W11227909 | W11262313 | 18 | 11 days | |
|
GASKET, COOLING DUCT | W10828417 | 19 | - |
|
|
|
ASSEMBLY, FILL TUBE (ICEMAKER) | W11401679 | W11596134 | 2 | - |
|
|
DOOR, REFRIGERATOR RIGHT HAND (STAINLESS) | W10798253 | W10849511 | 20 | 3 days | |
|
TUBE, WATER | W11391308 | W11518276 | 21 | 11 days | |
|
GASKET, DOOR (GREY) | W10917313 | 22 | 3 days | ||
|
BIN, DOOR (MEDIUM) | W10816355 | 23 | 3 days | ||
|
SCREW | W10238319 | WPW10238319 | 3 | 3 days | |
|
ASSEMBLY, ICE DOOR | W10798123 | W11594926 | 4 | 11 days | |
|
BRACKET, DOOR STOP | W10763415 | W11243377 | 5 | 11 days | |
|
MULLION, DOOR (GREY) | W11034034 | W11649966 | 6 | 11 days | |
|
Screw | 12990204 | W11311945 | 7 | 11 days | |
|
HANDLE, DOOR (STAINLESS) | W10298244 | WPW10298244 | 8 | 3 days | |
|
SWITCH, ROCKER ARM | W11202750 | W11291140 | 9 | - |
|
