Model# JF36NXFXDE01

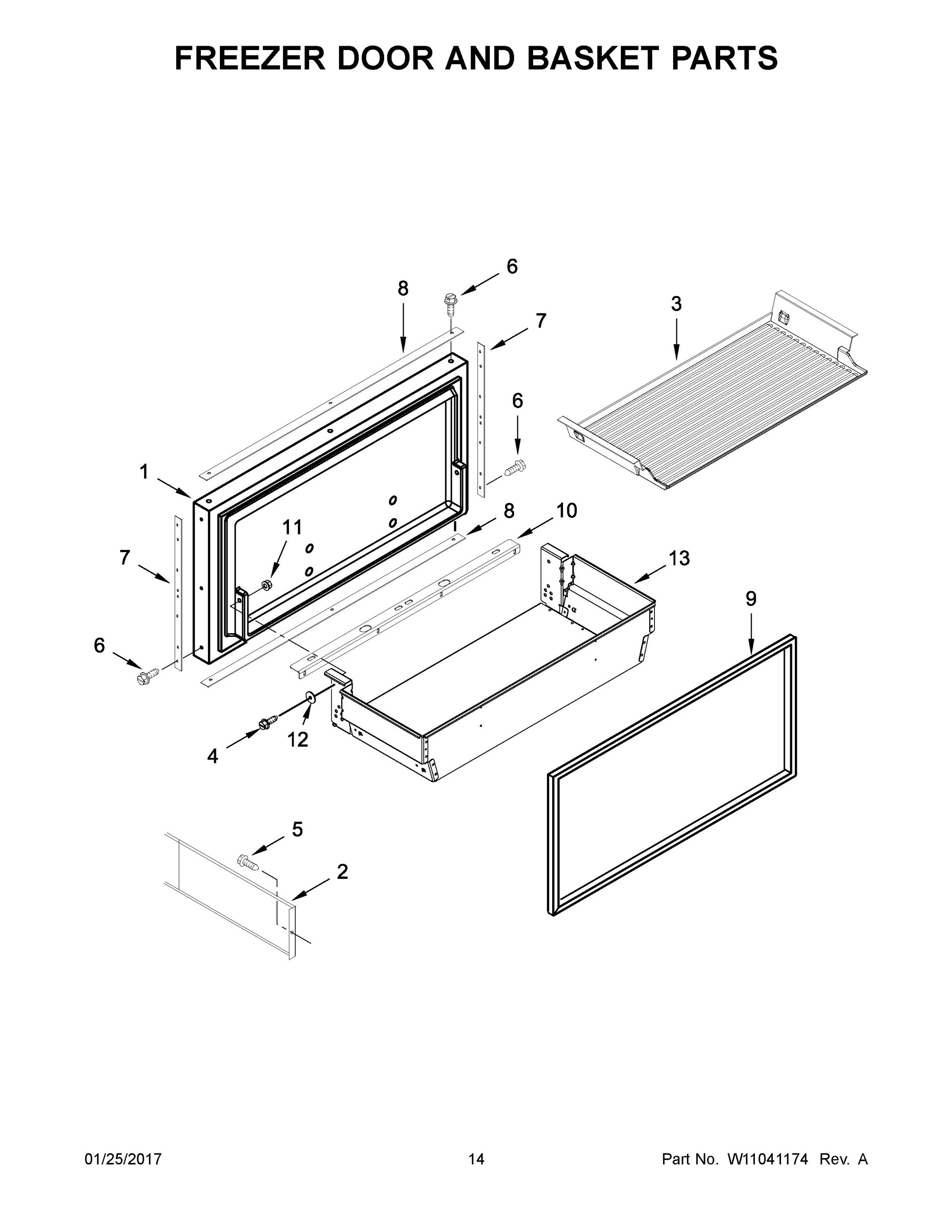

The image and part list below are associated with the component: 08 - FREEZER DOOR AND BASKET PARTS:
For Support or Ordering By Phone,
Call (800) 816-0715 Mon–Fri 8 am to 9 pm, Sat 8 am to 3 pm EST
| Description | Part# | Substitution# | Diagram Reference | ETA | ||
|---|---|---|---|---|---|---|
|
DOOR, FREEZER (INCLUDES ITEM 9) | W10613076 | W10782355 | 1 | 11 days | |
|
BRACKET, PANEL MOUNTING (GREY) | W10606815 | W11256496 | 10 | 11 days | |
|
NUT | W10771111 | 11 | 11 days | ||
|
WASHER | W10001190 | 12 | 3 days | ||
|
ASSEMBLY, FREEZER BASKET (GREY) | W10774209 | 13 | - |
|
|
|
DIVIDER, BASKET (GREY) | W10606764 | 2 | 11 days | ||
|
MAT, BASKET | W10665412 | 3 | 11 days | ||
|
SCREW | W10761334 | 4 | 11 days | ||
|
SCREW (BLACK) | W10678208 | 5 | - |
|
|
|
Screw (Black) | 8281252 | 6 | 11 days | ||
|
TRIM, DOOR (SIDE) (GREY) | W10611111 | 7 | 3 days | ||
|
TRIM, DOOR (TOP AND BOTTOM) (GREY) | W10611110 | 8 | 3 days | ||
|
GASKET, DOOR (BLACK) | W10611109 | W11625088 | 9 | 11 days |
