Model# JES9900BCB20

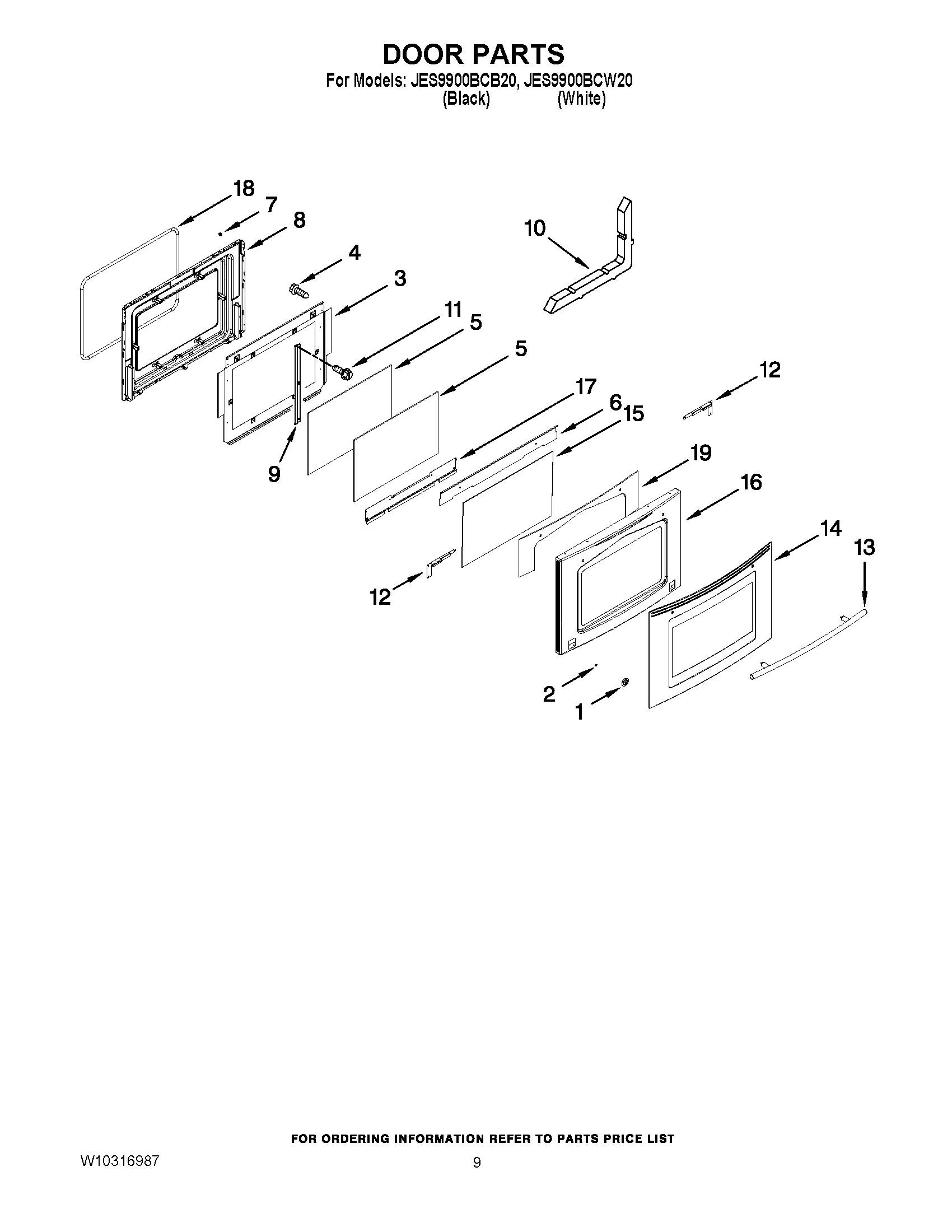

The image and part list below are associated with the component: 07 - DOOR PARTS:
For Support or Ordering By Phone,
Call (800) 816-0715 Mon–Fri 8 am to 9 pm, Sat 8 am to 3 pm EST
| Description | Part# | Substitution# | Diagram Reference | ETA | ||
|---|---|---|---|---|---|---|
|
WASHER | 7109P082-60 | 74009194 | 1 | 5 days | |
|
Insulation, Door | 7002P246-60 | 10 | 5 days | ||
|
SCREW, 8-18 X 3/8 | 7101P426-60 | WP90767 | 11 | 5 days | |
|
RETAINER, GLASS (RIGHT) | 3804F307-51 | 12 | 11 days | ||
|
RETAINER, GLASS (LEFT) | 3804F308-51 | 12 | 11 days | ||
|
HANDLE, DOOR | 7701P473-60 | WP74008625 | 13 | 5 days | |
|
GLASS, DOOR (WHITE) | 7922P050-60 | WP74011510 | 14 | 5 days | |
|
GLASS, DOOR (BLACK) | 7922P051-60 | W10331044 | 14 | 5 days | |
|
GLASS, COATED | 7902P768-60 | 15 | 11 days | ||
|
FRAME, DOOR (BLACK) | 3603F075-70 | 16 | 5 days | ||
|
FRAME, DOOR (WHITE) | 3603F075-71 | 16 | 5 days | ||
|
RETAINER,GLASS BTM | 3804F317-80 | 17 | 5 days | ||
|
SEAL, DOOR | W10162384 | WPW10162384 | 18 | 5 days | |
|
INSULATION, FOIL | 7002P465-60 | 74011509 | 19 | - |
|
|
NUT (10-32) | 7103P176-60 | WP3400029 | 2 | 5 days | |
|
BAFFLE, OVEN DOOR | 3601F373-51 | 3 | 5 days | ||
|
SCREW, 8AB X 1/2 | 7101P376-60 | W11347848 | 4 | 11 days | |
|
Glass, Inner | 7902P436-60 | 74003645 | 5 | 5 days | |
|
SHIELD | 3604F418-51 | 6 | 5 days | ||
|
NUT, SNAP | 7103P141-60 | WP74001574 | 7 | 5 days | |
|
Lining, Door | 2402W312-19 | 8 | 11 days | ||
|
Bracket, Glass | 3801F886-51 | 9 | 5 days |
