Model# JDS9860CDS01

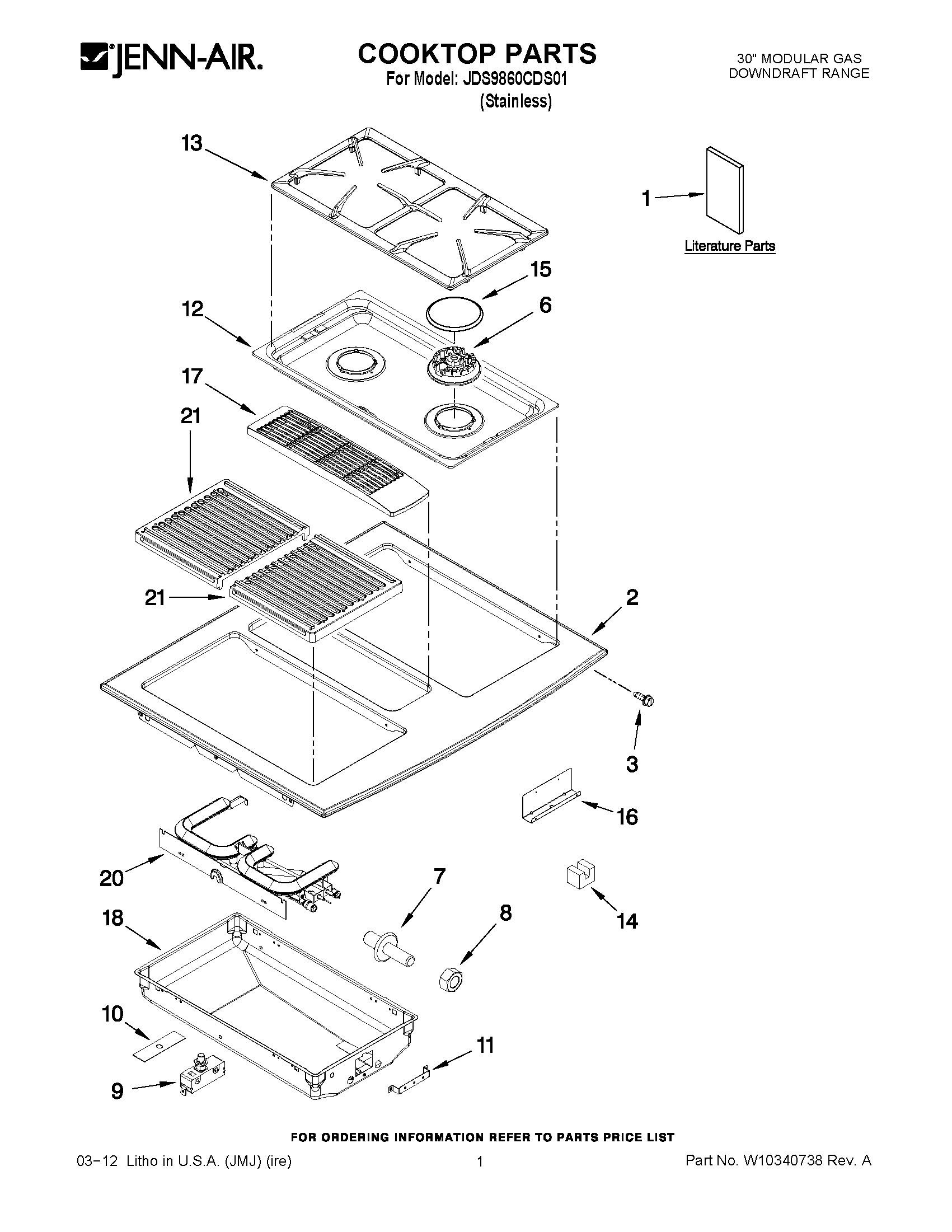

The image and part list below are associated with the component: 01 - COOKTOP PARTS:
For Support or Ordering By Phone,
Call (800) 816-0715 Mon–Fri 8 am to 9 pm, Sat 8 am to 3 pm EST
| Description | Part# | Substitution# | Diagram Reference | ETA | ||
|---|---|---|---|---|---|---|
|
CARD, FLOW TESTER | 8106P068-60 | 1 | 1 days | ||
|
Safe Cooking Tips (English) | 9762761 | 1 | - |
|
|
|
INSTALLATION INSTRUCTIONS | W10253464 | 1 | 11 days | ||
|
USE & CARE GUIDE | W10235521 | 1 | 11 days | ||
|
WIRING DIAGRAM (USA) | W10235680 | 1 | 11 days | ||
|
Safe Cooking Tips (French) | W10065852 | 1 | 11 days | ||
|
WIRING DIAGRAM (CANADA) | W10235681 | 1 | 11 days | ||
|
SWITCH, INSULATOR | 7003P129-60 | 74006095 | 10 | 1 days | |
|
CLIP, TERMINAL BLOCK | 7112P150-60 | 11 | 1 days | ||
|
TOP, BLACK | 2001F270-09 | 12 | 1 days | ||
|
GRATE | 7518P341-60 | 74011589 | 13 | 1 days | |
|
BLOCK, SUPPORT | 8255P412-60 | 14 | 1 days | ||
|
CAP, BURNER (BLACK RF) | 7504P204-60 | WP74007750 | 15 | 1 days | |
|
CAP, BURNER (BLACK RR) | 7504P202-60 | WP8284669 | 15 | 1 days | |
|
SUPPORT, CARTRIDGE PAN | 3807F743-51 | 16 | 11 days | ||
|
GRILLE, AIR | 7772P045-60 | 17 | 11 days | ||
|
BOTTOM, GRILLE PAN | 3401F099-19 | 18 | 1 days | ||
|
TOP, MAIN | 2002D245-50 | 2 | 11 days | ||
|
BURNER, GRILLE | 7505P290-60 | 74010760 | 20 | 1 days | |
|
GRATE, GRILLE | 7518P070-60 | 71003267 | 21 | 1 days | |
|
Screw | 7101P426-60 | WP90767 | 3 | 1 days | |
|
BURNER, HEAD (RIGHT FRONT) | 7540P047-60 | 74011473 | 6 | 1 days | |
|
BURNER, HEAD (RIGHT REAR) | 8286181 | WPW10406243 | 6 | 1 days | |
|
PIN, LOCATOR | 7113P020-60 | 71001764 | 7 | 1 days | |
|
NUT | 7103P162-60 | WPY707702 | 8 | 1 days | |
|
SWITCH, INFINITE | 7450P012-60 | WP7450P012-60 | 9 | 1 days |
