Model# JDS9860AAP

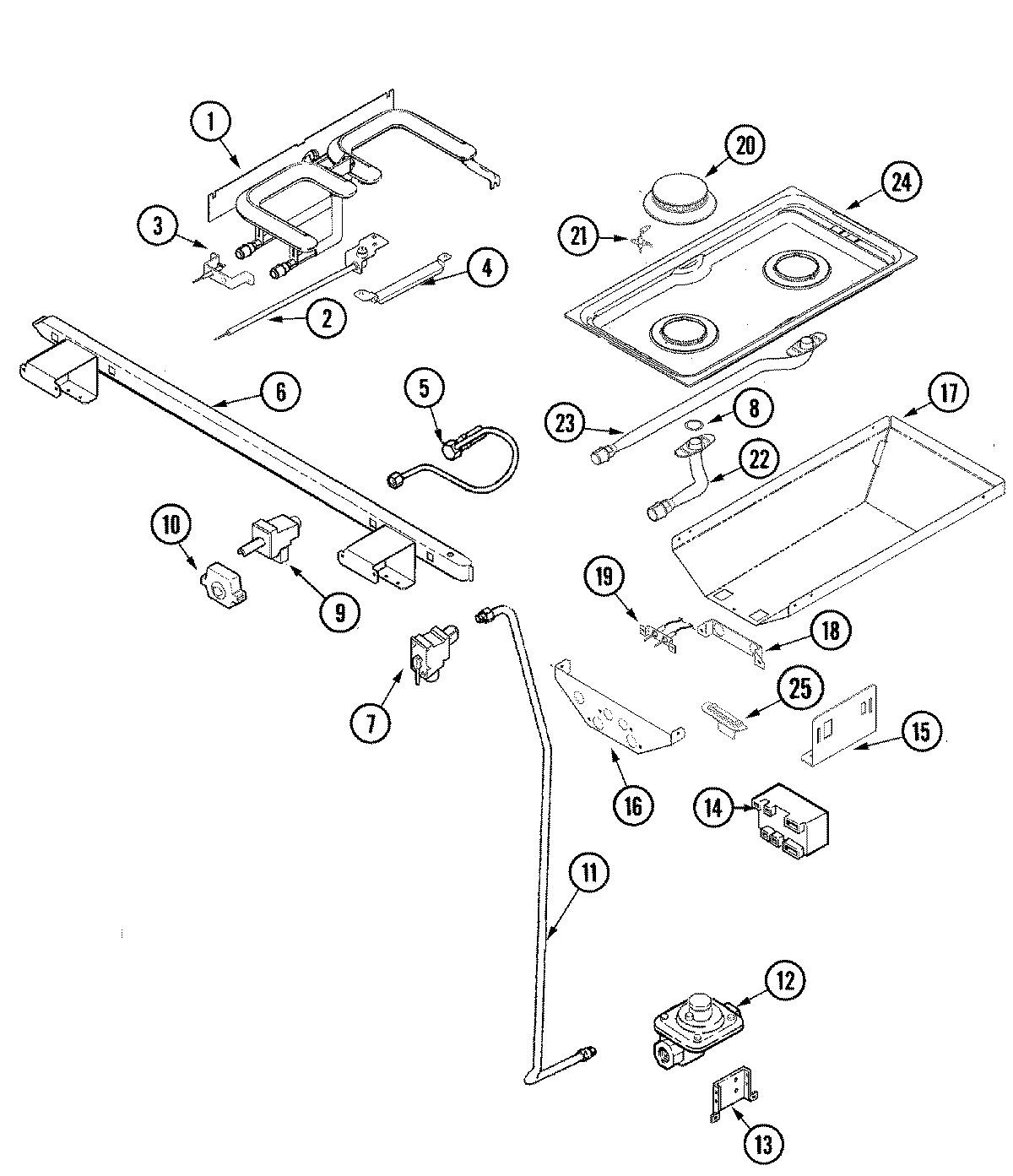

The image and part list below are associated with the component: 05 - GAS CONTROLS (AAP):
For Support or Ordering By Phone,
Call (800) 816-0715 Mon–Fri 8 am to 9 pm, Sat 8 am to 3 pm EST
| Description | Part# | Substitution# | Diagram Reference | ETA | ||
|---|---|---|---|---|---|---|
|
E-BURNER, GRILL | 74006070 | WP74006070 | 1 | 5 days | |
|
SWITCH, VALVE (LT) | 71002322 | 10 | 5 days | ||
|
SWITCH, VALVE (RT) | 71002330 | 10 | 5 days | ||
|
ASSY. SWITCH IGNITOR/WIRE | 74009874 | WP74009874 | 10 | 5 days | |
|
TUBE, SUPPLY | 74006130 | 11 | 11 days | ||
|
REGULATOR, PRESSURE | Y04100249 | 12 | 5 days | ||
|
SCREW | Y700502 | WP90767 | 12 | 5 days | |
|
BRACKET, SUPPORT | Y04100845 | 13 | 11 days | ||
|
MODULE, SPARK (4+0) | 74004283 | 8215557 | 14 | 5 days | |
|
SUPPORT, SPARK MODULE | 74004297 | 15 | 11 days | ||
|
COVER, CARTRIDGE | 74005887 | 16 | 5 days | ||
|
COVER, CARTRIDGE | 74006935 | 16 | 11 days | ||
|
HOUSING, CARTRIDGE | 74005888 | 17 | 11 days | ||
|
BRACKET, VENTURI ALIGNMENT | 74005889 | 18 | - |
|
|
|
SCREW | Y700725 | WP355214 | 18 | 5 days | |
|
TERMINAL BLOCK W/IGNITER WIRES | 74005890 | 19 | 11 days | ||
|
|
SCREW | Y700725 | WP355214 | 19 | 5 days | |
|
IGNITOR, E-BURNER | 74006072 | WP74006072 | 2 | 5 days | |
|
BURNER ASSY (BLK) | 74005892 | WP3403M075-10 | 20 | 5 days | |
|
IGNITER, TOP BURNER | 74004053 | 21 | 5 days | ||
|
VENTURI (FRONT) | 74005894 | WP7538P008-60 | 22 | 5 days | |
|
SCREW (6ABX3/8-SN) | 74004288 | WP59002061 | 22 | 5 days | |
|
VENTURI (REAR) | 74005895 | WP7538P009-60 | 23 | 5 days | |
|
|
SCREW (6ABX3/8-SN) | 74004288 | WP59002061 | 23 | 5 days | |
|
|
SCREW (6ABX3/8-SN) | 74004288 | WP59002061 | 24 | 5 days | |
|
TOP, CARTRIDGE (BLK) | 74005897 | WP2001F175-09 | 24 | - |
|
|
GUARD, CORNER | 74006934 | 26 | 11 days | ||
|
LP CONVERSION KIT | 74006097 | 27 | 5 days | ||
|
NOT REQUIRED PART OR SEE NOTE FOR A COMPLETE SEALED BURNER CARTRIDGE ORDER JGA8100ADB | W10124350 | 28 | 11 days | ||
|
IGNITOR, GROUND ASSY | 74006073 | WP74006073 | 3 | 5 days | |
|
SHIELD, IGNITOR BRACKET | 74006071 | 4 | 5 days | ||
|
TUBE, BURNER (LF) | 74006126 | 5 | 11 days | ||
|
TUBE, BURNER (RR) | 74006124 | 5 | 11 days | ||
|
TUBE, BURNER (LR) | 74006125 | 5 | 11 days | ||
|
TUBE, BURNER (RF) | 74006123 | 5 | 11 days | ||
|
PIPE, MANIFOLD W/ BRACKET | 74006117 | 6 | 11 days | ||
|
VALVE (MUELLER/SHUTOFF) | 74009873 | 7 | 5 days | ||
|
VALVE, SHUT-OFF | 74006120 | 7 | 5 days | ||
|
GASKET, TUBING | 74004299 | 7 | 11 days | ||
|
SEAL (BRASS) | 74005893 | WP74005893 | 8 | 5 days | |
|
ORIFICE (No.54) | 74009472 | 9 | 5 days | ||
|
VALVE, BURNER | 74006119 | WP74006119 | 9 | 5 days | |
|
SCREW, VALVE | 71003231 | 9 | 11 days | ||
|
VALVE (MUELLER/PLAIN) | 74009871 | 9 | 5 days | ||
|
VALVE, BURNER | 74006118 | WP74006118 | 9 | 5 days | |
|
VALVE (MUELLER/BLACK) | 74009872 | 9 | 5 days |
