Model# JDB8200AWS3

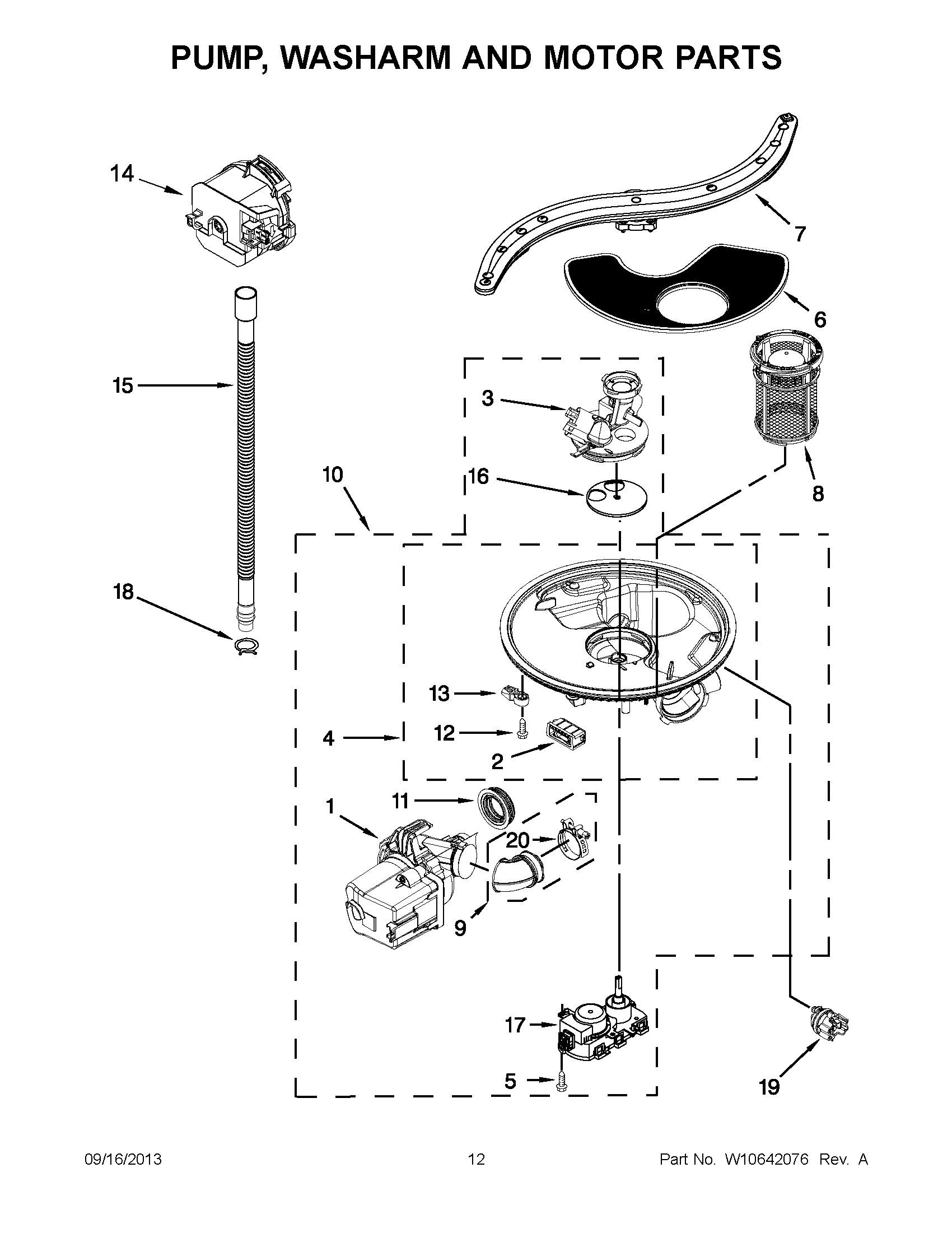

The image and part list below are associated with the component: 07 - PUMP, WASHARM AND MOTOR PARTS:
For Support or Ordering By Phone,
Call (800) 816-0715 Mon–Fri 8 am to 9 pm, Sat 8 am to 3 pm EST
| Description | Part# | Substitution# | Diagram Reference | ETA | ||
|---|---|---|---|---|---|---|
|
MOTOR (ALSO ORDER ITEMS 9 & 11) | W10314568 | W10894668 | 1 | 5 days | |
|
MOTOR & SUMP ASSEMBLY | W10455260 | WPW10455260 | 10 | - |
|
|
GROMMET | W10538166 | WPW10538166 | 11 | 5 days | |
|
SCREW | W10348407 | WPW10348407 | 12 | 5 days | |
|
TAB, SUMP | W10372113 | WPW10372113 | 13 | 5 days | |
|
MOTOR, DRAIN | W10531320 | WPW10531320 | 14 | - |
|
|
HOSE, DRAIN | 8269144 | 15 | 11 days | ||
|
DISC, DIVERTER | W10476221 | WPW10476221 | 16 | 5 days | |
|
MOTOR, DIVERTER | W10476222 | W10537869 | 17 | 5 days | |
|
Clamp, Hose | 8269146 | WP8269146 | 18 | 5 days | |
|
INDICATOR, OPTICAL WASH | W10134017 | WPW10705575 | 19 | 5 days | |
|
MOTOR, ISOLATOR | W10195086 | W11243394 | 2 | 11 days | |
|
CLAMP, HOSE | W10169167 | W10789434 | 20 | 5 days | |
|
COVER, OUTLET | W10455271 | WPW10455271 | 3 | 5 days | |
|
SUMP WITH SEAL (ALSO ORDER ITEMS 9 & 11) | W10455268 | WPW10455268 | 4 | 5 days | |
|
SCREW | 9741232 | WP9741232 | 5 | 5 days | |
|
SCREEN | W10195360 | WPW10463906 | 6 | 5 days | |
|
WASH ARM ASSEMBLY | W10333330 | WPW10333330 | 7 | 5 days | |
|
FILTER CUP ASSEMBLY | W10465374 | W10872845 | 8 | 5 days | |
|
HOSE ASSEMBLY (INCLUDES 2 CLAMPS) | W10445975 | 9 | 5 days |
