Model# JCTP18BA3BB

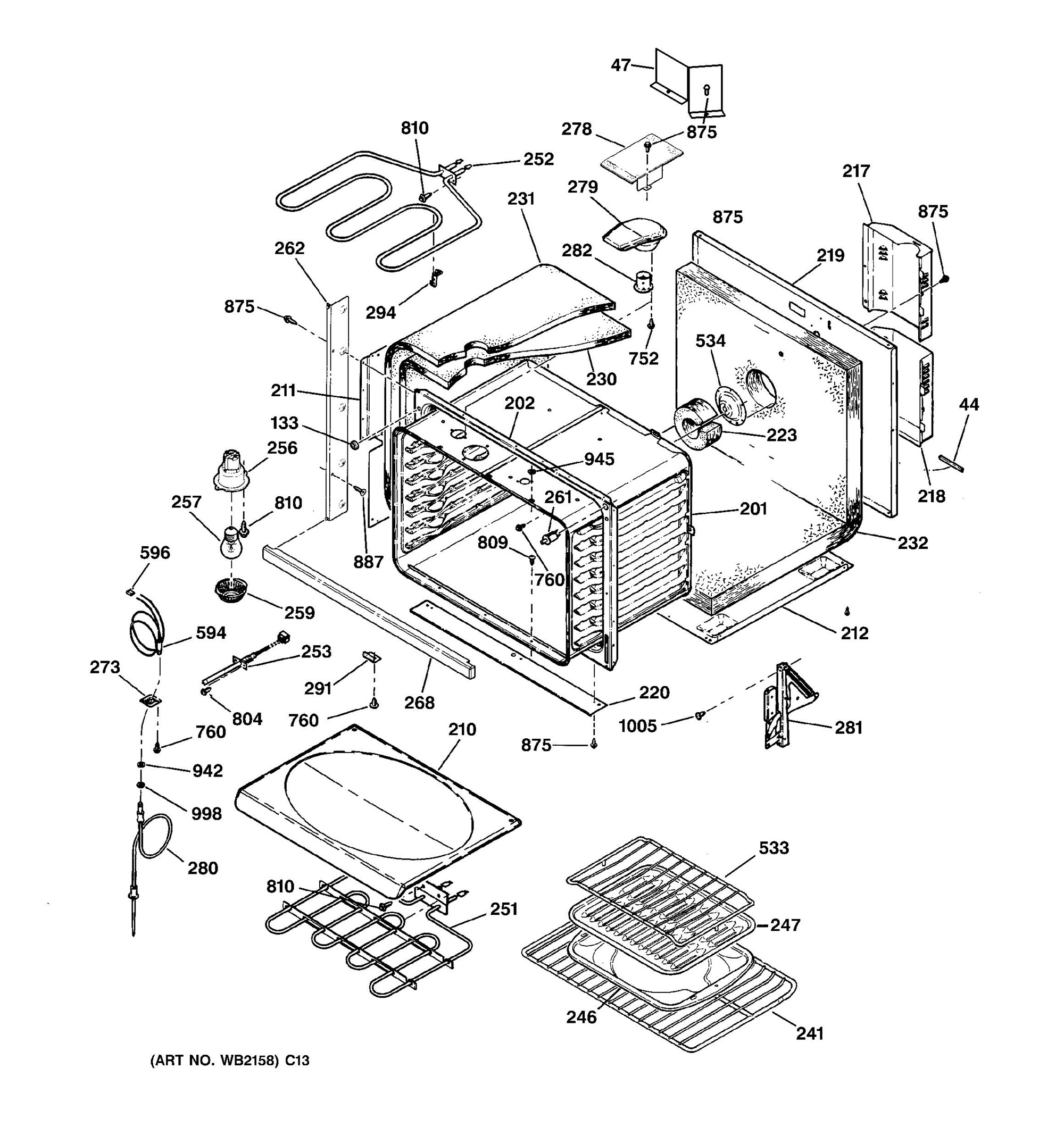

The image and part list below are associated with the component: BODY PARTS:
For Support or Ordering By Phone,
Call (800) 816-0715 Mon–Fri 8 am to 9 pm, Sat 8 am to 3 pm EST
| Description | Part# | Substitution# | Diagram Reference | ETA | ||
|---|---|---|---|---|---|---|
|
SCR 10-32 TR T | WB01T10008 | 1005 | 4 days | ||
|
DOOR PAD | WB01T10026 | 133 | 4 days | ||
|
BUMPER DOOR | WB01T10022 | 133 | 4 days | ||
|
FELT PAD | WB01K5115 | WB1K5115 | 133 | 4 days | |
|
WRAPPER OVN CAV ASM | WB63T10033 | 201 | 4 days | ||
|
FRAME FRT | WB63T10058 | 202 | 11 days | ||
|
FALSE BOTTOM | WB63T10034 | 210 | 4 days | ||
|
LOW OVN INSLN RETAINER | WB02K5306 | WB2K5306 | 211 | 4 days | |
|
BTTM INSULATION RETAINER | WB02K5305 | WB02T10143 | 212 | 11 days | |
|
COVER WIRE UPR RR | WB34K5193 | 217 | 11 days | ||
|
COVER WIRE LWR RR | WB34K5192 | 218 | 11 days | ||
|
BACK INSULATION RETAINER | WB02K5307 | WB2K5307 | 219 | 11 days | |
|
SHIELD BTM TRIM | WB34K5195 | 220 | 11 days | ||
|
OV INSULATION SUPPORT | WB35K5117 | WB35T10090 | 223 | 4 days | |
|
INSULATION TOP/SDS (INR) | WB35K5118 | 230 | 4 days | ||
|
INSULATION TOP/SDS (OUT) | WB35K5119 | 231 | 11 days | ||
|
|
INSULATION BACK & BTM | WB35K5116 | WB35T10090 | 232 | 4 days | |
|
OVEN RACK-CONVX | WB48K5022 | 241 | 4 days | ||
|
BROILER PAN | WB48T10006 | WB48X10056 | 246 | 4 days | |
|
|
BROILER PAN GRID | WB48T10005 | WB48X10056 | 247 | 4 days | |
|
ELEMENT BAKE (3400W) | WB44T10006 | 251 | 4 days | ||
|
BROIL ELEMENT | WB44K5017 | 252 | 4 days | ||
|
SENSOR-OVEN | WB23X5340 | 253 | - |
|
|
|
OVEN LAMP HOLDER ASM | WB08T10002 | 256 | 4 days | ||
|
OVEN LAMP | BUY LOCAL | 257 | 11 days | ||
|
OVEN BULB LENS | WB25T10002 | 259 | 4 days | ||
|
OV DR LIGHT SW | WB24K5031 | WB24T10147 | 261 | 4 days | |
|
VERTICAL SIDE TRIM-BLK | WB07K5307 | WB7K5307 | 262 | 11 days | |
|
TRIM BTM (BLK) | WB07T10037 | WB07T10401 | 268 | 4 days | |
|
PR0BE COVER | WB34K5140 | WB2X8309 | 273 | 11 days | |
|
VENT BOX ASM | WB38T10015 | WB38T10014 | 279 | 11 days | |
|
PROBE | WB20X5050 | WB20T10024 | 280 | 4 days | |
|
HINGE ASM RT | WB14T10005 | 281 | 4 days | ||
|
HINGE ASM LT | WB14T10006 | 281 | 4 days | ||
|
VENT TUBE | WB28K5010 | 282 | 4 days | ||
|
COVER | WB02X9152 | WB2X9152 | 291 | 4 days | |
|
BROIL ELEMENT SUPPORT | WB02X9719 | WB2X9719 | 294 | 4 days | |
|
GROMMET STRIP (.020) | WB02K5225 | WB2K5225 | 44 | 11 days | |
|
AIR DEFLECTOR | WB39T10002 | 47 | 11 days | ||
|
ROAST RACK | WB48X5108 | 533 | 4 days | ||
|
OV CAVITY SUPPORT | WB26T10003 | 534 | 11 days | ||
|
JACK RECEPTACLE | WB08K5053 | WB8K5053 | 594 | 11 days | |
|
HOUSING ASM RECEPTACLE | WB08K5013 | WB8K5013 | 596 | 11 days | |
|
SCREW | WB01K5200 | WB1K5200 | 752 | 4 days | |
|
SCREW | WB01K5028 | WB1X536 | 760 | 4 days | |
|
SCREW | WB01X1127 | 804 | 11 days | ||
|
SCREW | WB01X1137 | WB1X1137 | 809 | 4 days | |
|
SCREW | WB01X1253 | WB1X1130 | 810 | 4 days | |
|
SCREW 8-18 AB HXW 3/8 | WH02X0930 | WH2X930 | 875 | 4 days | |
|
TRIM SCREW-BLK | WB01K5173 | WB1K5173 | 887 | 4 days | |
|
WASHER | WB01X5573 | WB1X5573 | 942 | 11 days | |
|
LOCKWASHER | WB01K5046 | WB1K5046 | 945 | 4 days | |
|
NUT | WB01X5572 | WB1X5572 | 998 | 11 days |
