Model# JBP24G*04

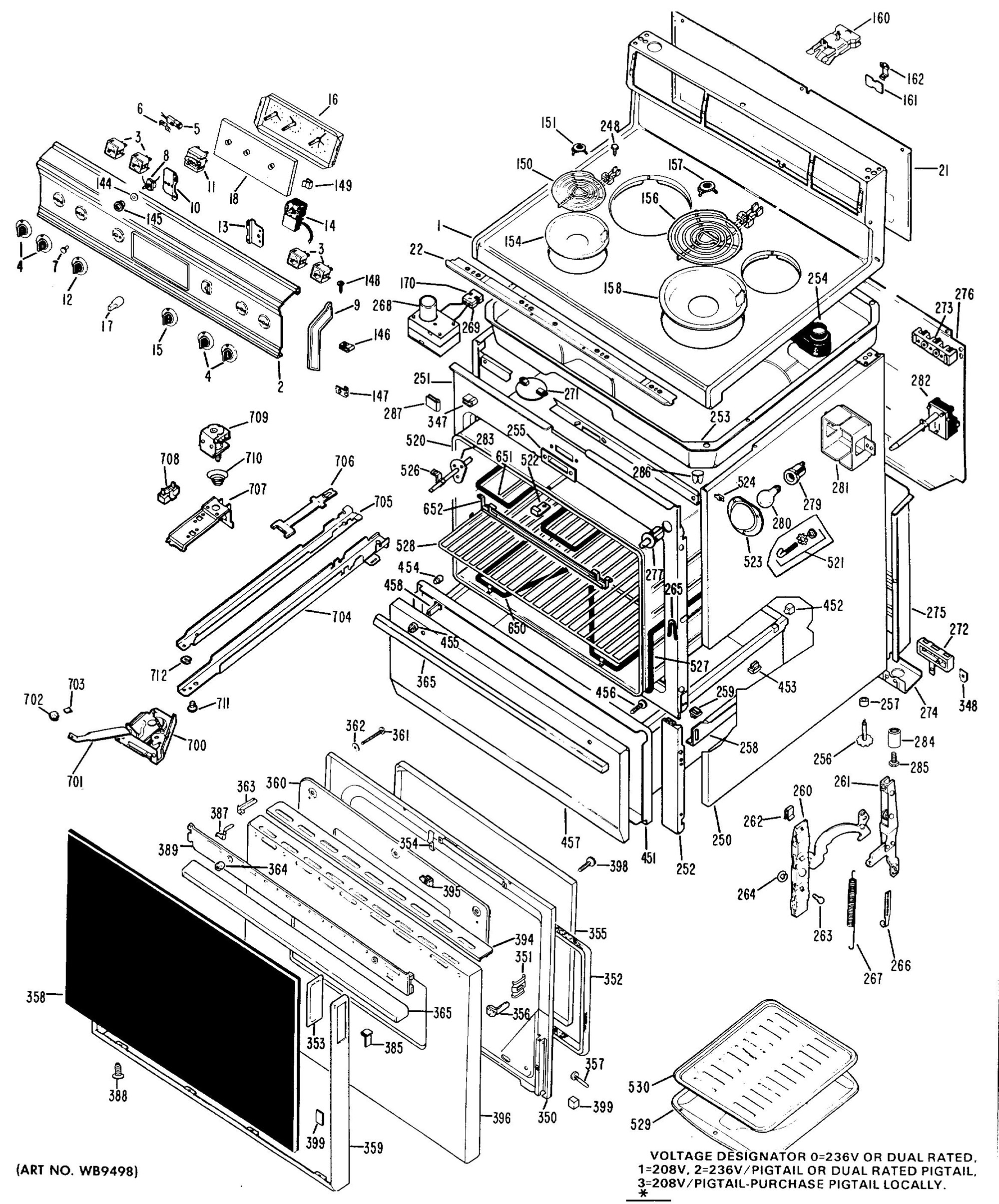

The image and part list below are associated with the component: Illustration 1:

For Support or Ordering By Phone,

Call (800) 816-0715 Mon–Fri 8 am to 9 pm, Sat 8 am to 3 pm EST

Click to View Diagram

Description	Part#	Substitution#	Diagram Reference	ETA
COOKTOP WH	WB62X1469		1	11 days
COOKTOP HA	WB62X1472		1	11 days
COOKTOP AD	WB62X1473		1	11 days
COOKTOP CF	WB62X1470		1	11 days
COOKTOP FA	WB62X1471		1	11 days
BRACKET LH	WB02X3261		10	11 days
OVEN SWITCH	WB22X5100	WB22X5122	11	11 days
KNOB OVEN SWITCH	WB03X0465	WB3X465	12	3 days
BRACKET RH	WB02X3262		13	11 days
SLEEVE CAP TUBE	WB02X6274	WB2X6274	14	3 days
THERMOSTAT, DUAL	WB24X0176	WB21X5320	14	11 days
LOCKWASHER SWITCH	WB01X0588		144	11 days
NUT MT. SWITCHES	WB01X0246	WB1X246D	145	11 days
SPEEDNUT	WB01X0591		146	11 days
SPEEDNUT CAP	WB01X0578		147	11 days
SCREW	WZ04X0237	WZ4X237D	148	11 days
CLIP CRYSTAL	WB02X2901		149	11 days
KNOB THERMOSTAT	WB03X0471		15	11 days
SURFACE UNIT, 6"	WB30X0218	WB30X218	150	3 days
CENTER TRIM 6" UNIT	WB32X0052	WB32X52	151	3 days
PAN RING 6" CHROME	WB31X5010		154	3 days
SURFACE UNIT, 8"	WB30X0219	WB30X219	156	-
CENTER TRIM 8" UNIT	WB32X0051	WB32X51	157	3 days
PAN RING 8" CHROME	WB31X5011		158	3 days
TIMER	WB19X0146		16	11 days
SCREW RECEPT TERMINAL	WB01X5355	WB1X5355	160	3 days
RECEPTACLE ASM	WB17X5051		160	3 days
INSULATOR	WB02X6171	WB2X6171	161	3 days
CLIP INSULATOR	WB02X6172	WB2X6172D	162	3 days
KNOB TIMER	WB03X0459	WB3X459	17	3 days
CRYSTAL TIMER	WB36X0409	WB36X409	18	11 days
TRIM SWITCH	WB07X1113	WB7X6816	2	11 days
COVER BACK	WB49X0335		21	11 days
DEFLECTOR	WB07X1114	WB7X6769	22	3 days
SCR 8-18 B HXW 1/4 S	WB01X0500	WB1X500D	248	3 days
FRAME FRONT	WB56X1349		251	11 days
FILLER PANEL	WB49X0322		252	11 days
BOX COOKTOP	WB49X0341		253	11 days
VENT BODY	WB38X0050		254	11 days
TRIM LATCH	WB07X0552	WB7X7036	255	11 days
LEVELING SCREW	WB01X0450	WB1X5516	256	3 days
SLEEVE	WB02X3386		257	11 days
DRAWER GUIDE RH & LH	WB39X0051	WB39X10004	258	3 days
SLIDE	WB02X0831	WB2X831D	259	3 days
HINGE LEVER ASM	WB10X0147	WB10X5206	260	3 days
HINGE SPT RH	WB10X0148	WB10X148	261	3 days
HINGE SPT LH	WB10X0149	WB10X149	261	3 days
CLIP SHIM	WB02X3193	WB2X3193	262	3 days
PIN HINGE DOOR	WB02X6195	WB2X6195	263	3 days
RING RETAINING	WB02X1082	WB2X1082	264	3 days
GUIDE HINGE LEVER	WB02X6342	WB2X1460	265	3 days
HOOK DOOR SPRING	WB02X2506	WB2X2506	266	3 days
SPRING DOOR	WB09X0143	WB9X5117	267	3 days
SMOKE ELIMINATOR	WB29X0047		268	11 days
TERMINAL BLOCK	WB02X3388		269	11 days
VENT BAFFLE	WB02X1626	WB2X1626	271	11 days
TERMINAL BLOCK-POWER	WB17X0168	WB17X5095	272	3 days
BLOCK TERM DISTRIBUTION	WB17X0167		273	11 days
BRACKET KNOCKOUT	WB02X1908	WB2X1908	274	11 days
GUARD TERMINAL	WB02X3137	WB2X3137	275	3 days
COVER BACK	WB49X0336		276	11 days
OVEN LIGHT SWITCH	WB24X0105	WB24K2	277	11 days
RECEPTACLE	WB08X0191	WB8X191	279	3 days
GUARD LAMP	WB02X3466		281	11 days
SWITCH, THERMAL	WB24X0175		282	11 days
GASKET-TLS	WB02X3163	WB2X3163	283	3 days
PLATE	WB02X3164	WB2X3164	283	11 days
FOOT	WB02X3330		284	11 days
SCREW	WZ04X0394		285	11 days
PLUG BUTTON	WB02X3394	WB2X3394	286	3 days
CLAMP HARNESS	WB01X0386	WB1X386	287	11 days
BARRIER	WB02X6494	WB2X6494	3	3 days
SWITCH INFINITE CONTROL	WB21X5217	WB21X36771	3	11 days
HARNESS CLAMP	WB02X1742		347	11 days
PLATE-GROUND	WB02X0646	WB2X646	348	11 days
INSULATION	WB02X3140	WB2X8109	350	11 days
INSULATION	WB02X3433	WB2X8109	350	11 days
DOOR LINER	WB55X0380		350	11 days
SPACER DOOR	WB02X6270	WB2X6270	351	-
GASKET DOOR	WB02X3138	WB2X3138	352	3 days
PAD TRIM	WB02X6573	WB2X6573	353	11 days
STRIKE SPRING	WB09X0154	WB9X154	354	11 days
REFLECTOR-FOIL	WB02X1798	WB2X1798	355	11 days
PANEL INNER	WB55X0423		355	11 days
CLIP-TRIM DOOR	WB02X6574	WB2X6574	356	3 days
SCREW NAIL POINT	WB01X0558	WB1X558D	357	3 days
GLASS BLACK	WB36X0554	WB36X5557	358	3 days
TRIM DOOR	WB07X5625		359	11 days
GUARD INSULATION	WB55X0381	WB55X5283	360	11 days
SCREW MT. HANDLE	WZ04X0415		361	11 days
WASHER CONTOURED	WB01X0119		362	11 days
SPACER PANEL	WB02X6204	WB2X6204	363	3 days
GROMMET HANDLE	WB02X3258	WB2X3258	364	3 days
HANDLE	WB15X0147	WB15X10225	365	3 days
CAP TRIM	WB07X5631	WB7X5631	385	11 days
CLIP TRIM	WB02X6575		387	11 days
SCREW	WZ04X0231	WZ4X345D	388	3 days
TRIM DOOR	WB07X5629		389	11 days
TRIM TOP	WB07X1155		394	11 days
CLIP MTG DOOR TRIMS	WB02X3053		395	11 days
PANEL DOOR	WB56X1466		396	11 days
SCR SHOULDER	WB01X0600	WB1X600D	398	3 days
PAD	WB02X3285	WB2X3285	399	11 days
KNOB SURFACE UNIT	WB03X0464	WB3X464	4	3 days
DRAWER ASM	WB58X0050	WB58X50	451	11 days
NYLON SLIDE-SIDE	WB02X0840	WB2X840D	452	3 days
NYLON SLIDE-BTM.	WB02X0841	WB2X841D	453	3 days
BUMPER	WB02X0584	WB2X584	454	3 days
HANDLE SPACER	WB02X3135	WB2X3135	455	3 days
HANDLE SCREW	WZ04X0395		456	11 days
DRAWER PANEL WH	WB56X1396		457	11 days
DRAWER PANEL CF	WB56X1397		457	11 days
DRAWER PANEL FA	WB56X1398		457	11 days
DRAWER PANEL HA	WB56X1399		457	11 days
DRAWER PANEL AD	WB56X1400	WB56X10090	457	11 days
SPACER PANEL	WB02X3387		458	11 days
LAMP 118V	WB02X1608	WB2X1608	5	3 days
NEON LAMP 240V	WB02X3468	WB2X3468	5	3 days
INSULATION	WB02X6496		520	11 days
OVEN LINER	WB53X0237		520	11 days
OVEN HOOK PACKAGE	WB09X0088	WB9X88	521	11 days
TRIM CLIP	WB02X3393		522	11 days
LAMP COVER ASM	WB36X0192	WB36X192	523	3 days
CLIP	WB02X1659	WB2X1659D	524	11 days
HANGER-TLS	WB02X3165	WB2X3165	526	3 days
MULLION UNIT CLIP	WB02X3253		527	11 days
MULLION UNIT	WB44X0186	WB44X186	527	11 days
OVEN RACK	WB48X5044		528	3 days
BROIL PAN	WB49X0088	WB48X10056	529	3 days
BROILER PAN RACK	WB48X5002	WB48X10056	530	3 days
CLIP	WB02X1185	WB2X1185	6	3 days
BAKE UNIT 208/240V	WB44X5082		650	3 days
BROIL UNIT	WB44X0185	WB44X173	651	3 days
BROIL UNIT SUPPORT	WB02X1810	WB2X1452	652	3 days
JEWEL	WB25X0065	WB25X65	7	3 days
LATCH ASM.	WB14X0036	WB14X5035	700	3 days
HANDLE	WB15X0142	WB15X142	701	11 days
KNOB LATCH	WB03X0322	WB3X5667	702	-
RETAINER KNOB	WB02X2030	WB2X2030	703	3 days
CHANNEL LATCH	WB02X3174	WB2X7707	704	11 days
CHANNEL LOCKING	WB02X3175	WB2X3175	705	11 days
LOCKING PAWL ASM	WB02X3159	WB2X3159	706	11 days
PLATE MOUNTING	WB02X3176		707	11 days
SWITCH, LATCH	WB24X0183		708	11 days
SOLENOID	WB24X0197	WB24X5097	709	3 days
SPRING-PLUNGER	WB09X0148	WB9X148	710	3 days
PIVOT STUD	WB02X6212		711	11 days
RETAINING RING	WB02X1800	WB2X1800	712	11 days
BARRIER	WB02X3147		712	11 days
SWITCH, LATCH RELEASE	WB24X0166	WB24X5139	8	11 days
END CAP RH	WB07X1083		9	11 days
END CAP LH	WB07X1084	WB7X1084	9	11 days
MANUAL USERS	49-4320		9999	11 days
