Model# JB735FP1DS

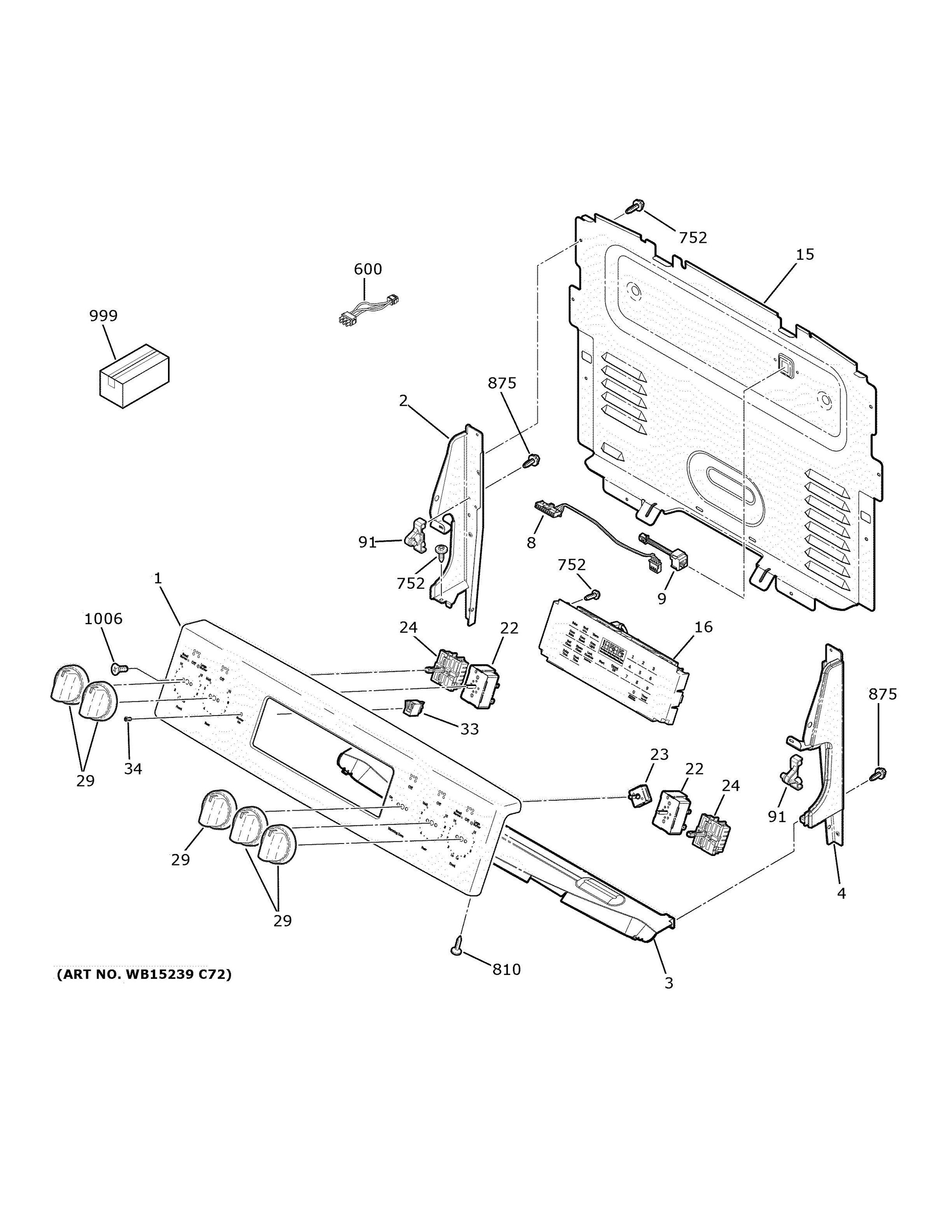

The image and part list below are associated with the component: CONTTROL PANEL:
For Support or Ordering By Phone,
Call (800) 816-0715 Mon–Fri 8 am to 9 pm, Sat 8 am to 3 pm EST
| Description | Part# | Substitution# | Diagram Reference | ETA | ||
|---|---|---|---|---|---|---|
|
BLACK SLATE CONTROL PANEL TRIM | WB07X37726 | 1 | 11 days | ||
|
SCR 8-32 TT FLP .270 | WB01X23501 | 1006 | 11 days | ||
|
CONTROL PANEL BACK COVER | WB34X29576 | 15 | 11 days | ||
|
STAINLESS CONTROL PANEL & BOARD | WB27X38026 | WB27X47793 | 16 | 11 days | |
|
END PLATE LH DG | WB07X29534 | 2 | 11 days | ||
|
CONTROL INFINITE SWITCH | WB24T10029 | 22 | 1 days | ||
|
SWITCH ROTARY | WB24X25302 | 23 | 11 days | ||
|
SWITCH INFINITE CONTROL | WB24X25013 | 24 | 11 days | ||
|
KNOB ASM TS | WB03X29165 | 29 | 11 days | ||
|
BACKGUARD SHIELD HEAT | WB34X28565 | 3 | 11 days | ||
|
LIGHT INDICATOR PILOT | WB25X20005 | 33 | 1 days | ||
|
LENS | WB25X24023 | 34 | 11 days | ||
|
END PLATE RH DG | WB07X29535 | 4 | 11 days | ||
|
MAINTOP AND INF. SWITCHES HARNESS | WB18X32660 | 600 | 11 days | ||
|
SCREW | WB01K5200 | 752 | 11 days | ||
|
HARNESS RJ45 WIFI | WB18X37710 | 8 | 11 days | ||
|
SCREW 8-18 | WB1K60 | 810 | 1 days | ||
|
SCREW | WH2X930 | 875 | 1 days | ||
|
HARNESS RJ45 INT CONNECT | WB18X37723 | WB18X38667 | 9 | 11 days | |
|
PIN RANGETOP HINGE | WB10T10116 | 91 | 11 days | ||
|
PM INSTRUCTIONS INSTALL | 31-11105 | 999 | 11 days | ||
|
INSTRUCTION INSTALL | 31-10617 | 999 | 11 days | ||
|
MANUAL U&C TIP SHEET | 49-80597 | 999 | 11 days | ||
|
PM INSTALL INSTRUCTIONS | 31-10781 | 999 | 11 days | ||
|
PM MINI MANUAL AND WIRING | 31-2000780 | 999 | 11 days |
