Model# IK8FXNGFDM02

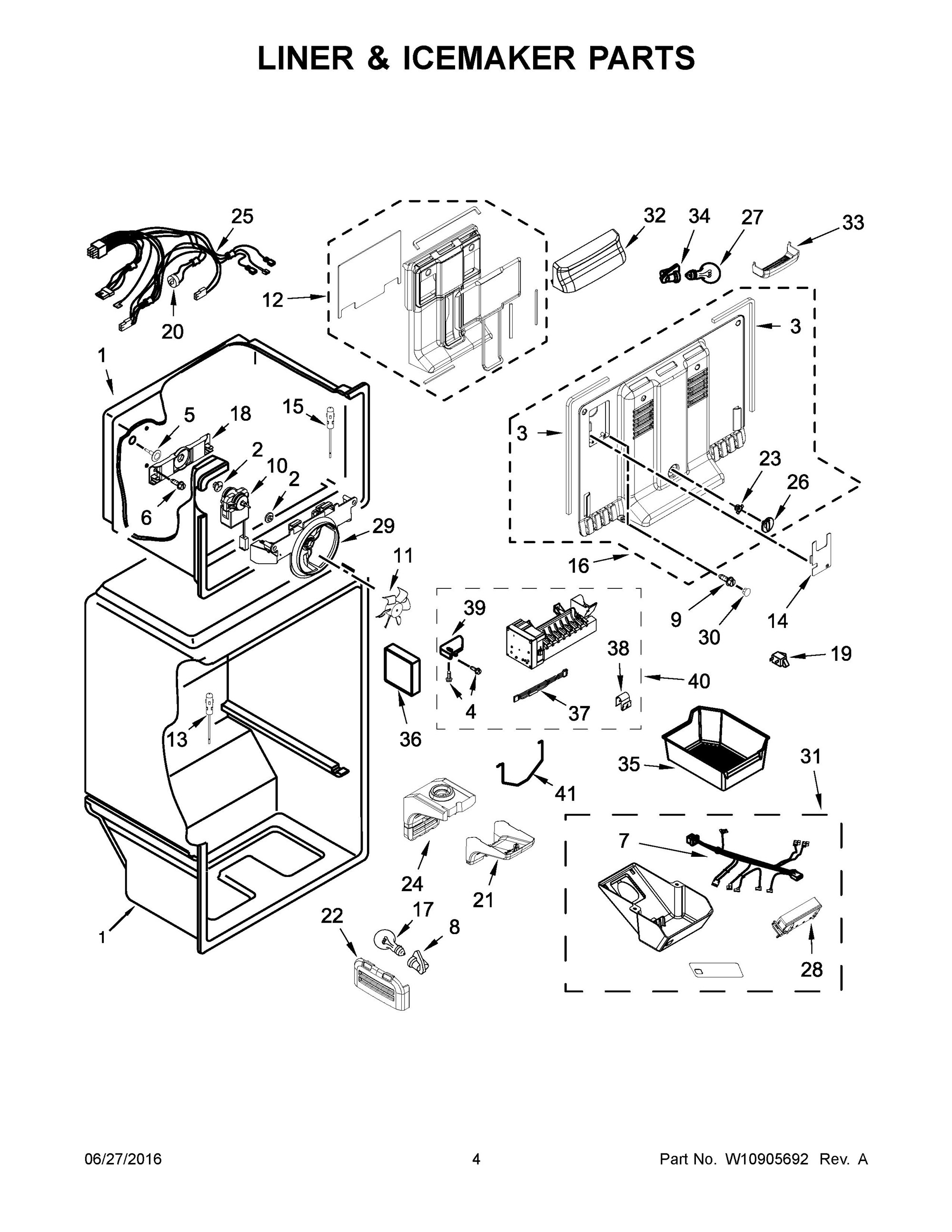

The image and part list below are associated with the component: 03 - LINER & ICEMAKER PARTS:
For Support or Ordering By Phone,
Call (800) 816-0715 Mon–Fri 8 am to 9 pm, Sat 8 am to 3 pm EST
| Description | Part# | Substitution# | Diagram Reference | ETA | ||
|---|---|---|---|---|---|---|
|
LINER (NOT SERVICED)", | NP | 1 | 11 days | ||
|
MOTOR, EVAPORATOR FAN", | 2315539 | WP2315539 | 10 | 1 days | |
|
BLADE, FAN", | 2200509 | WP2163777 | 11 | - |
|
|
ASSEMBLY, EVAPORATOR PLENUM", | W10676682 | W10919804 | 12 | - |
|
|
THERMISTOR, REFRIGERATOR COMPARTMENT", | W10384183 | WPW10384183 | 13 | 1 days | |
|
COVER, HOLE", | W10763751 | 14 | 1 days | ||
|
THERMISTOR, FREEZER EVAPORATOR", | W10383615 | WPW10383615 | 15 | 1 days | |
|
COVER, EVAPORATOR", | W10668482 | W11024683 | 16 | 1 days | |
|
LAMP, LED", | W10820003 | W11216993 | 17 | 11 days | |
|
BRACKET, EVAPORATOR FAN REAR", | 2254454 | 18 | 4 days | ||
|
Switch, Rocker Arm", | 1118894 | W11384469 | 19 | 11 days | |
|
GROMMET", | 2197380 | WP2264462 | 2 | 1 days | |
|
|
BI-METAL DEFROST (NOT SERVICED)", | NP | 20 | 11 days | ||
|
COVER, AIR DIFFUSER", | W10705209 | W11256504 | 21 | 11 days | |
|
CUP, AIR DIFFUSER", | W10638176 | 22 | 1 days | ||
|
BAFFLE, AIR MANUAL", | W10570951 | W11244470 | 23 | - |
|
|
ASSEMBLY, AIR DIFFUSER", | W10633587 | W10861170 | 24 | 1 days | |
|
ASSEMBLY, EVAPORATOR FAN WIRE (INCLUDES BI-METAL DEFROST)", | W10637660 | W11551368 | 25 | 11 days | |
|
KNOB, AIR CONTROL", | W10570952 | W11026417 | 26 | - |
|
|
LAMP, LED", | W10574850 | W11518235 | 27 | 11 days | |
|
CONTROL, ELECTRONIC", | W10643378 | WPW10643378 | 28 | 1 days | |
|
BRACKET, FAN MOTOR", | W10321162 | W10850162 | 29 | 1 days | |
|
GASKET, EVAPORATOR COVER", | W10709194 | W10849448 | 3 | 1 days | |
|
COVER, SCREW", | W10487421 | W10854527 | 30 | 1 days | |
|
ASSEMBLY, CONTROL BOX", | W10841254 | W11352623 | 31 | 11 days | |
|
HOUSING, FREEZER LIGHTING", | W10313917 | WPW10313917 | 32 | - |
|
|
LENS, LIGHT", | W10313918 | WPW10313918 | 33 | - |
|
|
SOCKET, LIGHT", | W10440814 | W11661565 | 34 | - |
|
|
Pan, Ice Cube", | 2166261 | W11625904 | 35 | 11 days | |
|
COVER, ICEMAKER", | W10289690 | WPW10289690 | 36 | 1 days | |
|
ASSEMBLY, ICE MAKER WIRE", | W10309400 | W11643622 | 37 | 11 days | |
|
Clip, Thermal Fuse", | 628379 | WP628379 | 38 | 1 days | |
|
BRACKET, ICEMAKER MOUNTING", | 628320 | W11500948 | 39 | 11 days | |
|
Screw", | 489478 | WP489478 | 4 | 1 days | |
|
ASSEMBLY, ICEMAKER", | W10632400 | 4317943 | 40 | 1 days | |
|
ARM, SHUT OFF", | W10646481 | 41 | 1 days | ||
|
HOLE PLUG (WHITE)", | 941839 | WP941839 | 5 | 1 days | |
|
SCREW", | 488208 | WP488163 | 6 | 1 days | |
|
WIRE ASSEMBLY, CONTROL BOX", | W10637672 | W11436564 | 7 | - |
|
|
Socket, Light", | 2162085 | 8 | 11 days | ||
|
Screw", | 8281232 | W11544659 | 9 | - |
|
