Model# HBL455 AUC

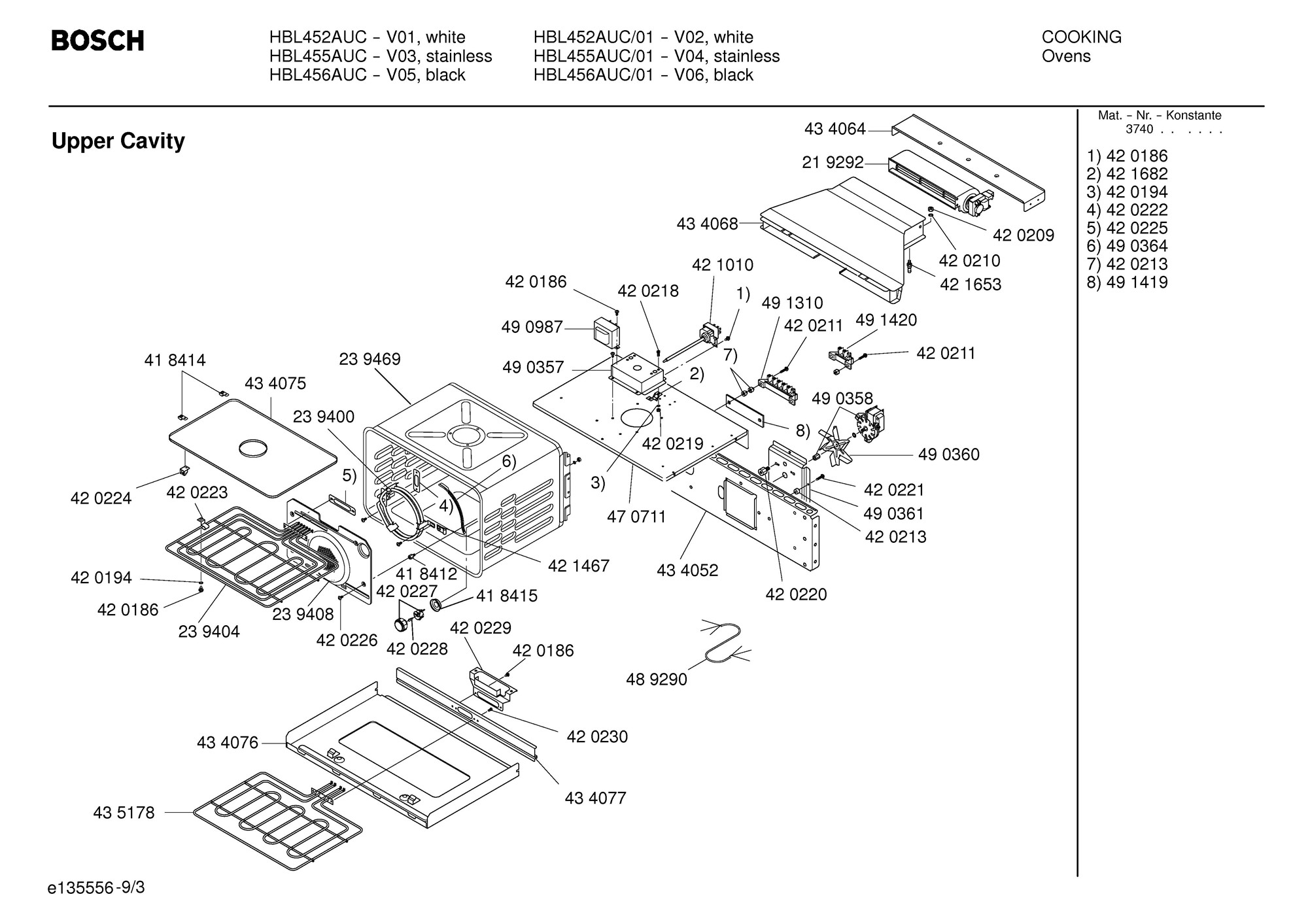

The image and part list below are associated with the component: 03 - UPPER CAVITY:
For Support or Ordering By Phone,
Call (800) 816-0715 Mon–Fri 8 am to 9 pm, Sat 8 am to 3 pm EST
| Description | Part# | Substitution# | Diagram Reference | ETA | ||
|---|---|---|---|---|---|---|
|
Screw, M4.2 x 9.5 | 420186 | 00420186 | 1 | 3 days | |
|
Lockwasher, M4 | 420194 | 00420194 | 10 | 11 days | |
|
Broil element | 239404 | 00239404 | 11 | 3 days | |
|
Rear baffle, convection, black, HBL 4/7 | 239408 | 00239408 | 12 | - |
|
|
Screw | 420226 | 00420226 | 13 | 11 days | |
|
Oven bulb, halogen, 12V, 20W | 420228 | 00189351 | 14 | 3 days | |
|
Bracket, bake element | 420229 | 00420229 | 15 | 11 days | |
|
Shield, lamp bulb | 418415 | 00418415 | 16 | 3 days | |
|
Bulb socket with lens | 420227 | 00420227 | 17 | 3 days | |
|
Threaded spacer, rear baffle | 418412 | 00418412 | 18 | 3 days | |
|
Clamp | 421467 | 00421467 | 19 | 11 days | |
|
Transformer, 120V / 12V | 490987 | 00418461 | 2 | 3 days | |
|
Tray, bake element | 434076 | 00434076 | 20 | 11 days | |
|
Heater, bottom | 435178 | 00435178 | 21 | 3 days | |
|
Trim, bake element tray | 434077 | 00434077 | 22 | 11 days | |
|
Screw, M4 x 7 | 420230 | 00420230 | 23 | 3 days | |
|
Wire harness, HBL/HBN 45 | 489290 | 00489290 | 24 | 11 days | |
|
Screw, convection fan support | 420220 | 00420220 | 25 | 3 days | |
|
Rear band | 434052 | 00434052 | 26 | 11 days | |
|
Partition, cavity | 470711 | 00470711 | 27 | 11 days | |
|
Nut, M4 | 420219 | 00420219 | 28 | 11 days | |
|
Spacer | 420213 | 00420213 | 29 | 3 days | |
|
Support, cooling channel | 490357 | 00490357 | 3 | 11 days | |
|
Support, convection fan | 490361 | 00490361 | 30 | 3 days | |
|
Screw, M4.2 x 19 | 420221 | 00420221 | 31 | 11 days | |
|
Fan blade | 490360 | 00497261 | 32 | 3 days | |
|
Convection fan motor, with nut -- see 490360 for fan blade | 490358 | 00490358 | 33 | 3 days | |
|
Screw, M4.2 x 32 | 420211 | 00420211 | 34 | 11 days | |
|
Terminal | 491420 | 00491420 | 35 | 3 days | |
|
Terminal block, main | 491310 | 00491310 | 36 | 3 days | |
|
Screw, M4 x 12 | 420218 | 00420218 | 37 | 3 days | |
|
Thermometer | 421010 | 00421010 | 38 | 3 days | |
|
Cooling channel | 434068 | 00434068 | 39 | 11 days | |
|
Cavity, black, convection single oven, HBL 4 (not a service part) | 239469 | 00239469 | 4 | 11 days | |
|
Pin | 421653 | 00421653 | 40 | 3 days | |
|
Lockwasher, M5 | 420210 | 00420210 | 41 | 11 days | |
|
Nut, M5 | 420209 | 00420209 | 42 | 11 days | |
|
Cooling fan, HBL | 219292 | 43 | 11 days | ||
|
Support, cooling fan | 434064 | 00434064 | 44 | 11 days | |
|
Tension clip, HBL4 | 421682 | 00421682 | 45 | 11 days | |
|
Seal, ring element | 420222 | 00420222 | 46 | 3 days | |
|
Seal, broil element | 420225 | 00420225 | 47 | 3 days | |
|
Air channel | 490364 | 00490364 | 48 | 11 days | |
|
Insulator | 491419 | 00491419 | 49 | 3 days | |
|
Clamp, thermostat bulb | 418414 | 00418414 | 5 | 11 days | |
|
Reflector, broil element | 434075 | 00434075 | 6 | 3 days | |
|
Convection (ring element) | 239400 | 00241778 | 7 | 3 days | |
|
Clamp, broil element | 420223 | 00420223 | 8 | 3 days | |
|
Clamp, broil element | 420224 | 00420224 | 9 | 11 days |
