Model# GZS22IENSHDS

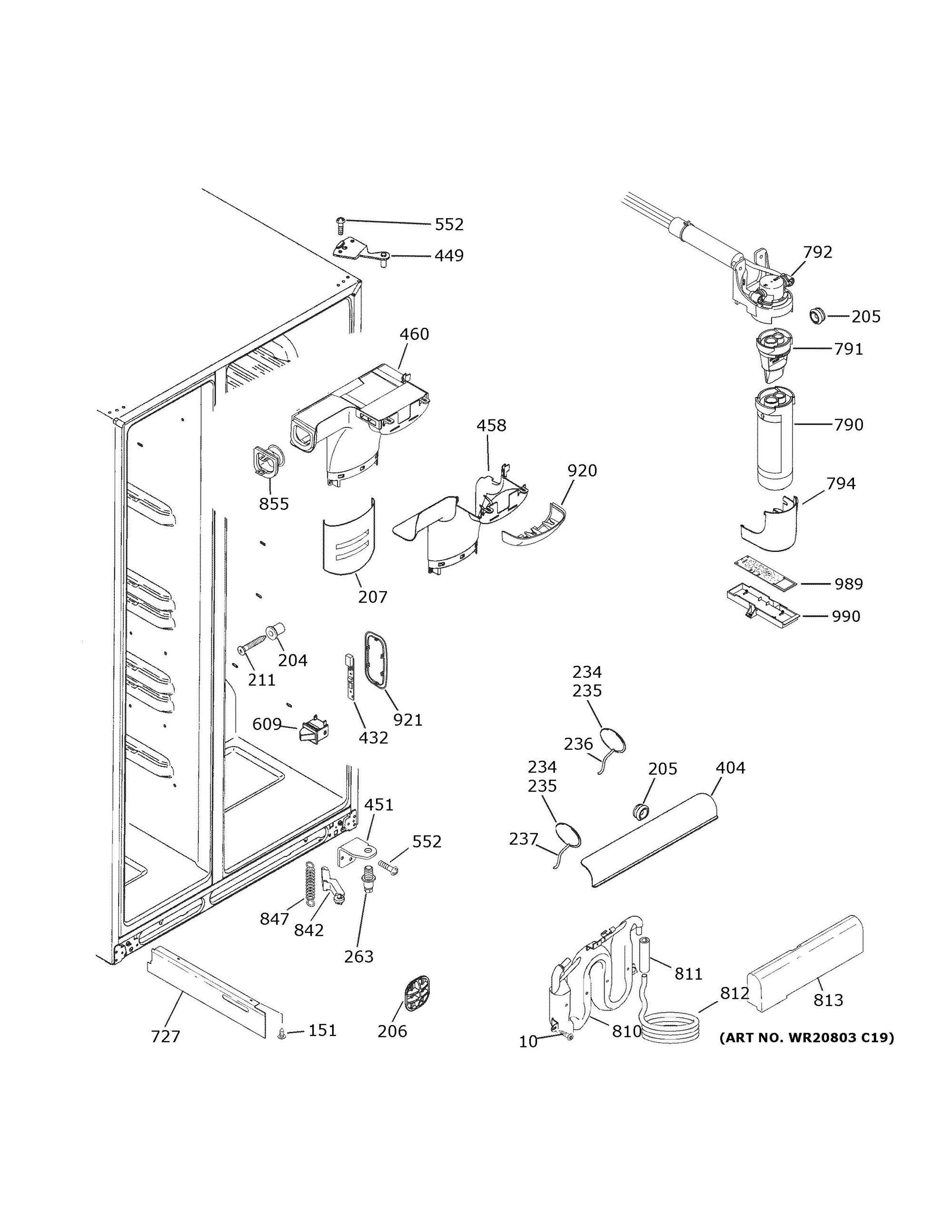

The image and part list below are associated with the component: FRESH FOOD SECTION:
For Support or Ordering By Phone,
Call (800) 816-0715 Mon–Fri 8 am to 9 pm, Sat 8 am to 3 pm EST
| Description | Part# | Substitution# | Diagram Reference | ETA | ||
|---|---|---|---|---|---|---|
|
SCREW 8-18 BA POR 5/8 SS | WR01X10065 | 10 | 5 days | ||
|
SCR 8-18 AB IHXW 9/16 S | WR01X10588 | 151 | 5 days | ||
|
Support shelf | WR02X12187 | 204 | 5 days | ||
|
GROMMET | WR02X10678 | 205 | 5 days | ||
|
GRILLE AIR RETURN | WR02X10671 | 206 | 5 days | ||
|
COVER INLET DISCHARGE | WR17X10909 | 207 | 5 days | ||
|
Scr8-18 AB UFL 1 1/2 SS | WR01X10568 | 211 | 5 days | ||
|
GRILLE SENSOR | WR02X10647 | 234 | 5 days | ||
|
SHUNT SENSOR | WR02X10668 | 235 | 5 days | ||
|
SENSOR TEMPERATURE | WR55X10939 | WR55X10025 | 236 | 5 days | |
|
|
SENSOR TEMPERATURE | WR55X10711 | WR55X10025 | 237 | 5 days | |
|
PIN HINGE BTM ADJ HOLLOW | WR02X12263 | 263 | 5 days | ||
|
DIVERTER FF AIRFLOW | WR17X11609 | 404 | 5 days | ||
|
BOARD LED LIGHT ASM | WR55X26671 | 432 | 11 days | ||
|
HINGE TOP & PIN ASM | WR13X20429 | 449 | 11 days | ||
|
HINGE BTM BLACK | WR13X10159 | 451 | 5 days | ||
|
COVER FF INLET | WR17X12881 | 458 | 11 days | ||
|
COVER ASM FF INLET | WR49X10251 | 460 | - |
|
|
|
SCR 12-24 TT OVT 1.000 S | WR01X10918 | 552 | 11 days | ||
|
SWITCH LIGHT | WR23X10530 | WR23X31507 | 609 | 11 days | |
|
SEPARATOR AIR HISIDE | WR17X12382 | 727 | 11 days | ||
|
XWFE RETAIL FILTER | XWFE | 790 | 11 days | ||
|
BYPASS FILTER PLUG | WR17X33825 | 791 | 11 days | ||
|
XWF MANIFOLD & TUBING | WR17X30702 | WR14X47687 | 792 | 11 days | |
|
XWFE FILTER COVER | WR17X34485 | 794 | 11 days | ||
|
WATER TANK DISP ASM | WR17X11440 | 810 | 5 days | ||
|
INSUL TUBE FOAM | WR02X11288 | 811 | 5 days | ||
|
TUBE PLASTIC | WR17X11439 | WR17X2891 | 812 | 5 days | |
|
INSULATION TANK FOAM | WR17X11620 | 813 | 5 days | ||
|
LEVER ASSY FF SIDE BLACK | WR11X10009 | 842 | 5 days | ||
|
SPRING CLOSURE | WR01X2027 | WR1X2027 | 847 | 5 days | |
|
DUCT ASM FF TRANSITION | WR02X13091 | 855 | 5 days | ||
|
COVER GASKET FF ASM | WR17X12977 | 920 | 11 days | ||
|
COVER LED | WR17X12871 | 921 | 11 days | ||
|
PCB NEXTGEN RFID | WR55X35485 | WR55X43866 | 989 | 11 days | |
|
RFID COVER & FCC LABEL | WR02X35926 | 990 | 11 days |
