Model# GWE19JYLGFFS

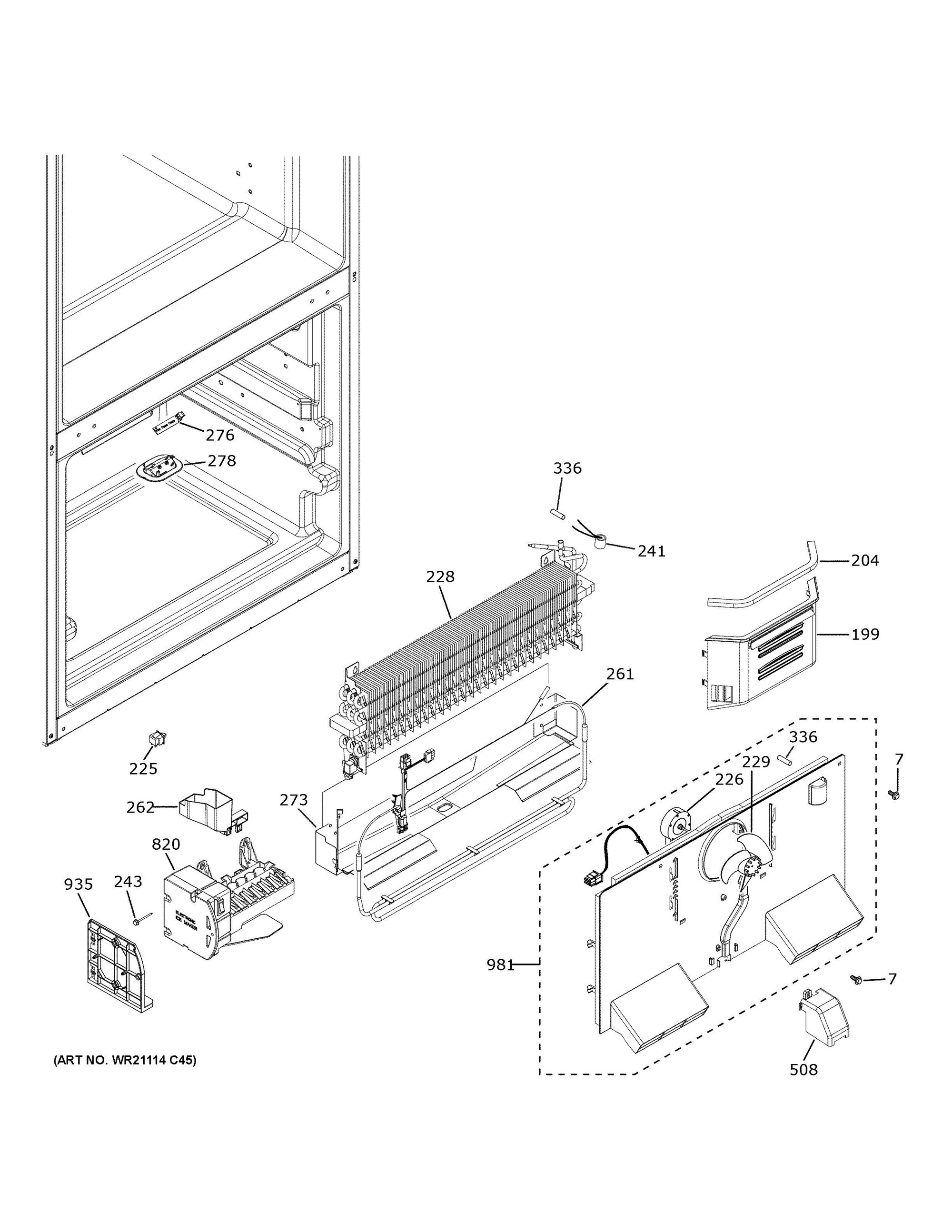

The image and part list below are associated with the component: FREEZER SECTION:
For Support or Ordering By Phone,
Call (800) 816-0715 Mon–Fri 8 am to 9 pm, Sat 8 am to 3 pm EST
| Description | Part# | Substitution# | Diagram Reference | ETA | ||
|---|---|---|---|---|---|---|
|
EVAP COVER & FAN | WR17X40007 | 199 | 11 days | ||
|
FOAM STRIP SE ADH | WR14X24804 | 204 | 11 days | ||
|
LIGHT SWITCH | WR23X39269 | 225 | 11 days | ||
|
MOTOR DC EVAP FAN | WR60X39625 | 226 | 11 days | ||
|
EVAPORATOR | WR85X40008 | 228 | 11 days | ||
|
EVAPORATOR FAN BLADE | WR60X30922 | 229 | 11 days | ||
|
THERMOSTAT DEF | WR50X10069 | 241 | 2 days | ||
|
SCR 8-18 AB HXW 5/4 S | WR01X10626 | 243 | 11 days | ||
|
DEFROST HEATER & HARNESS | WR51X39386 | 261 | 11 days | ||
|
CUP FILL IM | WR29X24823 | 262 | 11 days | ||
|
TROUGH DRAIN ASM | WR17X24814 | 273 | 11 days | ||
|
BOARD LED LIGHT ASM | WR55X24870 | 276 | 11 days | ||
|
SHIELD LIGHT | WR02X38285 | 278 | 11 days | ||
|
SENSOR TEMP FF | WR55X10025 | 336 | 2 days | ||
|
CONNECTOR COVER | WR02X40125 | 508 | 11 days | ||
|
SCR 8-18 AB IHW 5/8 S | WR01X10652 | 7 | 2 days | ||
|
ICEMAKER | WR30X39385 | 820 | 11 days | ||
|
SUPPORT IM | WR02X24817 | 935 | 11 days | ||
|
EVAPORATOR COVER & FAN | WR49X40245 | 981 | 11 days |
