Model# GTX52EASP0WB

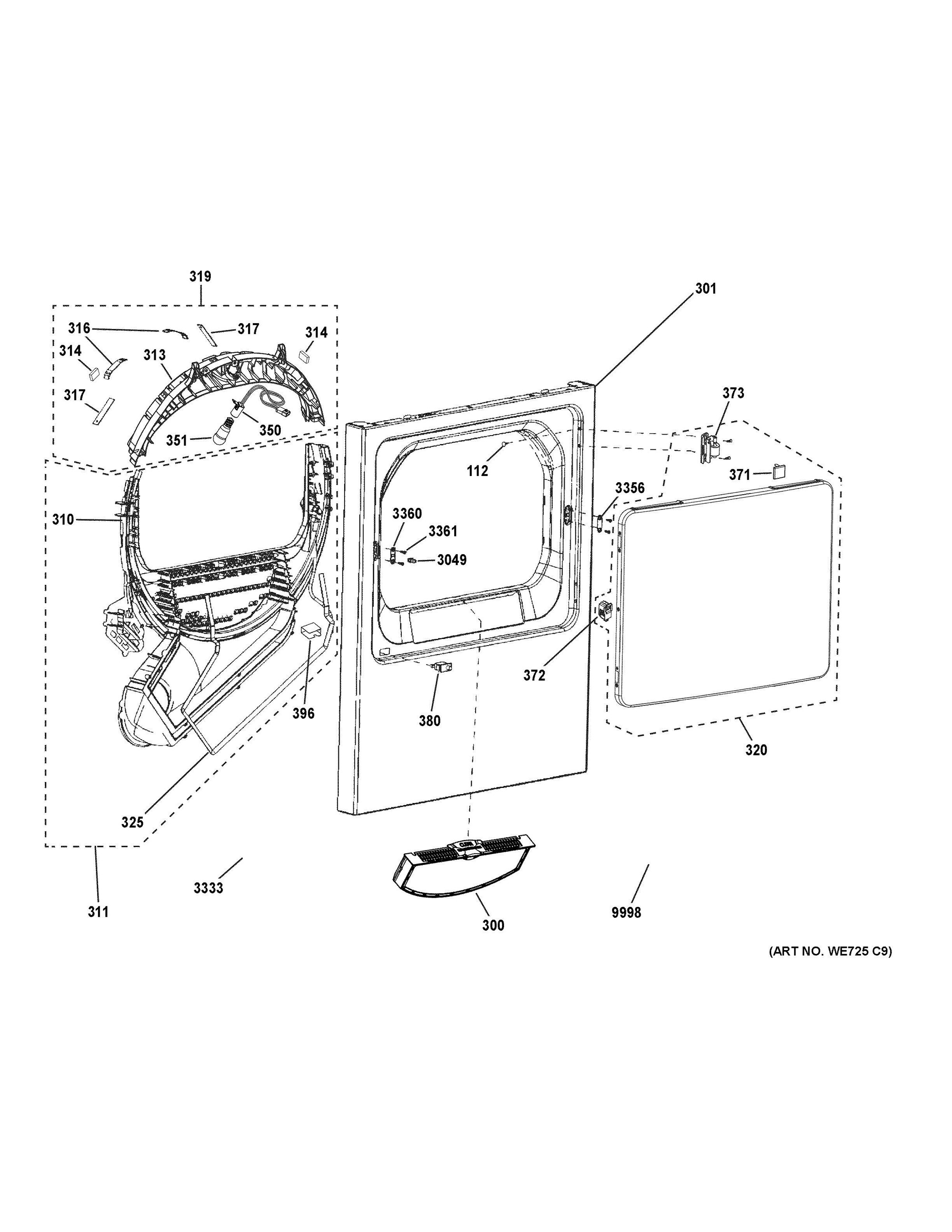

The image and part list below are associated with the component: FRONT PANEL DOOR:
For Support or Ordering By Phone,
Call (800) 816-0715 Mon–Fri 8 am to 9 pm, Sat 8 am to 3 pm EST
| Description | Part# | Substitution# | Diagram Reference | ETA | ||
|---|---|---|---|---|---|---|
|
Plug Button WHITE | WE1M934 | 112 | 1 days | ||
|
FILTER LINT ASM | WE03X23881 | 300 | 11 days | ||
|
PANEL FRONT | WE20X25260 | 301 | 11 days | ||
|
DOOR STRIKE | WE01X30999 | 3049 | 11 days | ||
|
TRAP DUCT SLIDES | WE01X24546 | 310 | 11 days | ||
|
TRAP DUCT ASM | WE03X25275 | 311 | 11 days | ||
|
BEARING TOP SLIDES | WE03X23956 | 313 | 11 days | ||
|
FELT TOP BEARING | WE09X27635 | 314 | 11 days | ||
|
BEARING SLIDE | WE3M52 | WE03X37320 | 316 | 11 days | |
|
BEARING SLIDE | WE3M51 | WE03X37319 | 317 | 11 days | |
|
BEARING TOP ASM | WE03X25576 | 319 | 11 days | ||
|
DRYER DOOR | WE10X31003 | 320 | 11 days | ||
|
GASKET (SEAL) 39 INCH | WE1M825 | 325 | 1 days | ||
|
HARNESS HIGH LIMIT ASM | WE15X26140 | 3333 | 11 days | ||
|
STRIKE PLATE | WE1M569 | 3356 | 1 days | ||
|
STRIKE PLATE W/STRK HOLE | WE1M570 | 3360 | - |
|
|
|
SCREW | WE2M302 | 3361 | 1 days | ||
|
SOCKET ASM | WE01X26494 | 350 | 11 days | ||
|
LAMP | WE05X20431 | 351 | 11 days | ||
|
DOOR LATCH | WE01X31004 | 372 | 11 days | ||
|
DOOR HINGE | WE01X31005 | 373 | 11 days | ||
|
DOOR SWITCH | WE04X28977 | 380 | - |
|
|
|
SHIELD SWITCH | WE01X23880 | 396 | 11 days | ||
|
DRYER RACK | WE01X25160 | 9998 | 11 days |
