Model# GTS22KGNBRWW

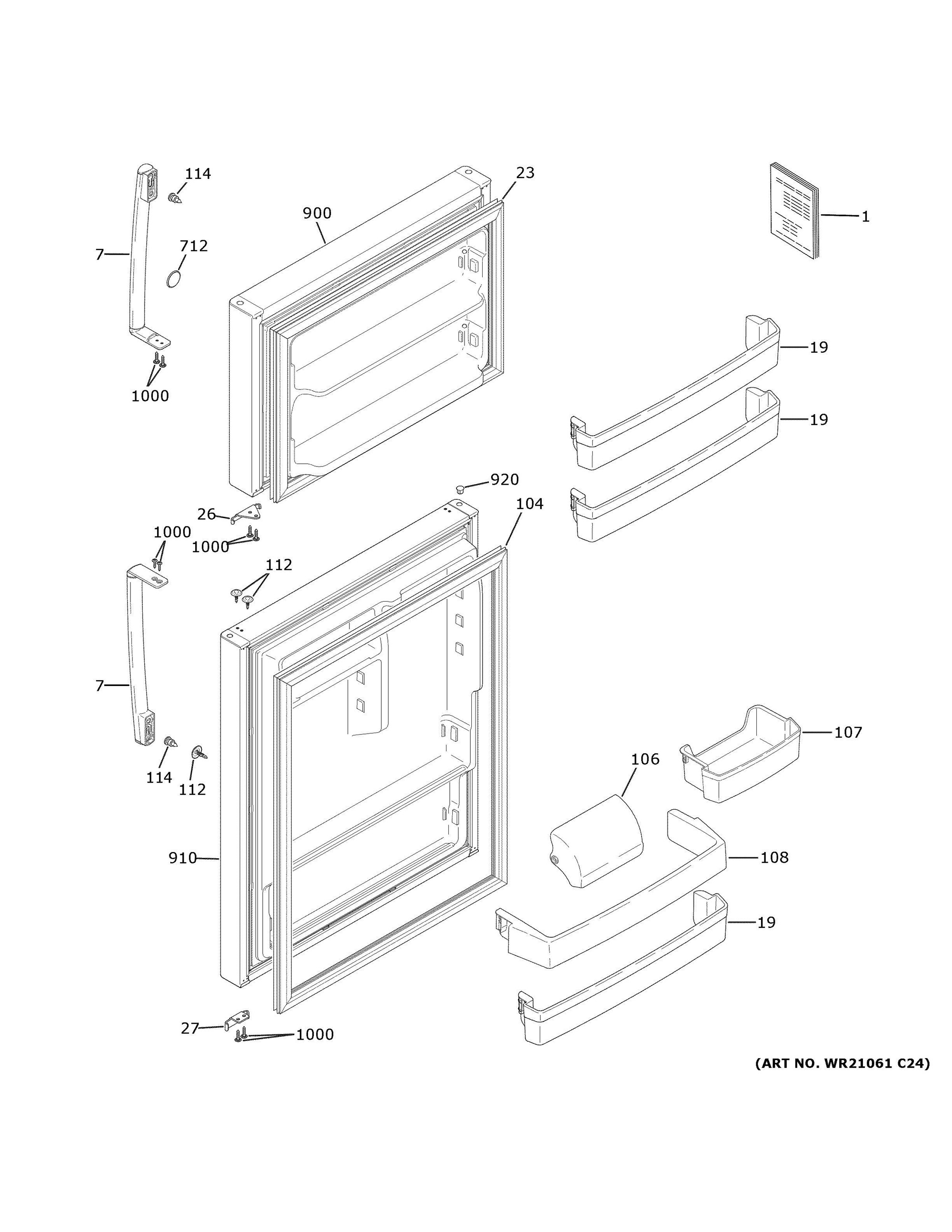

The image and part list below are associated with the component: DOORS:
For Support or Ordering By Phone,
Call (800) 816-0715 Mon–Fri 8 am to 9 pm, Sat 8 am to 3 pm EST
| Description | Part# | Substitution# | Diagram Reference | ETA | ||
|---|---|---|---|---|---|---|
|
PM MINI MANUAL AND WIRING | 31-1000431 | 1 | 11 days | ||
|
SCR 10-16 AB TRP 3/4 NBS | WR01X21151 | 1000 | 11 days | ||
|
WHITE FRESH FOOD DOOR GASKET 22 | WR14X31094 | 104 | 11 days | ||
|
DAIRY DOOR 33 | WR71X31156 | WR71X31475 | 106 | 11 days | |
|
MODULAR DOOR BIN 33 | WR71X31177 | WR71X31477 | 107 | 11 days | |
|
FRESH FOOD DOOR SHELF 22 | WR71X31175 | WR71X42245 | 108 | 11 days | |
|
PLUG DOOR RVSBL | WR01X21159 | 112 | 11 days | ||
|
FASTENER DOOR HANDLE | WR01X21158 | 114 | 11 days | ||
|
CAN SHELF 22 | WR71X31210 | WR71X42246 | 19 | 11 days | |
|
WHITE FREEZER DOOR GASKET 22 | WR14X31089 | WR14X43328 | 23 | 11 days | |
|
FREEZER DOOR STOP WHITE | WR02X28287 | 26 | 11 days | ||
|
REFRIGERATOR DOOR STOP WHITE | WR02X28283 | 27 | 11 days | ||
|
WHITE HANDLE | WR12X31132 | WR12X48505 | 7 | 11 days | |
|
CHROME GE BADGE | WR02X31306 | WR02X35066 | 712 | 11 days | |
|
SMOOTH WHITE FREEZER DOOR 22 | WR78X31178 | WR78X31405 | 900 | 11 days | |
|
SMOOTH WHITE FRESH FOOD DOOR 22 | WR78X31222 | WR78X31361 | 910 | 11 days | |
|
PLUG BTN WHT | WR2X8233 | 920 | 3 days |
