Model# GTS16DTHMRWW

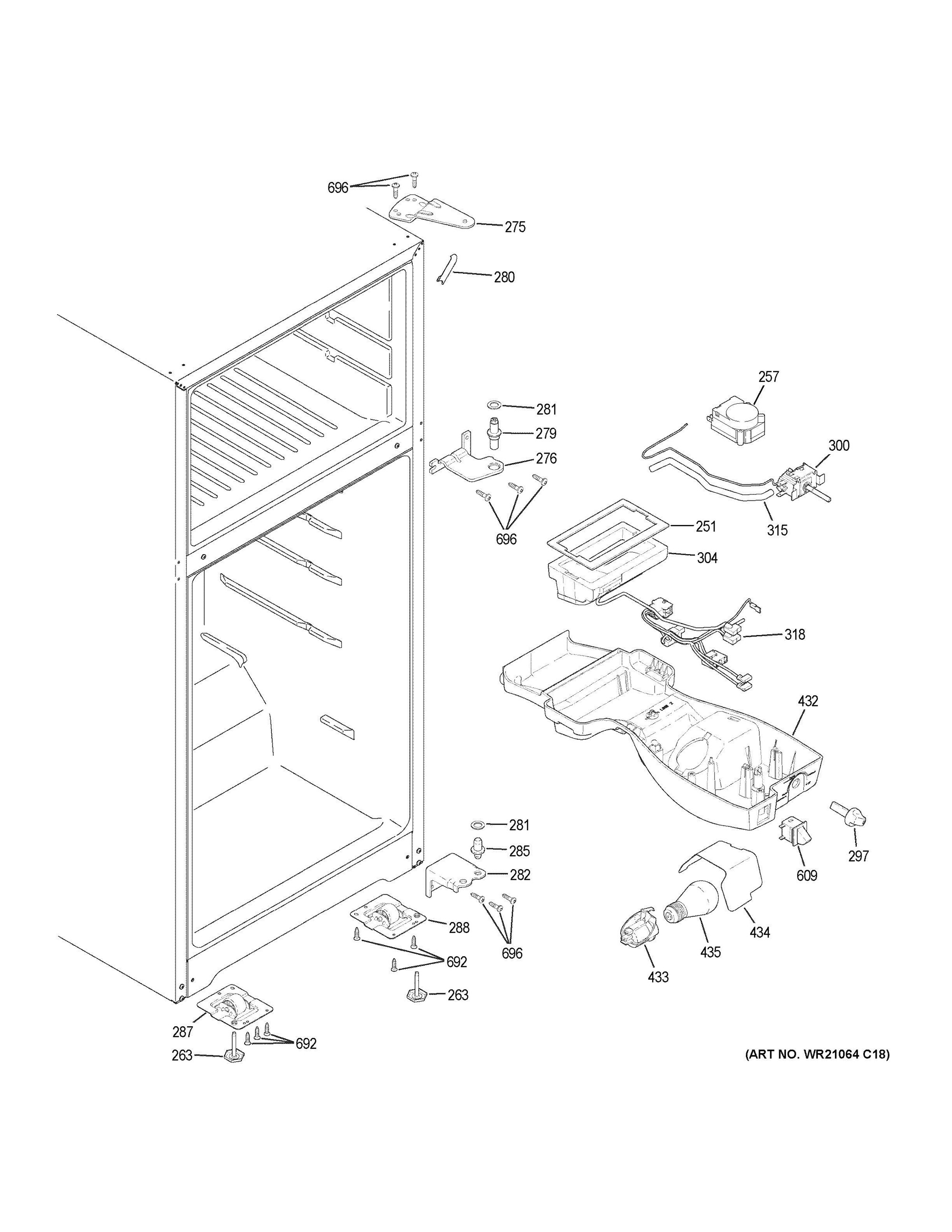

The image and part list below are associated with the component: FRESH FOOD SECTION:
For Support or Ordering By Phone,
Call (800) 816-0715 Mon–Fri 8 am to 9 pm, Sat 8 am to 3 pm EST
| Description | Part# | Substitution# | Diagram Reference | ETA | ||
|---|---|---|---|---|---|---|
|
GASKET SUPPLY FOAM | WR02X23409 | WR02X39772 | 251 | 11 days | |
|
CONTROL DEFROST | WR09X10049 | WR9X502 | 257 | 3 days | |
|
SLIDER ADJ | WR2X7877 | 263 | 3 days | ||
|
WHITE HINGE TOP AND PIN ASM | WR13X21172 | WR13X27091 | 275 | 11 days | |
|
HINGE CENTER | WR13X21174 | 276 | 11 days | ||
|
PIN HINGE CTR | WR02X21173 | 279 | 11 days | ||
|
CAP CORNER OC WHITE | WR02X10703 | 280 | 3 days | ||
|
WASHER HINGE BROWN | WR01X10146 | WR01X27364 | 281 | 11 days | |
|
HINGE BOTTOM | WR13X21175 | 282 | 11 days | ||
|
PIN HINGE BOTTOM | WR02X27092 | 285 | 11 days | ||
|
MOBILITY ASM FRONT LH | WR02X21258 | WR02X31386 | 287 | 11 days | |
|
MOBILITY ASM FRONT RH | WR02X21259 | WR02X31376 | 288 | 11 days | |
|
KNOB CONTROL | WR02X21250 | 297 | 11 days | ||
|
CONTROL TEMP | WR09X26872 | 300 | 11 days | ||
|
NOZZLE SUPPLY FOAM | WR02X21253 | 304 | 11 days | ||
|
SLEEVE VINYL | WR02X8344 | WR2X8344 | 315 | 3 days | |
|
HARNESS MECH CNTRL | WR55X21257 | 318 | 11 days | ||
|
HOUSING CONTROL EM | WR02X21256 | WR02X30172 | 432 | 11 days | |
|
SOCKET & TERMINAL ASM | WR02X9391 | 433 | 11 days | ||
|
SHIELD REFLECTOR | WR02X26086 | 434 | 11 days | ||
|
40WATT 15AMP | 40A15 | 435 | 11 days | ||
|
SWITCH LIGHT | WR23X23343 | WR23X31507 | 609 | 11 days | |
|
SCR 8-32 CA HXW 1/2 NS | WR01X23006 | 692 | 11 days | ||
|
SCR 12-24 TT PNPSD .785 | WR01X26527 | 696 | 11 days |
