Model# GSH22JSCCSS

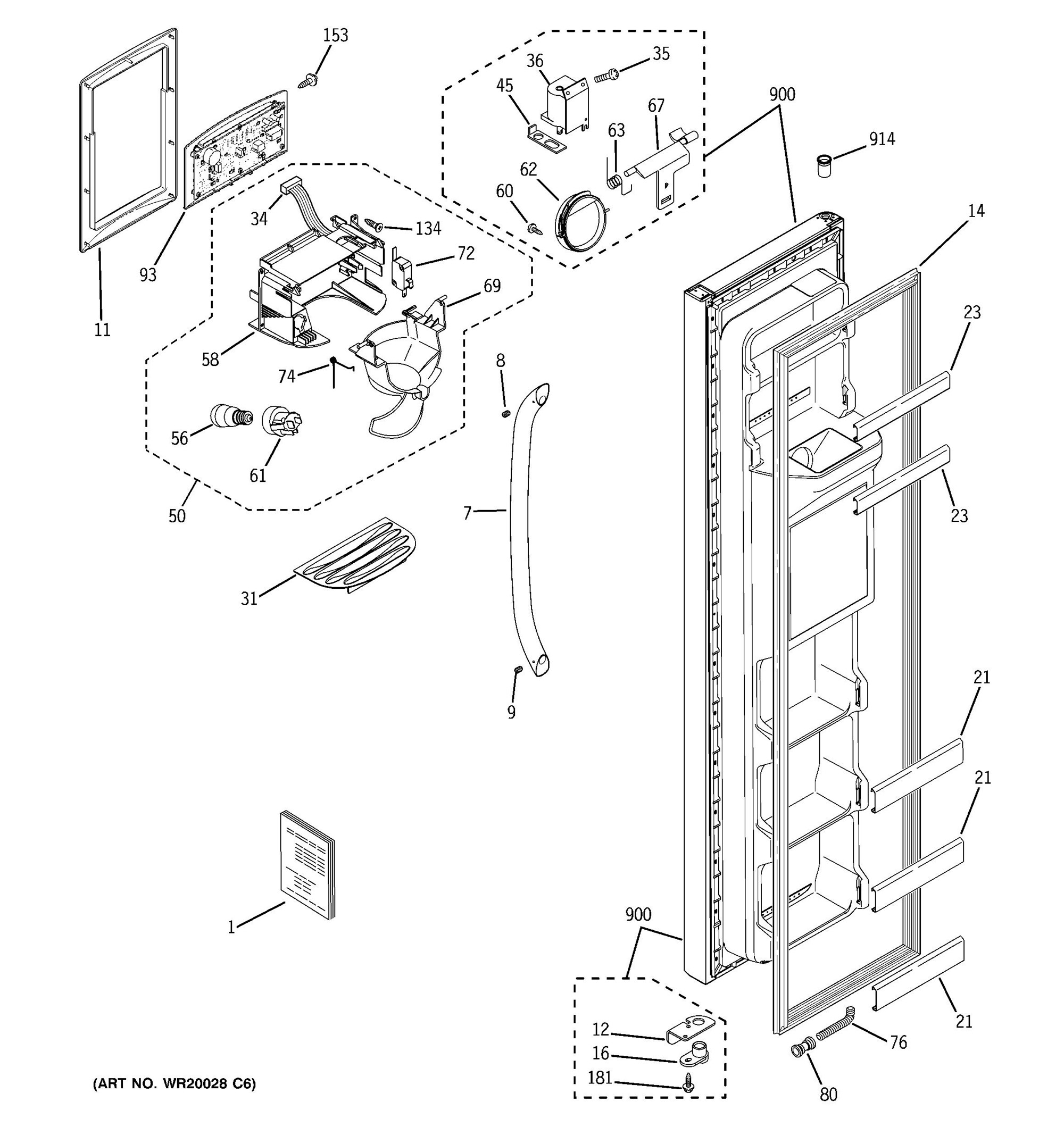

The image and part list below are associated with the component: FREEZER DOOR:
For Support or Ordering By Phone,
Call (800) 816-0715 Mon–Fri 8 am to 9 pm, Sat 8 am to 3 pm EST
| Description | Part# | Substitution# | Diagram Reference | ETA | ||
|---|---|---|---|---|---|---|
|
PM MINI MANUAL WIRING | 31-51790 | 1 | 11 days | ||
|
PM GUIDE OWNERS | 49-60514 | 1 | 11 days | ||
|
TRIM RECESS | WR38X10348 | WR38X23216 | 11 | 11 days | |
|
PLATE DOOR STOP FZ | WR02X11466 | 12 | 5 days | ||
|
SCR 6-10 PL FLP 1/2 S | WR01X10616 | 134 | 5 days | ||
|
GASKET DOOR FZ | WR24X10135 | WR24X23195 | 14 | 11 days | |
|
SCR 6-20 B FHP 3/8 S | WR01X10597 | WR1X1505D | 153 | 5 days | |
|
CAM & THIMBLE FZ | WR02X11478 | 16 | 5 days | ||
|
SCR 10-32 F HXW 3/4 S | WR01X10655 | 181 | 5 days | ||
|
FRONT DOOR SHELF FZ | WR17X12069 | 21 | 5 days | ||
|
FRONT DOOR SHELF FZ | WR17X12075 | 23 | 5 days | ||
|
GRILL RECESS BK | WR17X10745 | 31 | 5 days | ||
|
HARNESS RECESS DISP | WR23X10525 | 34 | 5 days | ||
|
SCR 8-10 PL PNP 1/2 S | WR01X10649 | 35 | 5 days | ||
|
SOLENOID ASM | WR62X10055 | 36 | 5 days | ||
|
RETAINER RECESS DOOR | WR02X8818 | WR2X8818 | 45 | 5 days | |
|
HOUSING RECESS ASM DISP | WR49X10133 | WR49X10291 | 50 | 11 days | |
|
LIGHT DISPENSER | WR02X12208 | WR01X37886 | 56 | 11 days | |
|
HOUSING SHIELD DISP | WR17X12152 | WR17X11170 | 58 | 5 days | |
|
SCR 4-10 PL PNP 5/16 S5H | WR01X10656 | 60 | 5 days | ||
|
LAMP SOCKET | WR02X9561 | WR2X9561 | 61 | 5 days | |
|
DOOR RECESS ASM | WR17X11653 | 62 | 5 days | ||
|
SPRING RECESS DOOR | WR02X10585 | 63 | 5 days | ||
|
CRANK DOOR RECESS | WR17X10706 | 67 | 5 days | ||
|
FUNNEL ICE DISP BK | WR17X11267 | 69 | 5 days | ||
|
TUBULAR HANDLE ASM | WR12X10987 | 7 | 5 days | ||
|
SWITCH | WR23X10224 | WR23X10783 | 72 | 5 days | |
|
SPRING FUNNEL | WR02X10584 | WR49X10233 | 74 | 5 days | |
|
SLEEVE WATER LINE | WR02X8933 | WR2X8933 | 76 | 5 days | |
|
SET SCREW | WR02X11754 | 8 | 5 days | ||
|
SCR 8-18 GX IHXW 7/16 S | WR01X10758 | 8 | 11 days | ||
|
UNION CONNECTOR | WR02X11330 | 80 | 5 days | ||
|
FASTENER HANDLE | WR01X10838 | 9 | 5 days | ||
|
DOOR ASM FOAM FZ | WR78X12838 | WR78X11098 | 900 | 5 days | |
|
THIMBLE DOOR TOP | WR01X10200 | 914 | 5 days | ||
|
COMBINED HMI ASM | WR55X11086 | WR55X23236 | 93 | 11 days |
