Model# GSD4930Z04WW

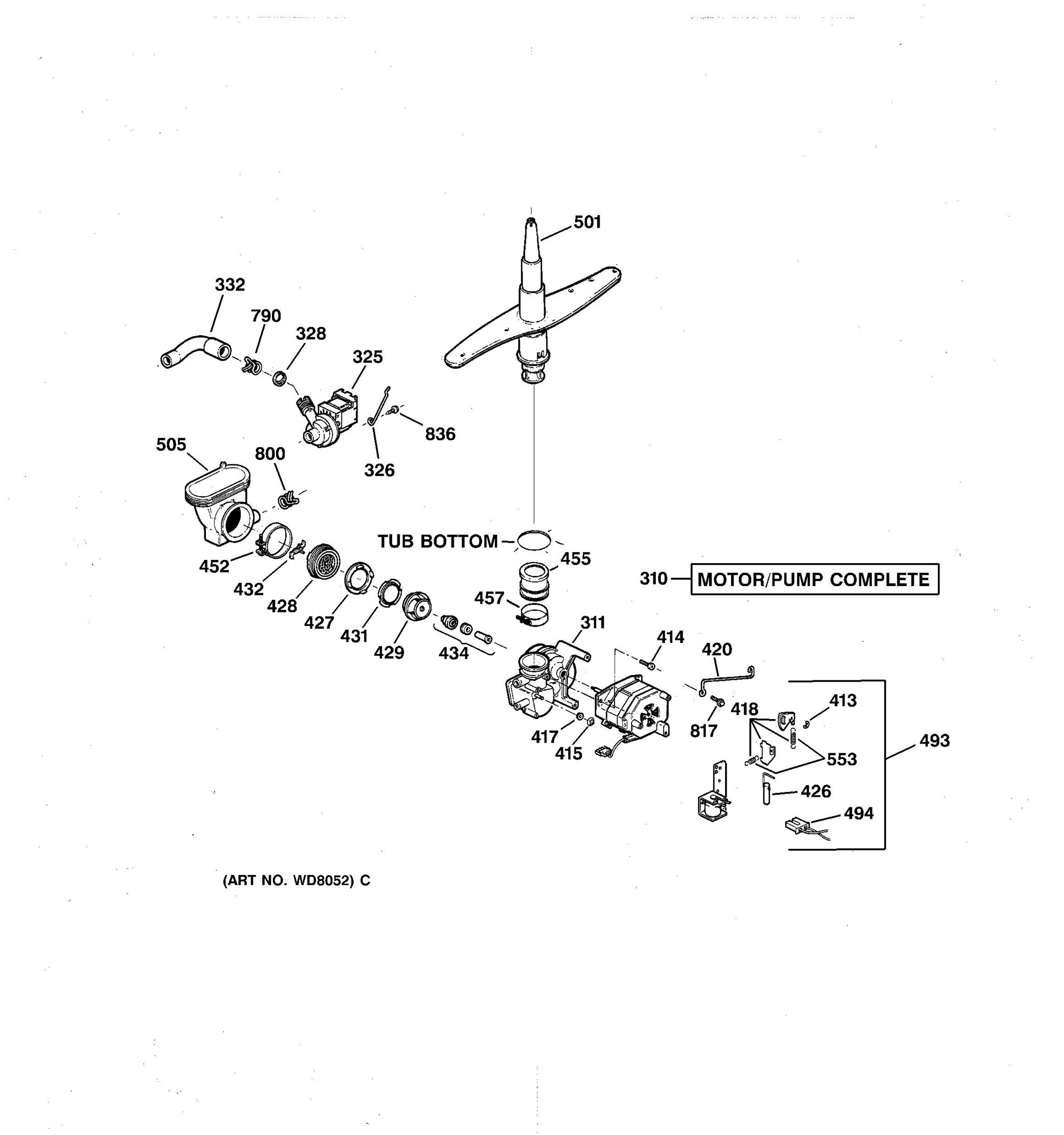

The image and part list below are associated with the component: MOTOR-PUMP MECHANISM:
For Support or Ordering By Phone,
Call (800) 816-0715 Mon–Fri 8 am to 9 pm, Sat 8 am to 3 pm EST
| Description | Part# | Substitution# | Diagram Reference | ETA | ||
|---|---|---|---|---|---|---|
|
MECHANISM S/S ASM | WD26X10004 | WD26X10013 | 310 | 2 days | |
|
HOUSING PUMP ASM | WD19X10013 | 311 | 2 days | ||
|
PUMP | WD19X10015 | 325 | 2 days | ||
|
HANGER DUAL PUMP | WD01X10024 | 326 | 11 days | ||
|
VALVE FLAPPER | WD01X10178 | WD01X10175 | 328 | 2 days | |
|
HOSE DUAL PUMP | WD24X10006 | 332 | 2 days | ||
|
PS RETAINER | WD03X0487 | WD3X487D | 413 | 2 days | |
|
SCREW | WD02X0444 | WD2X444 | 414 | 2 days | |
|
NUT PUSH ON | WD02X0429 | WR2X7054 | 415 | 2 days | |
|
GATE SHAFT SEAL | WD08X0181 | WD8X181 | 417 | - |
|
|
GATE VALVE ARM KIT | WD35X0192 | WD35X192 | 418 | 2 days | |
|
HANGER MECH | WD01X1482 | WD1X1482 | 420 | 2 days | |
|
ARMATURE LINK ASSEMBLY | WD01X1316 | WD1X1316 | 426 | 2 days | |
|
WEAR RING BASE | WD12X0354 | WD19X10032 | 427 | 5 days | |
|
NUT GRATER | WD12X10018 | 428 | 2 days | ||
|
|
IMPELLER ASM | WD19X10014 | WD19X10032 | 429 | 5 days | |
|
|
WEAR RING | WD01X1341 | WD19X10032 | 431 | 5 days | |
|
BLADE AND SHAFT | WD01X10018 | 432 | 2 days | ||
|
|
PUMP SEAL ASM | WD19X10002 | WD19X10032 | 434 | 5 days | |
|
CLAMP HOSE | WD01X1392 | WD1X1392 | 452 | 2 days | |
|
CONNECTOR PUMP ASM | WD18X0214 | WD18X214 | 455 | 2 days | |
|
CLAMP (PUMP CONNECTOR) | WD01X1376 | WD1X1376 | 457 | 2 days | |
|
SOLENOID & BRKT ASM | WD21X10060 | 493 | 2 days | ||
|
SPRAY ARM ASM | WD22X10007 | WD22X10008 | 501 | 2 days | |
|
SUMP INLET | WD18X0215 | WD18X215 | 505 | 2 days | |
|
SPRING GATE ACT | WD03X0721 | WD3X721 | 553 | 2 days | |
|
CLAMP HOSE | WH01X2036 | WH1X2036 | 790 | 2 days | |
|
CLAMP DUAL SUPPORT | WD01X1497 | WD1X1497 | 800 | 11 days | |
|
SCR 8-32 PNT 1/2 S | WD01X0550 | 817 | 11 days | ||
|
SCR 10-32 T HEX .7 S | WD02X0445 | WD02X10141 | 817 | 2 days | |
|
SCR 8-18 AB IHWP 7/8 S | WH02X10002 | 836 | 2 days |
