Model# GPV10FSNBSB

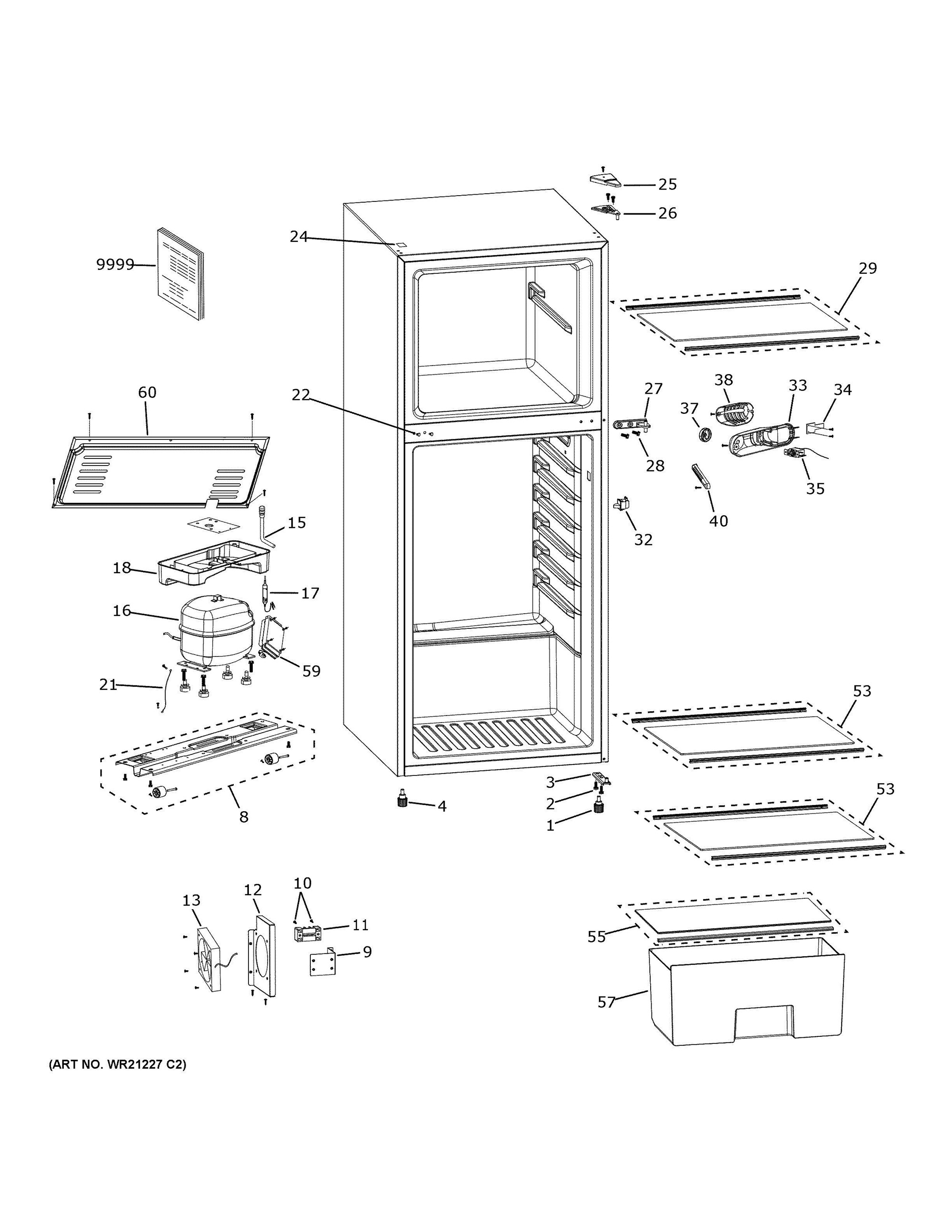

The image and part list below are associated with the component: CABINET:
For Support or Ordering By Phone,
Call (800) 816-0715 Mon–Fri 8 am to 9 pm, Sat 8 am to 3 pm EST
| Description | Part# | Substitution# | Diagram Reference | ETA | ||
|---|---|---|---|---|---|---|
|
TERMINAL BLOCK | WR55X32535 | 11 | 11 days | ||
|
FAN SUPPORT | WR02X32734 | 12 | 11 days | ||
|
DC FAN | WR60X32537 | 13 | 11 days | ||
|
COMPRESSOR | WR87X32538 | 16 | 11 days | ||
|
DRIER | WR86X93 | WR86X25269 | 17 | - |
|
|
DRIP TRAY | WR14X32539 | 18 | 11 days | ||
|
GROUNDING WIRE | WR23X10615 | 21 | 11 days | ||
|
SCREW PLUG | WR01X32540 | 22 | 11 days | ||
|
TOP HINGE | WR13X32541 | 26 | 11 days | ||
|
MIDDLE HINGE | WR13X32542 | 27 | 11 days | ||
|
FREEZER GLASS SHELF | WR71X32543 | 29 | 11 days | ||
|
LED LAMP | WR55X32544 | 34 | 11 days | ||
|
THERMOSTAT | WR09X32545 | 35 | 11 days | ||
|
THERMOSTAT PROBE COVER | WR02X32546 | 40 | 11 days | ||
|
REFRIGERATOR GLASS SHELF | WR71X32551 | 53 | 11 days | ||
|
CRISPER COVER | WR71X32552 | 55 | 11 days | ||
|
CRISPER DRAWER | WR71X32553 | 57 | 11 days | ||
|
CONTROL BOARD | WR87X32735 | 59 | 11 days | ||
|
MACHINE COVER | WR13X32718 | 60 | 11 days | ||
|
COMPRESSOR BASE | WR17X32533 | 8 | 11 days | ||
|
TERMINAL BLOCK MOUNTING PLATE | WR02X32534 | 9 | 11 days | ||
|
PM MINI MANUAL AND WIRING | 31-1000420 | 9999 | 11 days |
