Model# GLTR1670AS0

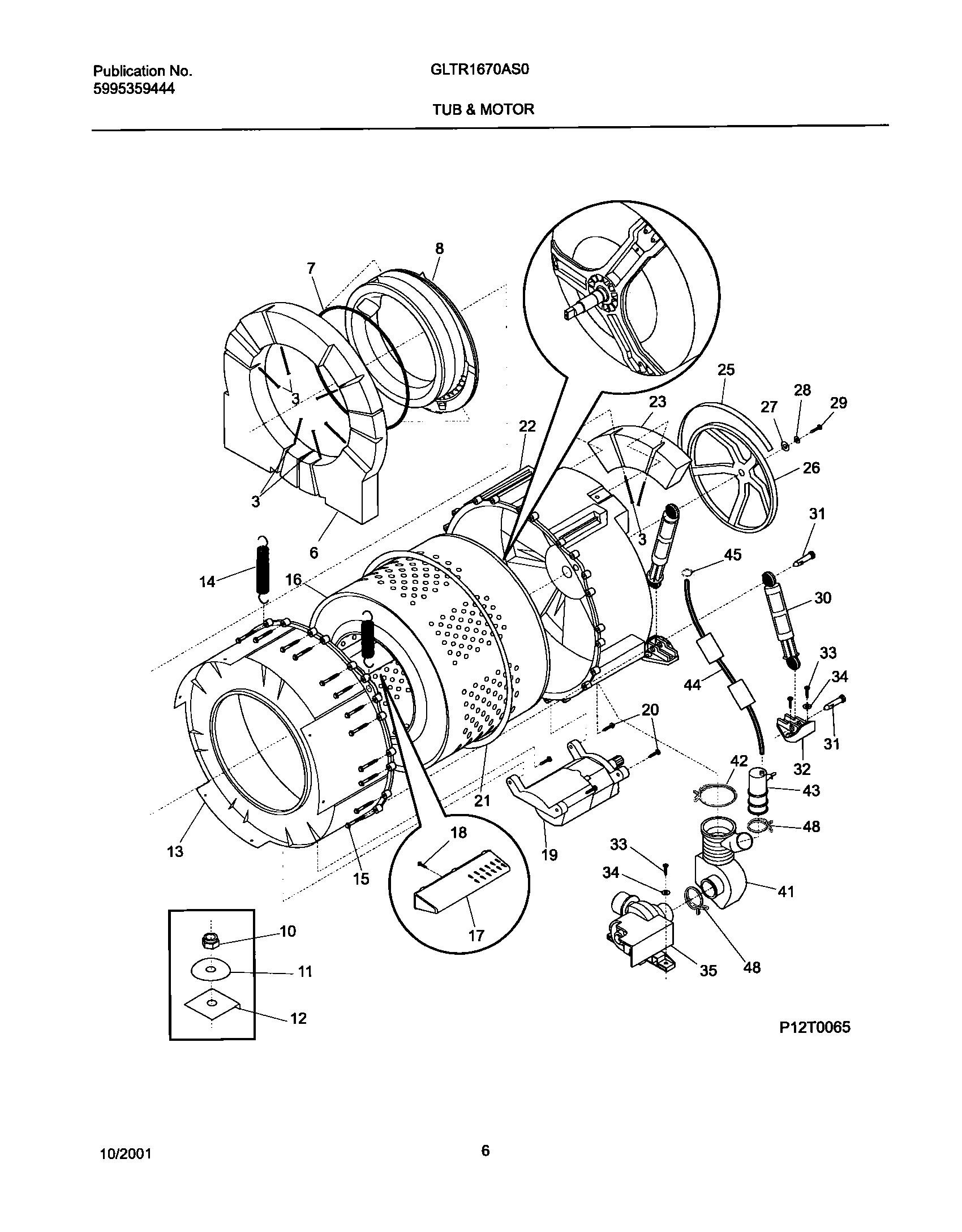

The image and part list below are associated with the component: 07 - WSHR TUB,MOTOR:
For Support or Ordering By Phone,
Call (800) 816-0715 Mon–Fri 8 am to 9 pm, Sat 8 am to 3 pm EST
| Description | Part# | Substitution# | Diagram Reference | ETA | ||
|---|---|---|---|---|---|---|
|
NUT | 131304700 | 137086500 | 10 | 5 days | |
|
WASHER-SPRING | 131276900 | 11 | 5 days | ||
|
PLATE-WEIGHT | 131793500 | 12 | 5 days | ||
|
SHELL-FRONT TUB | 131618600 | 13 | 5 days | ||
|
SPRING/SLEEVE | 131663600 | 134144700 | 14 | 5 days | |
|
SCREW,HXWHD A ,1/4-10X2.165 | 131303900 | 15 | 5 days | ||
|
TUB-SPIN | 131618500 | 16 | 5 days | ||
|
VANE | 131274600 | 17 | 5 days | ||
|
Screw-vane,quad ph ab `10-16x.375 | 131302800 | 18 | 5 days | ||
|
MOTOR-SOLE | 131770600 | 134869400 | 19 | 5 days | |
|
SCREW-MOTOR,HWHD AB ,12-14X1.50 | 131303500 | 20 | 5 days | ||
|
SEAL-SHELL | 131275900 | 134146100 | 21 | 5 days | |
|
SHELL-REAR/BEARING | 131462800 | 131525500 | 22 | 5 days | |
|
WEIGHT-UPPER BACK | 131709300 | 134125900 | 23 | 5 days | |
|
Belt-6 rib | 134051000 | 25 | 5 days | ||
|
PULLEY-DRUM-REINFORCED | 131883400 | 26 | 5 days | ||
|
Washer .41x1.500x.120 | 131304400 | 27 | 5 days | ||
|
WASHER-LOCK,3/8 | 131304500 | 28 | 5 days | ||
|
SCREW-PULLEY,M10X.92 | 131303700 | 29 | 5 days | ||
|
Bolt-carriage 1/4-20X4.0 | 131793302 | 3 | 5 days | ||
|
LEVEL-SHOCK | 131268200 | 5304485917 | 30 | 5 days | |
|
PIN-LEVEL | 131268300 | 31 | 5 days | ||
|
BRACKET-SHOCK | 131268100 | 32 | 5 days | ||
|
SCREW,HWHD AB ,10-16X.625 | 131303100 | 131202300 | 33 | 5 days | |
|
Washer .21X.71X.06`.21x.71x.06 | 131304300 | 5303304015 | 34 | 5 days | |
|
PUMP-DRAIN H AXIS WSHR 40MM | 131889800 | 137108000 | 35 | 3 days | |
|
HOSE-COIN TRAP-TUB TO PUMP | 131784700 | 41 | 5 days | ||
|
CLAMP | 131333101 | 134737300 | 42 | 5 days | |
|
CHAMBER-AIR | 131277500 | 43 | 5 days | ||
|
TUBE-PRESSURE | 131277600 | 131789900 | 44 | 5 days | |
|
CLAMP | 131306202 | 45 | 5 days | ||
|
CLAMP-PUMP | 131306234 | 5304536802 | 48 | 11 days | |
|
One piece counterweight | 131975300 | 6 | 5 days | ||
|
SPRING-BOOT | 131277300 | 7 | 5 days | ||
|
BELLOWS | 131277100 | 5303937187 | 8 | 5 days | |
|
SLEEVE-LOWER SPRING,TUB | 131560000 | NI | 5 days | ||
|
SLEEVE-UPPER SPRING,TUB | 131592200 | NI | 5 days |
