Model# GFW450SSM1WW

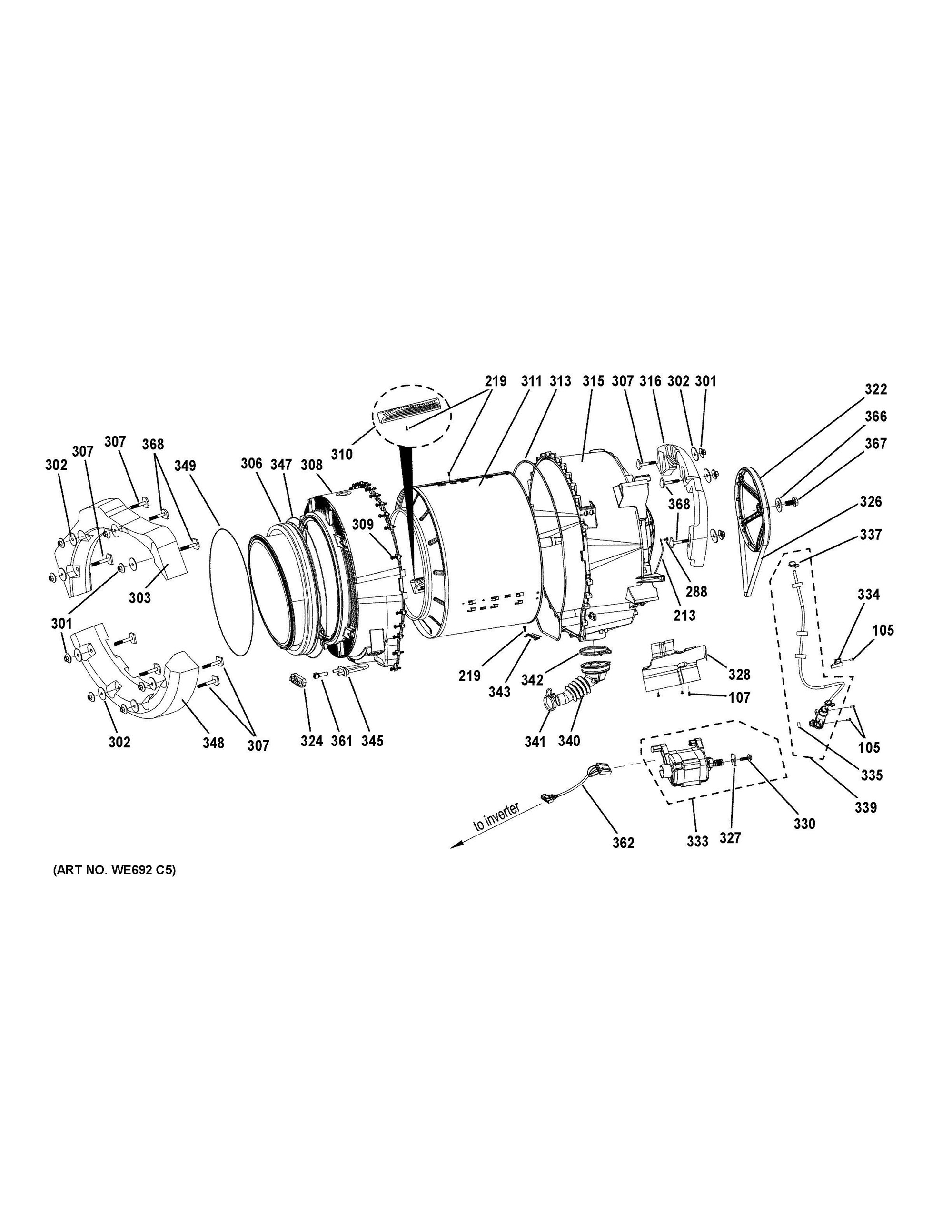

The image and part list below are associated with the component: TUB MOTOR:
For Support or Ordering By Phone,
Call (800) 816-0715 Mon–Fri 8 am to 9 pm, Sat 8 am to 3 pm EST
| Description | Part# | Substitution# | Diagram Reference | ETA | ||
|---|---|---|---|---|---|---|
|
SCREW_ST3.5 X 11 | WH02X10181 | 105 | 2 days | ||
|
SCREW_ST4*13 | WH02X10183 | 107 | 2 days | ||
|
WIRE HARNESS | WH19X27943 | 213 | 11 days | ||
|
SCREW_ST4*13 | WH02X10189 | 219 | 2 days | ||
|
SCREW M5*12 | WH02X10234 | 288 | 2 days | ||
|
NUT_M8 | WH02X10204 | 301 | 2 days | ||
|
WASHER | WH02X10205 | 302 | 2 days | ||
|
COUNTERWEIGHT - FRNT | WH01X22895 | 303 | 11 days | ||
|
GASKET | WH08X23479 | 306 | 11 days | ||
|
BOLT M8*48 | WH02X10207 | 307 | 2 days | ||
|
TUB FRONT | WH45X20907 | WH45X22894 | 308 | 11 days | |
|
SCREW_ST6*35 | WH02X10208 | 309 | 2 days | ||
|
BAFFLE | WH16X10128 | 310 | 2 days | ||
|
BASKET ASM 5.1 CU FT | WH45X23480 | 311 | 11 days | ||
|
TUB SEAL | WH08X10054 | 313 | 2 days | ||
|
REAR TUB ASM | WH45X10096 | WH45X22914 | 315 | 11 days | |
|
COUNTERWEIGHT-REAR | WH01X22897 | 316 | 11 days | ||
|
DRIVE PULLEY KIT | WH07X10022 | 322 | 2 days | ||
|
COVER - TUB HEATER | WH44X10264 | 324 | 11 days | ||
|
DRIVING BELT | WH08X10050 | 326 | - |
|
|
|
MOTOR_WASHER | WH02X10212 | 327 | 2 days | ||
|
MOTOR SHIELD | WH16X10131 | 328 | 11 days | ||
|
FLANGE_BOLT_M8*35 | WH02X10213 | 330 | 2 days | ||
|
DRIVE MOTOR ASM | WH20X27942 | 333 | 11 days | ||
|
SUPPORT- PRESSURE HOSE | WH01X10396 | 334 | 11 days | ||
|
AIR CHAMBER RING | WH01X10397 | 335 | 11 days | ||
|
PRESSURE_HOSE_CLAMP | WH01X10273 | 337 | 2 days | ||
|
AIR CHAMBER ASM | WH41X20908 | 339 | 11 days | ||
|
DRAIN HOSE | WH41X10250 | 340 | 2 days | ||
|
PUMP_CLAMP | WH01X10275 | 341 | 2 days | ||
|
TUB DRAIN HOSE CLAMP | WH01X10276 | 342 | 2 days | ||
|
HEATER SUPPORT | WH16X10081 | 343 | 11 days | ||
|
HEATER | WH12X10309 | 345 | 2 days | ||
|
GASKET INSIDE CLAMP | WH08X10055 | 347 | 2 days | ||
|
COUNTERWEIGHT-FRNT/BTM | WH01X22896 | 348 | 11 days | ||
|
GASKET OUTSIDE CLAMP | WH08X10056 | 349 | 2 days | ||
|
HEATER THERMISTOR | WH12X10310 | WH12X10351 | 361 | 2 days | |
|
HARNESS - MOTOR | WH19X10070 | 362 | 11 days | ||
|
WASHER 34X12.5X3.5 MM | WH02X10337 | 366 | - |
|
|
|
FLANGE BOLT M12*25 | WH02X10334 | 367 | 2 days | ||
|
BOLT M8*38 - FRNT CNTRWG | WH02X10333 | 368 | 11 days |
