Model# GFSF6KKYCBB

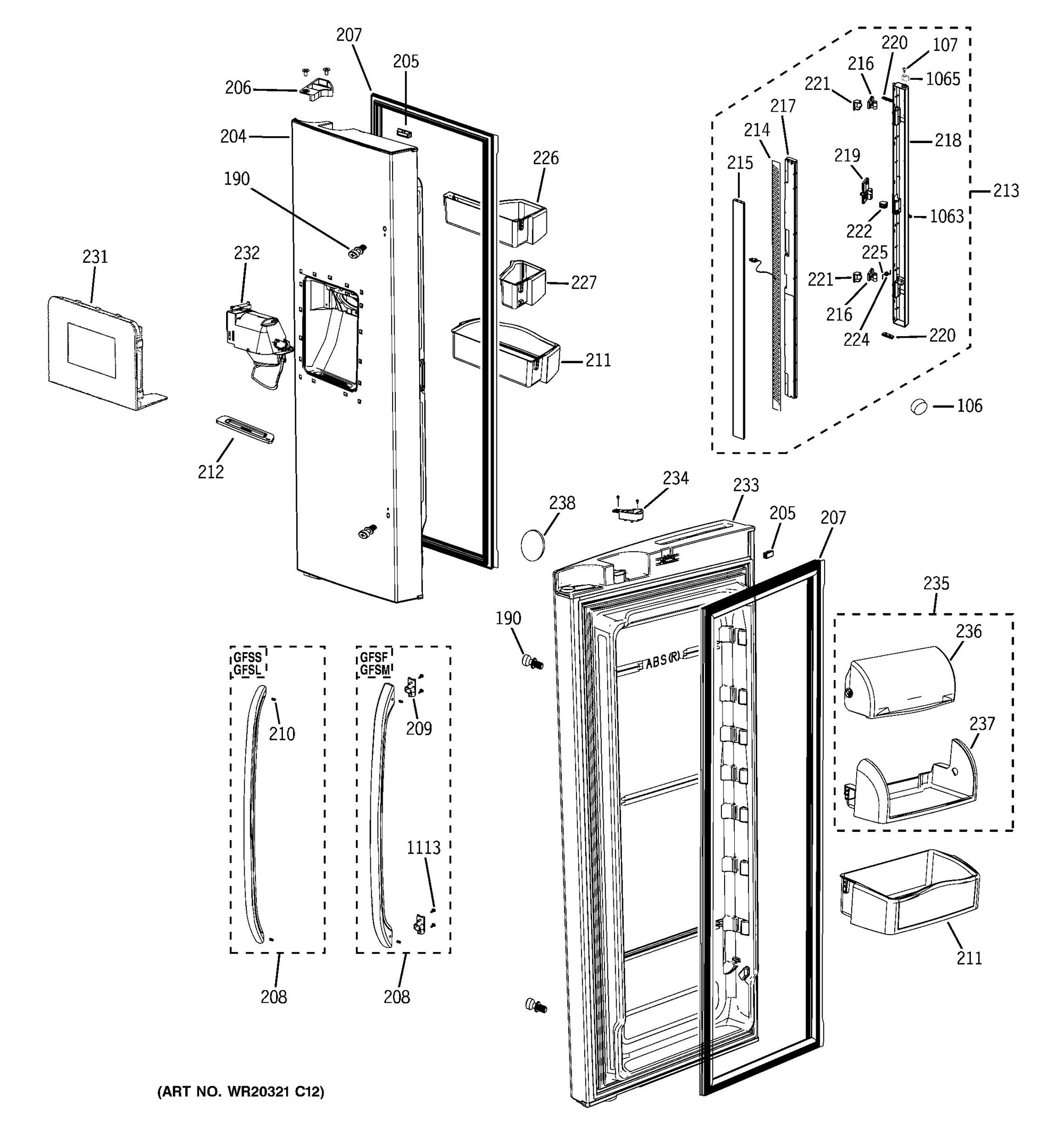

The image and part list below are associated with the component: FRESH FOODD DOORS:
For Support or Ordering By Phone,
Call (800) 816-0715 Mon–Fri 8 am to 9 pm, Sat 8 am to 3 pm EST
| Description | Part# | Substitution# | Diagram Reference | ETA | ||
|---|---|---|---|---|---|---|
|
CAP-SCREW | WR02X13277 | WR02X12647 | 106 | 1 days | |
|
SCREW-TAPPING | WR01X10463 | 1063 | 1 days | ||
|
CAP-GUIDE FRENCH UPP | WR02X13279 | 1065 | 1 days | ||
|
SCREW TAPPING | WR01X10772 | 107 | 1 days | ||
|
SCREW TAPPING | WR01X10839 | 1113 | 1 days | ||
|
FIXER HANDLE | WR02X12621 | 190 | 1 days | ||
|
ASM DOOR FOAM REF-L | WR78X12529 | 204 | 1 days | ||
|
ASM DOOR FOAM REF-L | WR78X12538 | 204 | 11 days | ||
|
ASM DOOR FOAM REF-L | WR78X12539 | 204 | 1 days | ||
|
ASM DOOR FOAM REF-L | WR78X12544 | 204 | 1 days | ||
|
MAGNET ASS'Y | WR17X12385 | 205 | 11 days | ||
|
MAGNET ASS'Y | WR17X12404 | 205 | 1 days | ||
|
MAGNET ASS'Y | WR17X12405 | 205 | 11 days | ||
|
CAM AUTO CLOSE L | WR02X13272 | WR02X12666 | 206 | 1 days | |
|
CAM AUTO CLOSE L | WR02X13295 | WR02X12639 | 206 | 11 days | |
|
CAM AUTO CLOSE L | WR02X13300 | WR02X12671 | 206 | 11 days | |
|
ASM-GASKET DOOR REF | WR24X10241 | WR24X10201 | 207 | 1 days | |
|
ASM-GASKET DOOR REF | WR24X10243 | WR24X10200 | 207 | 1 days | |
|
ASM-GASKET DOOR REF | WR24X10245 | WR87X10169 | 207 | 1 days | |
|
ASM HANDLE REF | WR12X10912 | 208 | 11 days | ||
|
ASM HANDLE-REF | WR12X10914 | 208 | 11 days | ||
|
ASM HANDLE-REF | WR12X10916 | 208 | 1 days | ||
|
BRACKET HANDLE REF(BMC) | WR02X12813 | 209 | 1 days | ||
|
SCREW SET | WR01X10774 | 210 | 1 days | ||
|
ASM GUARD REF | WR02X13291 | WR21X10178 | 211 | 1 days | |
|
TRAY-DISPENSER | WR13X10799 | WR13X10545 | 212 | 1 days | |
|
TRAY-DISPENSER | WR13X10820 | WR13X10524 | 212 | 1 days | |
|
TRAY-DISPENSER | WR13X10825 | WR13X10554 | 212 | 1 days | |
|
TRAY-DISPENSER | WR31X10066 | 212 | 1 days | ||
|
ASM-FRENCH | WR02X13292 | 213 | 1 days | ||
|
ASM-FRENCH | WR02X13298 | 213 | 1 days | ||
|
ASM-FRENCH | WR02X13302 | 213 | 1 days | ||
|
HEATER CORD-FRENCH | WR55X10986 | 214 | 1 days | ||
|
PLATE-FRENCH | WR13X10788 | WR13X10543 | 215 | 11 days | |
|
PLATE-FRENCH | WR13X10810 | WR13X10514 | 215 | 11 days | |
|
PLATE-FRENCH | WR13X10815 | WR13X10552 | 215 | 11 days | |
|
HINGE-FRENCH | WR13X10787 | WR13X10516 | 216 | 1 days | |
|
INSULATION-FRENCH | WR02X13262 | WR82X10114 | 217 | 1 days | |
|
CASE-FRENCH | WR82X10120 | WR02X12616 | 218 | 1 days | |
|
COVER-HEATER FRENCH | WR13X10795 | WR13X10491 | 219 | 1 days | |
|
GASKET FRENCH | WR24X10193 | 220 | 1 days | ||
|
GASKET FRENCH | WR24X10196 | 220 | 1 days | ||
|
GASKET FRENCH | WR24X10198 | 220 | 1 days | ||
|
CAP-CASE FRENCH | WR02X13275 | WR02X12643 | 221 | 1 days | |
|
CAP-CASE FRENCH MID | WR02X13278 | WR02X12645 | 222 | 1 days | |
|
PIN FRENCH SPRING | WR02X12651 | 224 | 1 days | ||
|
SPRING ETC FRENCH | WR02X12650 | 225 | 1 days | ||
|
ASM-GUARD REF DISP | WR03X10009 | WR13X10609 | 226 | 11 days | |
|
ASM-GUARD REF MID | WR03X10010 | WR13X10608 | 227 | 1 days | |
|
ASM-COVER DISPENSER | WR13X10806 | 231 | 1 days | ||
|
ASM-COVER DISPENSER | WR13X10823 | 231 | 1 days | ||
|
ASM-COVER DISPENSER | WR13X10828 | 231 | 1 days | ||
|
ASM-COVER DISPENSER | WR13X10832 | 231 | 1 days | ||
|
ASM CASE-ICE ROUTE | WR13X10807 | WR13X10737 | 232 | 1 days | |
|
ASM CASE-ICE ROUTE | WR13X10824 | WR13X10735 | 232 | 1 days | |
|
ASM CASE-ICE ROUTE | WR13X10829 | WR13X10736 | 232 | 1 days | |
|
ASM CASE-ICE ROUTE | WR13X10833 | WR13X10738 | 232 | 1 days | |
|
ASM DOOR FOAM REF R | WR78X12530 | WR78X12219 | 233 | 1 days | |
|
ASM DOOR FOAM REF R | WR78X12534 | WR78X12212 | 233 | 1 days | |
|
ASM DOOR FOAM REF R | WR78X12537 | WR78X12214 | 233 | 11 days | |
|
ASM DOOR FOAM REF R | WR78X12542 | WR78X12217 | 233 | 1 days | |
|
CAM AUTO CLOSE R | WR02X13271 | WR02X12665 | 234 | 1 days | |
|
CAM AUTO CLOSE R | WR02X13294 | WR02X12638 | 234 | 1 days | |
|
CAM AUTO CLOSE R | WR02X13299 | WR02X12670 | 234 | 11 days | |
|
ASM GUARD-DAIRY | WR02X13290 | WR22X10061 | 235 | 1 days | |
|
GUARD-DAIRY | WR02X13269 | WR22X10060 | 236 | 1 days | |
|
COVER-GUARD DAIRY | WR13X10798 | 237 | 11 days | ||
|
MASCOT | WR02X12816 | 238 | 1 days |
