Model# GFE26GSKBSS

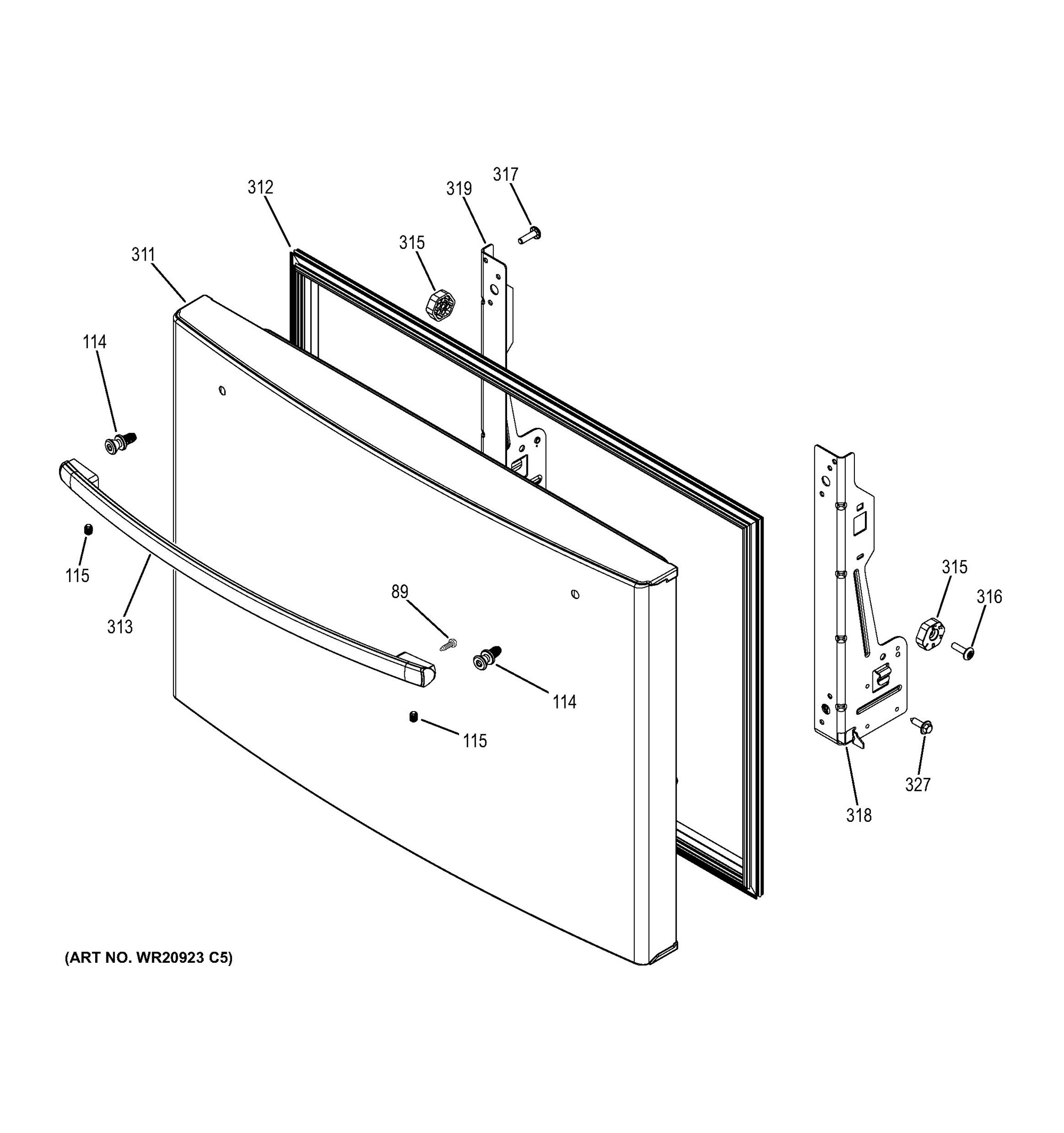

The image and part list below are associated with the component: FREEZER DOOR:
For Support or Ordering By Phone,
Call (800) 816-0715 Mon–Fri 8 am to 9 pm, Sat 8 am to 3 pm EST
| Description | Part# | Substitution# | Diagram Reference | ETA | ||
|---|---|---|---|---|---|---|
|
FASTENER DOOR HANDLE | WR01X11007 | 114 | 3 days | ||
|
SET SCREW | WR01X11014 | 115 | 3 days | ||
|
DOOR FOAM ASM FZ BOWED | WR78X26296 | WR78X37412 | 311 | 11 days | |
|
GASKET FZ DGY ES | WR14X10376 | WR14X36194 | 312 | 11 days | |
|
ARC HANDLE ASM FZ | WR12X23646 | 313 | 11 days | ||
|
CAM VERT ADJUSTMENT | WR02X13627 | 315 | 11 days | ||
|
SCR 1/4-20 GX TRT 7/8 S | WR01X11010 | 316 | 11 days | ||
|
SCR 1/4-20 HXW 7/8 S | WR01X11049 | 317 | 3 days | ||
|
BRACKET DOOR FZ RH | WR02X25185 | 318 | 11 days | ||
|
BRACKET DOOR FZ LH | WR02X25184 | WR02X36886 | 319 | 11 days | |
|
SCR1/4-20 HXW 3/4S | WR01X11011 | 327 | 3 days | ||
|
SCR 10-32 B RNS .353 S | WR01X11044 | 89 | 3 days |
