Model# GDT655SMJ2ES

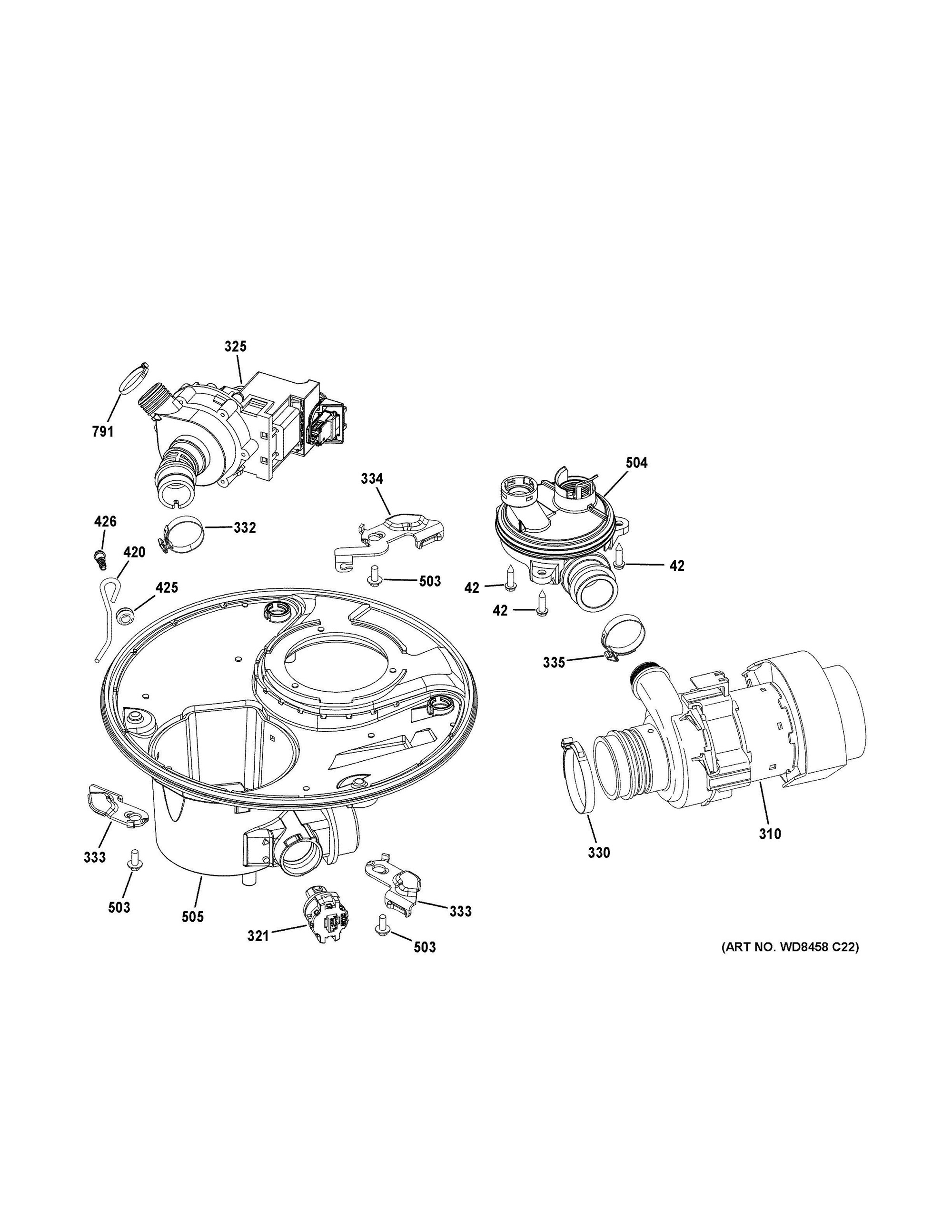

The image and part list below are associated with the component: SUMP MOTOR MECHANISM:
For Support or Ordering By Phone,
Call (800) 816-0715 Mon–Fri 8 am to 9 pm, Sat 8 am to 3 pm EST
| Description | Part# | Substitution# | Diagram Reference | ETA | ||
|---|---|---|---|---|---|---|
|
PUMP WASH MAIN ASM | WD26X22826 | WD26X23258 | 310 | 11 days | |
|
SENSOR TURBIDITY ASM | WD21X22830 | 321 | 11 days | ||
|
PUMP DRAIN ASM | WD26X21697 | WD19X25187 | 325 | 11 days | |
|
CLAMP | WD01X10571 | WD35X10382 | 330 | 3 days | |
|
|
CLAMP | WD01X10573 | WD35X10382 | 332 | 3 days | |
|
LATCH CAM | WD01X10632 | 333 | 11 days | ||
|
LATCH CAM | WD01X10575 | 334 | 11 days | ||
|
|
CLAMP | WD01X10572 | WD35X10382 | 335 | 3 days | |
|
SCR10 - 16 AB HXW 3/4 SS | WD02X22736 | 42 | 11 days | ||
|
HANGER DRAIN PUMP | WD01X10579 | WD01X25218 | 420 | 11 days | |
|
GROMMET | WD01X10101 | 425 | 3 days | ||
|
SCR 10-18 X 5/8 | WD02X22781 | 426 | 11 days | ||
|
SCR 10-16 AB HXW .532 | WB01T10103 | 503 | 3 days | ||
|
DIVERTER PASSIVE MAIN ASM | WD18X21678 | WD19X25278 | 504 | 11 days | |
|
SUMP MANIFOLD | WD18X22782 | 505 | 11 days | ||
|
CLAMP | WD01X10611 | 791 | 3 days |
