Model# GDT530PSD2SS

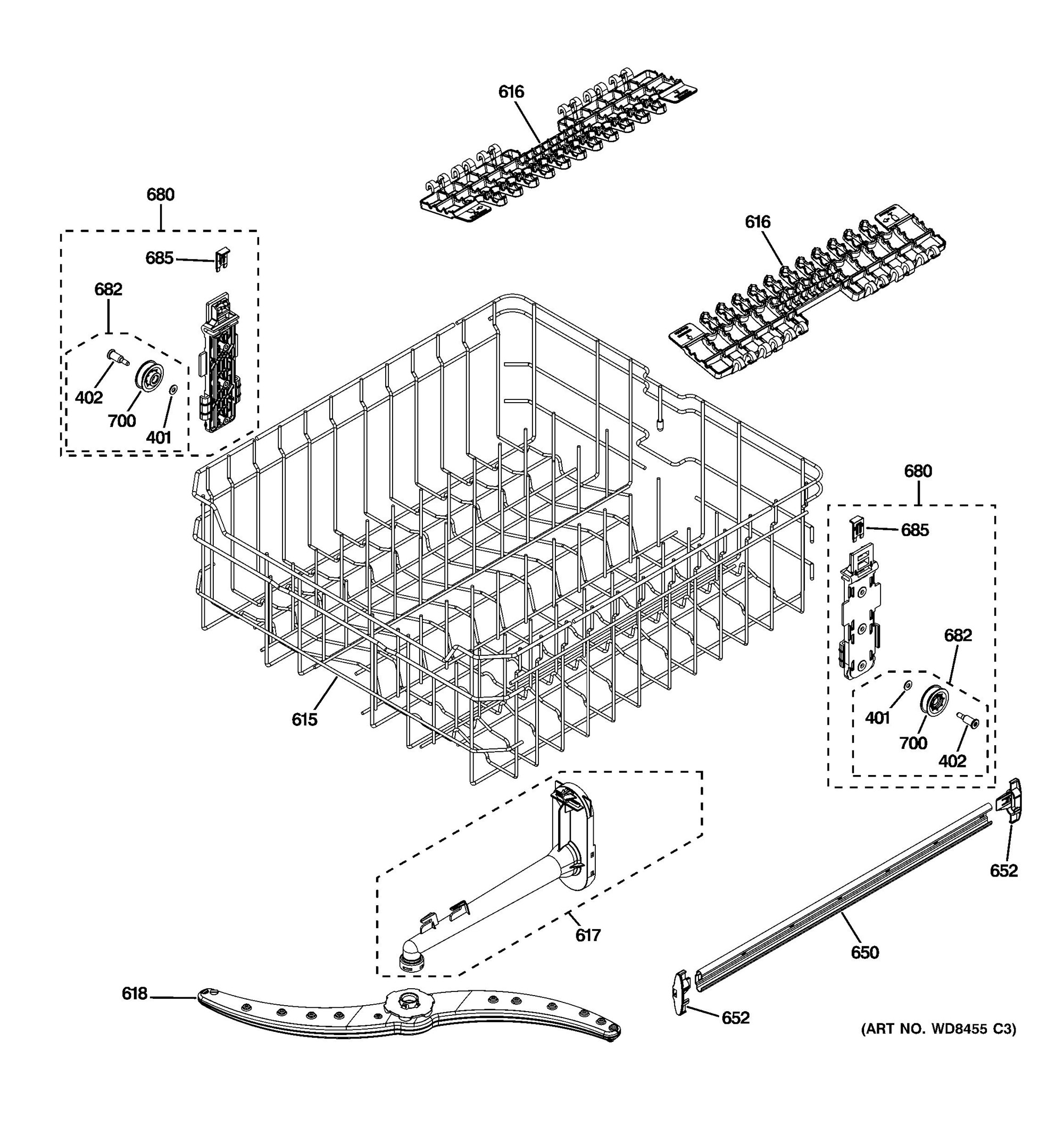

The image and part list below are associated with the component: UPPER RACK ASSEMBLY:
For Support or Ordering By Phone,
Call (800) 816-0715 Mon–Fri 8 am to 9 pm, Sat 8 am to 3 pm EST
| Description | Part# | Substitution# | Diagram Reference | ETA | ||
|---|---|---|---|---|---|---|
|
WASHER ST STL | WD03X0767 | 401 | 11 days | ||
|
SCR 10-16 B 9/20 SS | WD02X10205 | 402 | 11 days | ||
|
RACK UPPER ASM | WD28X10352 | WD28X35779 | 615 | 11 days | |
|
SHELF CUP | WD28X10350 | 616 | 3 days | ||
|
CONDUIT MID ASM | WD22X10094 | 617 | 3 days | ||
|
ARM SPRAY MID ASM | WD22X10089 | WD22X33498 | 618 | 11 days | |
|
SLIDE RACK | WD30X10042 | WD30X27741 | 650 | 11 days | |
|
END CAP | WD12X10426 | 652 | 3 days | ||
|
RACK BRACKET ASM | WD12X10448 | WD12X22801 | 680 | 11 days | |
|
UPP RACK ROLLER STUD ASM | WD12X10431 | 682 | 3 days | ||
|
CLIP BRACKET | WD12X10430 | 685 | 11 days | ||
|
ROLLER UPPER RACK | WD12X10432 | 700 | 11 days |
